3 Product Description
3.5.2 Hydraulically Driven Remote Pressure
Compensator, H1
Pressure pilot valve:
Manually adjustable or proportional pressure valve Q = 1–1.5 l/min.
Pos. Description
1 Safety valve p = p
max.
2 Control piston 2
3 Control piston 1
4 Adjustment of zero stroke
5 Pilot pressure valve
6 Valve spool
7 Orifice
8 p spring
min.
9 Locked adjustment screw
10 Locknut for the adjustment screw
11 Set a pilot valve

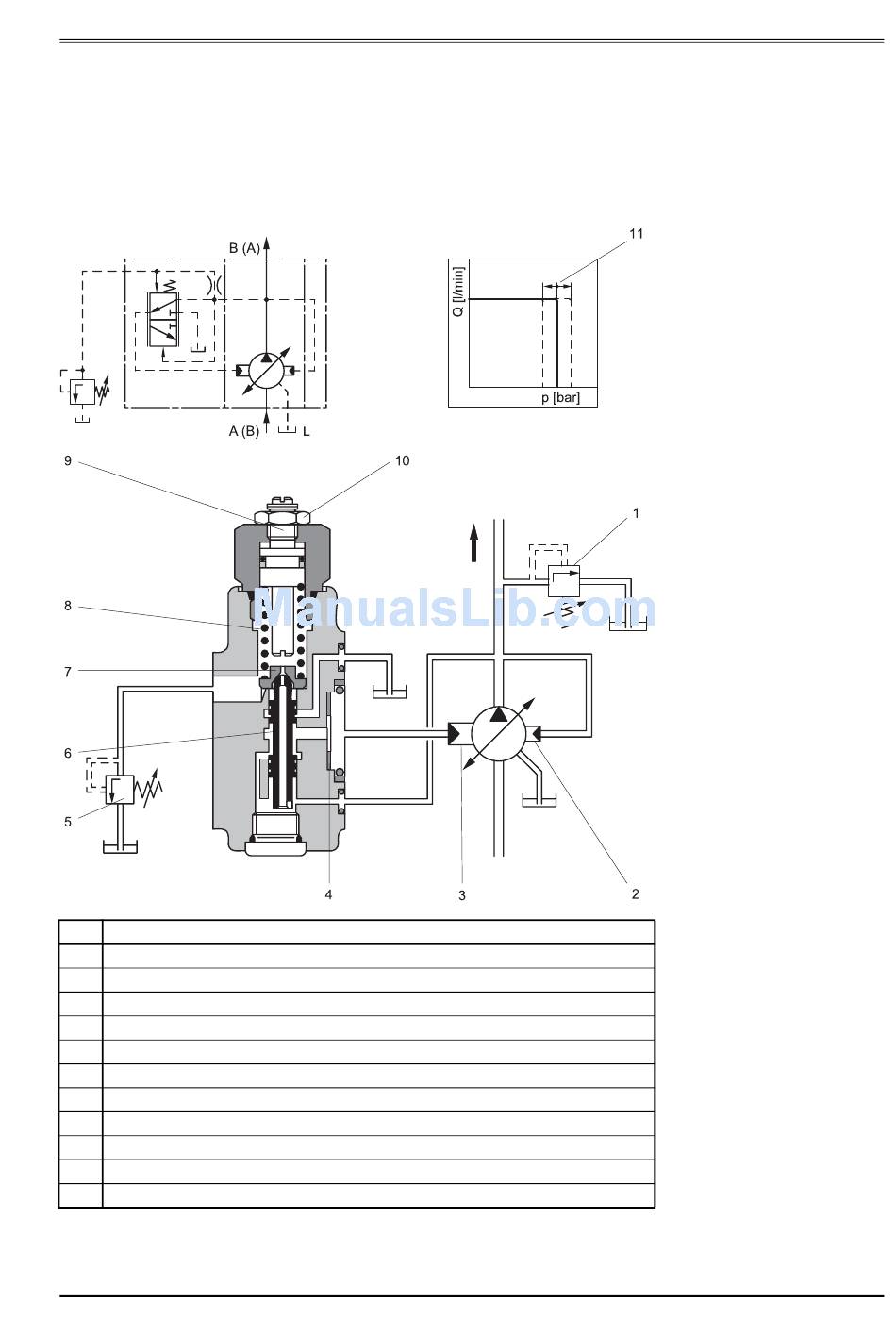

Fig. 6: Hydraulically Driven Remote Pressure Compensator, H1

© 2010 Moog GmbH
+ 30 bar
User Manual RKP-II (CA53461-001; Version 2, January 2010)
Compensator Operation
Hydraulically Driven
Remote Pressure
Compensator, H1
17
