To complete the installation

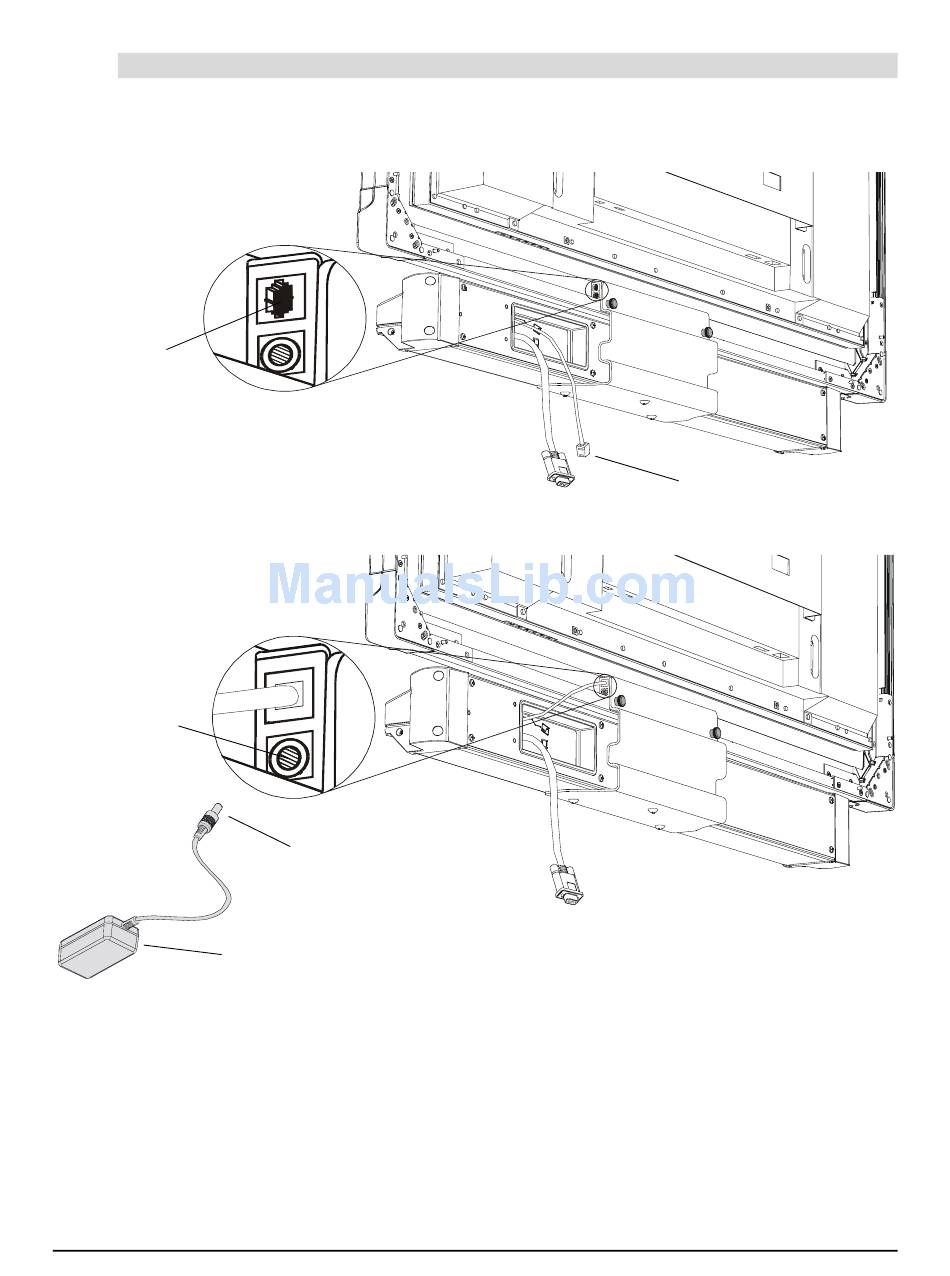

1. Connect the MOD8 cable to the corresponding port on the back of the overlay. You connected
the other end of this cable to either the pen tray or the controller earlier.
Port
NOTE: Your configuration
may have a controller
instead of a pen tray.
2. Connect the power supply connector to the overlay's power port.
Power Port
NOTE: The power supply connector doesn't go all the way in.
99-00667-00 B0
Power Connector
Power Supply
Installing the Interactive Whiteboard
MOD8 Cable
NOTE: Your configuration
may have a controller
instead of a pen tray.
