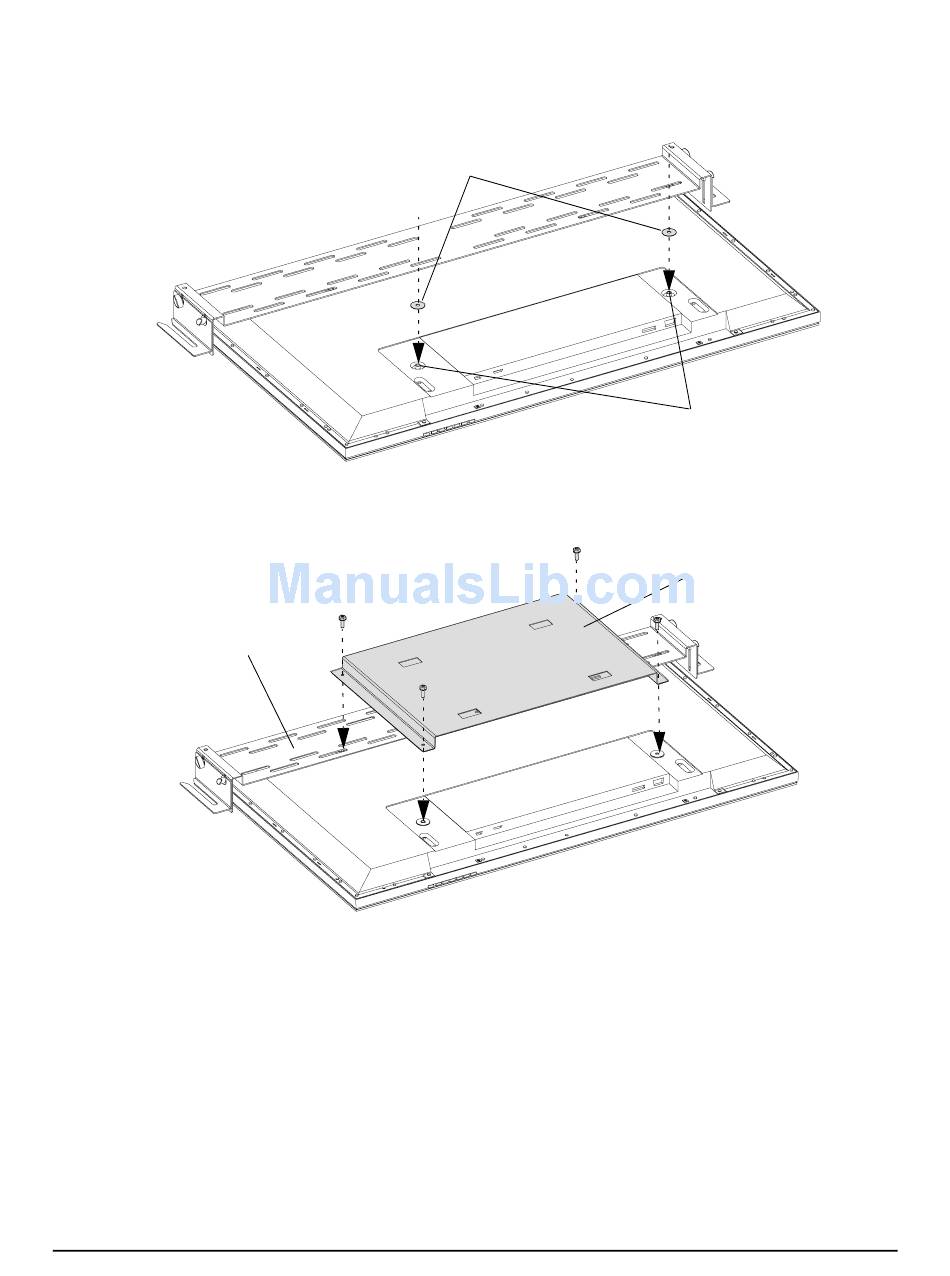

10. Add a supplied washer to each of the exposed adapter plate bolt holes. Don't add washers to
the two holes covered by the mounting bracket. The washers compensate for the mounting
bracket's thickness.
11. Attach the adapter plate over the mounting bracket and the washers using the bolts you
removed in step 3.
Mounting Bracket
NOTE: The bolt type varies between different flat-panel displays. You may have received an
appropriate tool for attaching these bolts to your flat-panel display.
99-00667-00 B0
Washers
Installing the Interactive Whiteboard
Adapter plate
bolt holes
Adapter Plate
11
