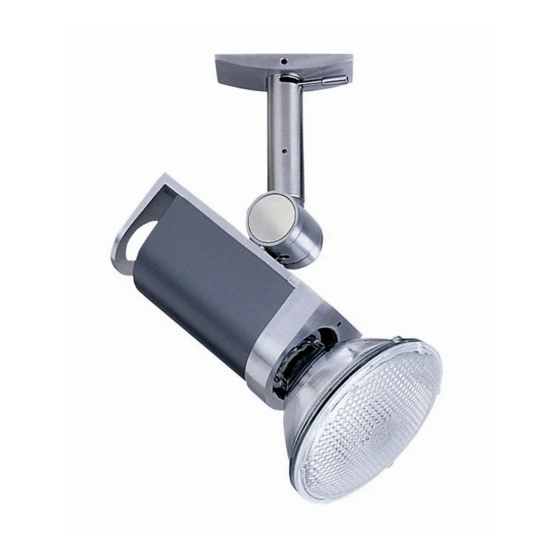

Lightolier Lytespan 8701 Specification

Page 1 of 2
ø 3/4"
3 9/16"
ø 1 1/8"

Ordering Information

Catalog No. Finishes
8701 WH Matte White
8701 TM Dark Titanium

Features

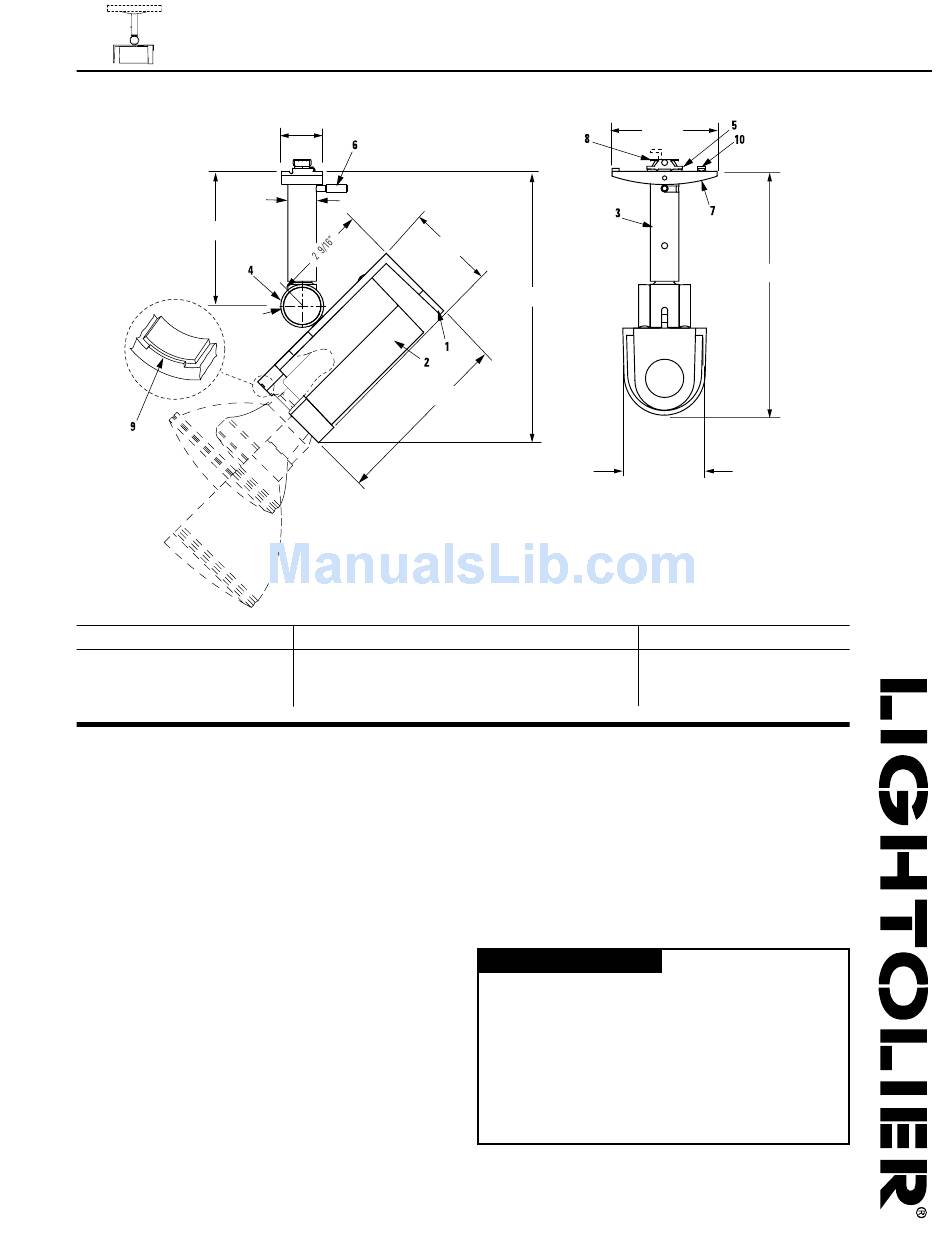

1. Arm: Die-cast aluminum, brushed and clear coated finish.
2. Socket Cover: Injection-molded thermoplastic.
3. Stem: Stainless steel, brushed and clear coated finish, with a permanently
tensioned horizontal rotation stop (315° rotation).
4. Stem Base: Die-cast aluminum, brushed and clear coated finish with a
permanently tensioned 90° vertical rotation stop (0° to 90°).
5. Contact Holder: High temperature thermoplastic. Secures fixture
mechanically and makes electrical contact with track.
6. Locking Lever: Nickel-plated steel. For mechanical/electrical connection to
track.
7. Track Adapter: Die-cast aluminum, brushed and clear coated finish;
attaches to track.
8. Moveable Brass Contact: Extends for 2nd circuit in two circuit Lytespan
track systems.
9. Embossed Keyway: For attachment of optional shades.
10. Ground Spring: Grounds fixture to track.
11. Hot Aiming Handle: Opening in arm provided to aim fixture while it is on.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads.
Input Voltage: 120V, 60Hz
Dimming: Fixture may be used on a track with a dimmer. Consult the dimmer
manufacturer for correct dimmer selection for line voltage Incandescent and
Halogen sources
1 1/16"
2 1/4"
4 3/4"
Track Mountings
All Lytespan Track Systems, Multipoint, Monopoint, Monopoint Pin Up,
Monopoint Weighted Base, Clamp On Monopoint, Extension Wands,
& Sloped Ceiling Adapter. (DOES NOT MOUNT ON PROSPEC
Lytespan ®
Metallics
2 3/4"
7 1/8"
2 3/16"
Lamps
PAR16 through PAR38 250W Max.
PAR30 through PAR38IR 100W Max.
® TRACK). PAR38 Cool Beam 150W Max.

Options and Accessories

Accepts Metallics TM PAR20, 30, & 38 Dome Shades (8727, 8737, 8747),
Metallics TM PAR20, 30, & 38 Barndoor Shades (8725, 8735, 8745), Metallics
Par-Tech ® PAR20, 30, & 38 Ring Shades (8228, 8238, 8248), & Metallics
Par-Tech ® PAR30 Bezel Shade (8237A).
Finish
Feature number 2 painted in White or Titanium. Other external components are
brushed metal with protective clear coat.

Labels

UL, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
