Lightolier Calculite ProSpec PA4A1175 Specification

Page 1 of 2

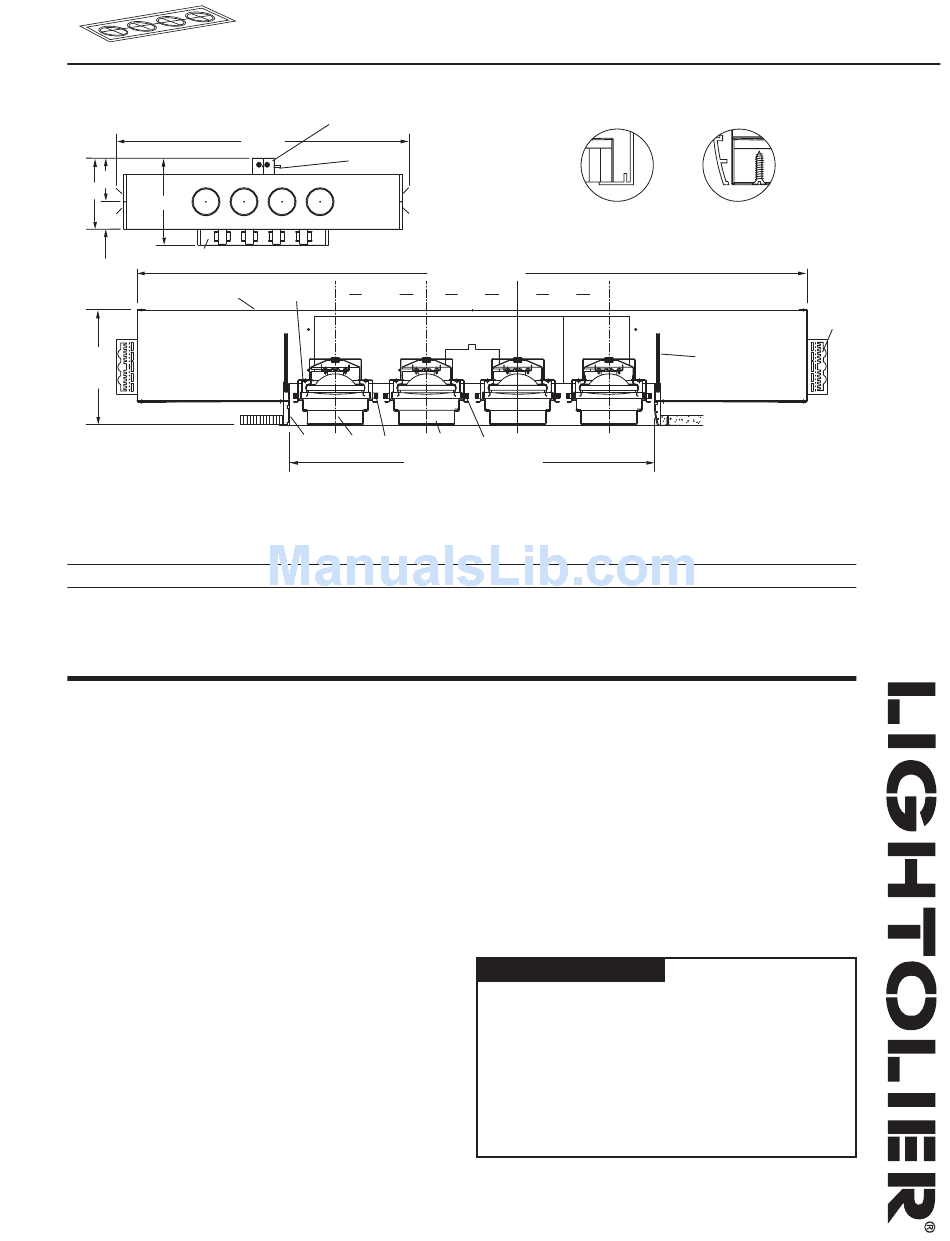

Top View
8"
13"
16"
5"
13
6
8 3/4"
Depth
Ceiling Cut: 29 1/16" L x 8 3/16" W
Ordering Information: AR 111 Series A
Cat. No. Lamp
PA4A117EBL (4) 75W AR 111
PA4A117EWL
(4) 75W AR 111
PA4A117EBTL
(4) 75W AR 111
PA4A117EWTL (4) 75W AR 111
Add a "1" for 120v or "2" for 277v at the end of the catalog number for voltage

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Media Cartridge: Allows convenient loading and removal of up to two
accessories (including lamp cover glass; lamp cover glass may be replaced
with solid glass accessory). Easily installed and removed for lamping with a
simple twisting motion. Constructed of diecast aluminum.
3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional
shielding and can be easily removed.
4. Adjustable Ring: Allows 360° horizontal and 30° (on width) and 40° (on
length) vertical adjustment.
5. Tortiontite Spring: For easy installation of aperture frame.
6. Housing: Die formed 22 ga. steel. Finish: Black.
7. Mounting Brackets: Adjustable vertically from outside of housing.
8. Thermal Protector: Meets NEC, UL , and CSA requirements.
9. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from
below.
10. Lamp and Accessory Support: .032" steel, flared for easy entry of Media
Cartridge.
11. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
12. Lamp Guard: Heat resistant clear glass. Lamp manufacturers requirement.
13. Transformer Housing: Die formed 18 ga. steel.

Electrical

Electronic Transformers: Offer reliable operation and are accessible from
below for servicing. 12V Secondary.
Dimming Controls: Use only dimmers specifically designed for use
withelectronic transformers. Low Voltage fixtures may produce audible
sound when used with dimmers, which may be objectionable in acoustically
critical areas.
Calculite ProSpec
®
9
54 1/4"
8
7"
10 > <
<
O.C.
1
3
2 11, 12
PA4A117EBL = (Flanged) Black/White
PA4A117EWL = (Flanged) White
Add a "1" for 120v or "2" for 277v at the end of the catalog number for voltage
Linear Downlight
®
Flanged
51 1/2" L X 7" W
7" 7"
>
> <
O.C. O.C.
4
28" L X 7" W
PA4A117EBTL = (Trimless) Black
PA4A117EWTL = (Trimless) White
Ceiling Trim
Overlap
Overlap
Trimless
Trimless
Electrical (continued)
UL/cUL listed for through branch circuit wiring with maximum of (8) no. 2 AWG
90°C.

Finish

All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 4 3/4" dia. series, filters, lenses, screens and louvers. (2)
accessories maximum, including lamp cover glass. Lamp guard glass may be
replaced with solid glass accessory.

Labels

UL/cUL (Suitable for Damp Location), I B E W
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • C0306
