Lightolier Calculite ProSpec PA3P3810 Specification

Page 1 of 2

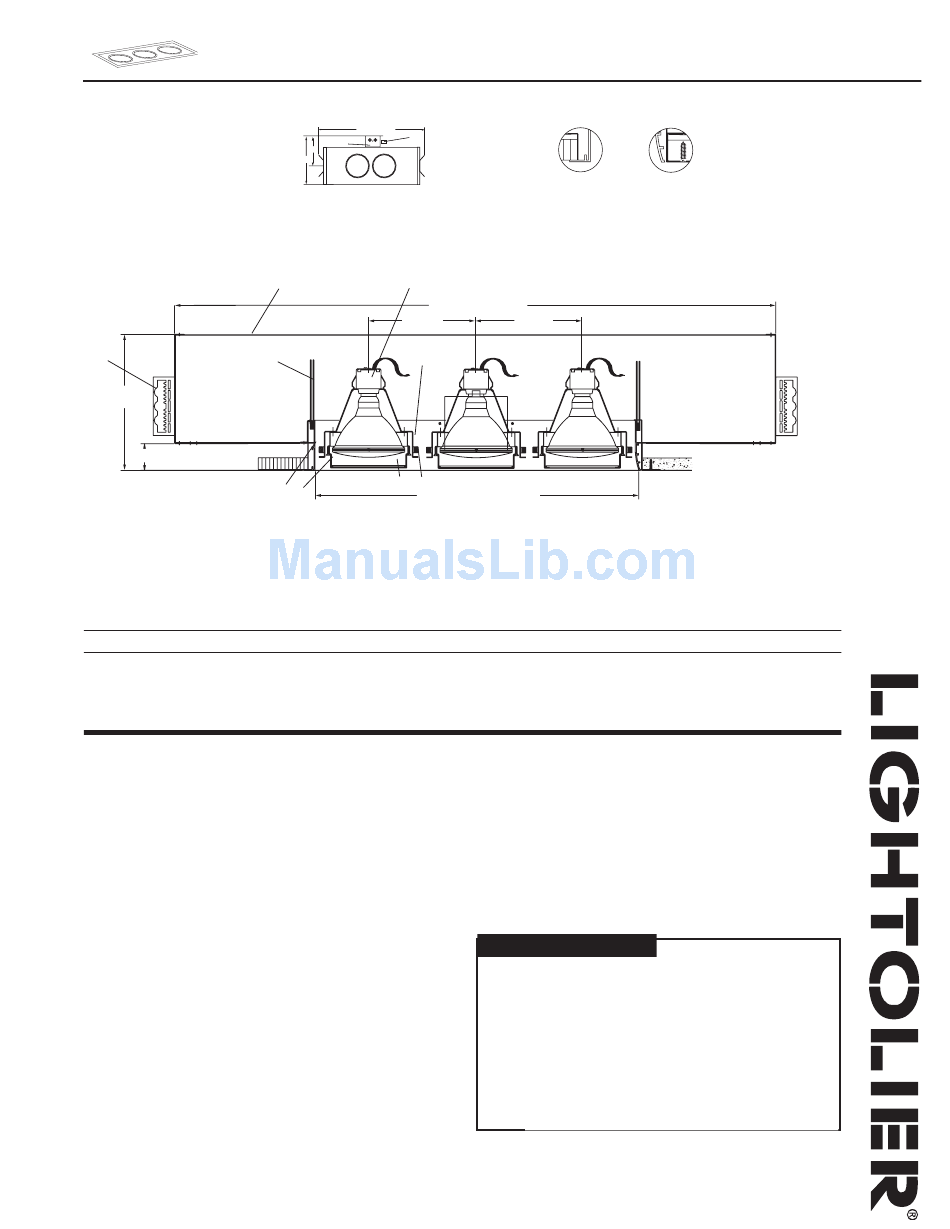

TOP VIEW
6
8 3/4"
Cut-out Dims.
1 3/4"
Ceiling Cutout: 22 1/16" L x 8 3/16" W
Ordering Information: PAR38 Series B
Cat. No. Lamp
PB3P3810BL (2) 100W PAR38
PB3P3810WL (2) 100W PAR38
PB3P3810BTL (2) 100W PAR38
PB3P3810WTL (2) 100W PAR38
Features
1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Media Cartridge: Allows convenient loading and removal of one accessory.
Easily installed and removed for lamping with a simple twisting motion.
Constructed of die formed aluminum.
3. Adjustable Ring: Allows 360° horizontal and 30°, max. 45° (on length); 40°
(on width) vertical adjustment.
4. Tortiontite Spring: For easy installation of aperture frame.
5. Housing: Die formed 22 ga. steel. Finish: Black
6. Mounting Brackets: Adjustable vertically from outside of housing.
7. Thermal Protector: Meets NEC, UL, and CSA requirements.
8. Lampholder: Porcelain medium based; nickel plated screw shell.
Prewired with #18 SF-1 leads to junction box.
9. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from
below.
10. Lamp and Accessory Support: .032" steel, flared for easy entry of Media
Cartridge.
11. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
Electrical
UL/cUL listed for through branch circuit wiring with maximum of (8) no. 12 AWG,
90°C.
Calculite ® ProSpec ® Linear Downlight
30-1/4"
7
9
8"
13"
8
5
39 1/2"L X 10"W
7" OC
4 10
11 3
1
2
21" L X 7" W Opening
PB3P3810BL = (Flanged) Black/White
PB3P3810WL = (Flanged) White
FLANGED
7" OC
PB3P3810BTL = (Trimless) Black
PB3P3810WTL = (Trimless) White
Ceiling Trim Aperture Finish
Overlap Black with White Flange
Overlap White with White Flange
Trimless Black
Trimless White
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 4 3/4" dia. series, filters, lenses, screens, and louvers (1) max.
Label
UL/cUL (Suitable for Damp Location), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Thomas Group LLC (Lightolier Division) • B0711
PB3P3810
3 Light PAR38 Series B
TRIMLESS
Type:
www.lightolier.com
