Lightolier Calculite ProSpec PA3A1175 Specification

Page 1 of 2

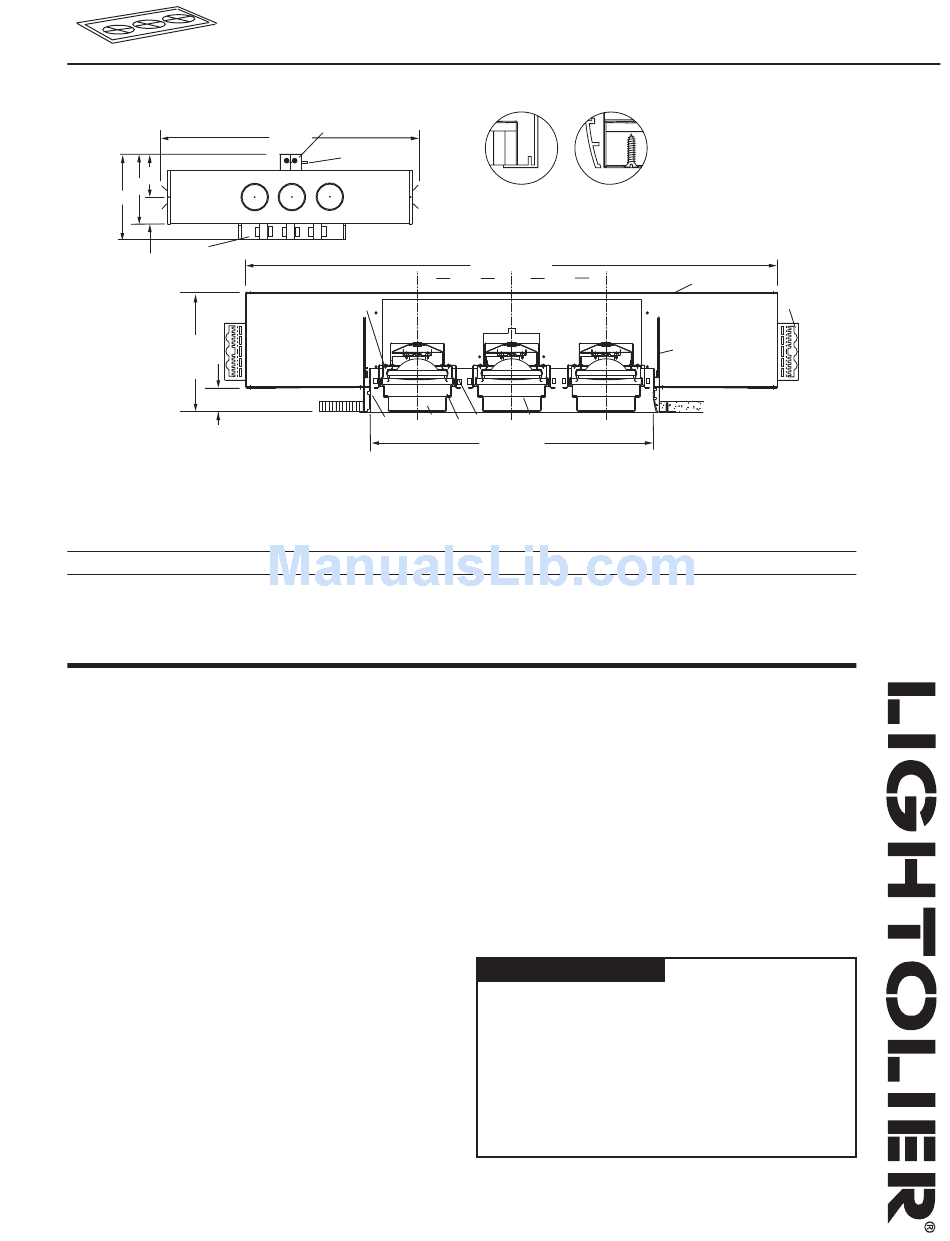

Top View
8"
13"
16"
5"
13
8 3/4"
Depth
1 3/4"
Ceiling Cutout: 22 1/16" L x 8 3/16" W
Ordering Information: AR 111 Series A
Cat. No. Lamp
PA3A117EBL (3) 75W AR 111
PA3A117EWL (3) 75W AR 111
PA3A117EBTL (3) 75W AR 111
PA3A117EWTL (3) 75W AR 111
Add a "1" for 120v or "2" for 277v at the end of the catalog number for voltage

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Media Cartridge: Allows convenient loading and removal of up to two
accessories (including lamp cover glass; lamp cover glass may be replaced
with solid glass accessory). Easily installed and removed for lamping with a
simple twisting motion. Constructed of diecast aluminum.
3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional
shielding and can be easily removed.
4. Adjustable Ring: Allows 360° horizontal and 30° (on width) and 40° (on
length) vertical adjustment.
5. Tortiontite Spring: For easy installation of aperture frame.
6. Housing: Die formed 22 ga. steel. Finish: Black.
7. Mounting Brackets: Adjustable vertically from outside of housing.
8. Thermal Protector: Meets NEC, UL , and CSA requirements.
9. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from
below.
10. Lamp and Accessory Support: .032" steel, flared for easy entry of Media
Cartridge.
11. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.
12. Lamp Guard: Heat resistant clear glass. Lamp manufacturers requirement.
13. Transformer Housing: Die formed 18 ga. steel.

Electrical

Electronic Transformers: Offer reliable operation and are accessible from
below for servicing. 12V Secondary.
Dimming Controls: Use only dimmers specifically designed for use with
electronic transformers. Low Voltage fixtures may produce audible sound when
used with dimmers, which may be objectionable in acoustically critical areas.
Calculite ProSpec
®
9
42 1/4"
8
<
10
1
PA3A117EBL = (Flanged) Black/White
PA3A117EWL = (Flanged) White
Add a "1" for 120v or "2" for 277v at the end of the catalog number for voltage
Linear Downlight
®
Trimless
Flanged
39 1/2" L X 10" W
7"
7"
> < >
O.C.
O.C.
2 4
11,12
21" L X 7" W
PA3A117EBTL = (Trimless) Black
PA3A117EWTL = (Trimless) White
Ceiling Trim
Overlap
Overlap
Trimless
Trimless
Electrical (continued)
UL/cUL listed for through branch circuit wiring with maximum of (8) no. 2 AWG
90°C.
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 4 3/4" dia. series, filters, lenses, screens and louvers. (2)
accessories maximum, including lamp cover glass. Lamp guard glass may be
replaced with solid glass accessory.

Labels

UL/cUL (Suitable for Damp Location), I B E W
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
