Lightolier ProSpec 26383W Specification

Page  of 2
1
2
3
3 /4"
4
Fixture MOL =  5/8"
Catalog No. Finishes
26383W WH Matte White
26383W BK Matte Black
Features

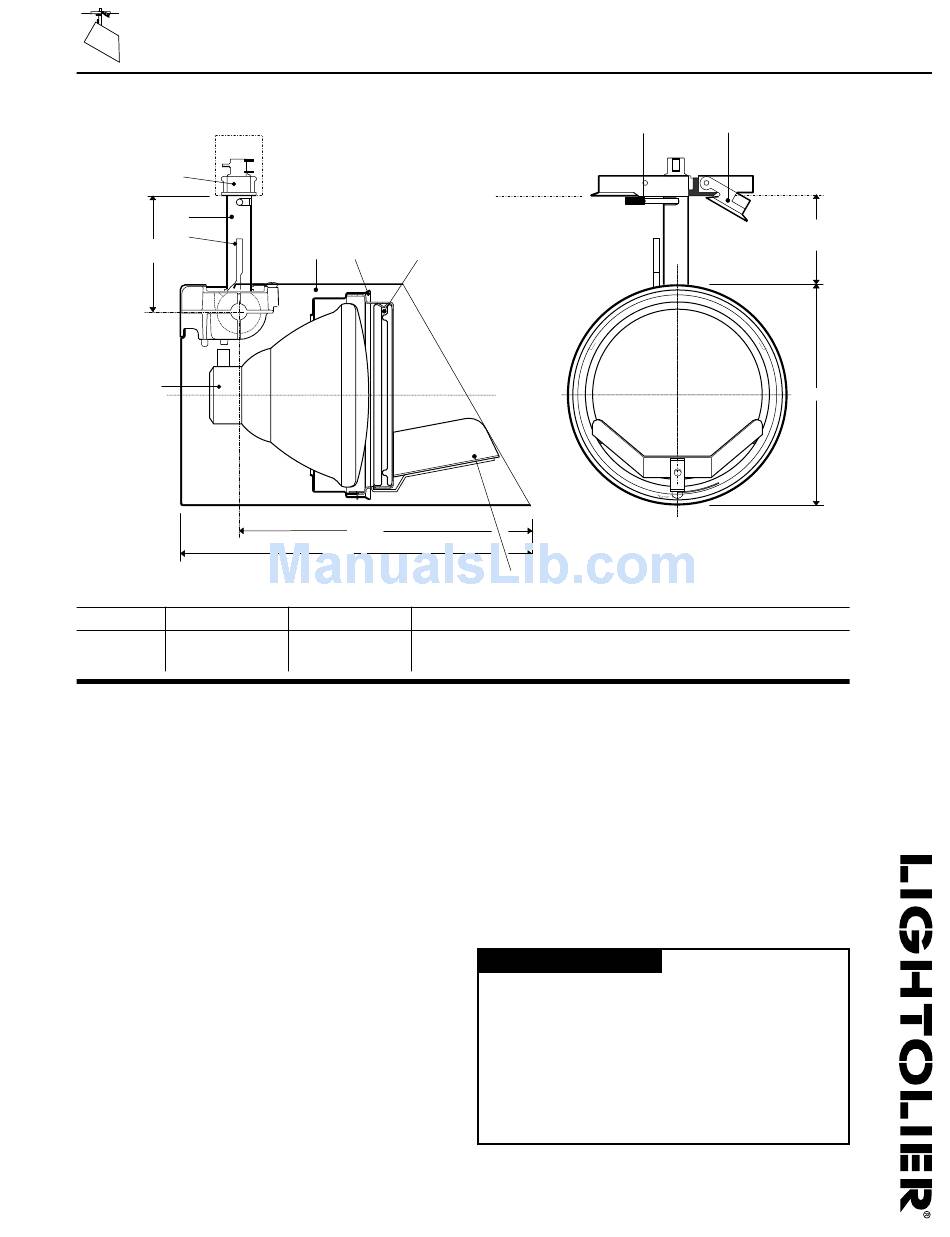

1. Track attachment fitting: Die-cast aluminum with separate mechanical
and electrical functions. Fitting cannot be engaged or disengaged while
fixture is powered. Polarity is not a concern with ProSpec track because of
its symmetrical positioning of circuits within the track, adapters are reversed
to access one or the other circuits.
2. Stem: 5 /8" O.D. .049" wall, stainless steel.
3. Locking feature: Die-cast aluminum mechanism permits the locking of the
horizontal and vertical positions simultaneously by clamping jaws. When
the stainless steel braking lever is released, the horizontal and vertical func-
tions remain fully tensioned to hold aiming positions. Adjustment range is:
Horizontal 0-340°; Vertical 0° (NADIR) - 90°.
4. Lampholder: Porcelain, medium side prong connector #8 ga. braided SF -
leads.
5. Housing: 20 ga. (.036) steel.
6. Lamp and accessory support: .032 steel, flared for easy entry of
accessory cartridge, matte black finish.
7. Kick reflector assembly: Holds one accessory behind the spread lens;
example: color filter, UV filter, Heat filter. Assembly is removable from front
using a twist and lock motion.
8. Reflector: Embossed texture anodized aluminum; reflects light towards
upper portion of wall and ceiling line.
9. Lever: Energizes fixture electrically by 90° rotation.
10. Clamping tabs: Expands or releases gripper springs from track ledge; grip-
per springs hold attachment fitting securely within track.
5 6 7
7 3/8"
8 7/8"
Mountings Lamps
ProSpec Track PAR38/3 50W Max.
TM
Systems
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 4 3/4" dia. series. Filters, lenses, screens and louvers. 50W max
when using accessories.
Electrical
Electrical components: Polycarbonate moldings.
Contacts: Heavy gauge /2 hard brass developed for Lightolier's "U"
shaped track conductors.
Labels
UL; I.B.E.W.
Lightolier
63 Airport Road, Fall River, MA 02720 • (508) 679-83 • Fax (508) 674-470
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • A206
ProSpec Track Lighting
TM
9
ProSpec Track System
8
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
a Genlyte company
26383W
Wall Wash Cylinder PAR38/3
