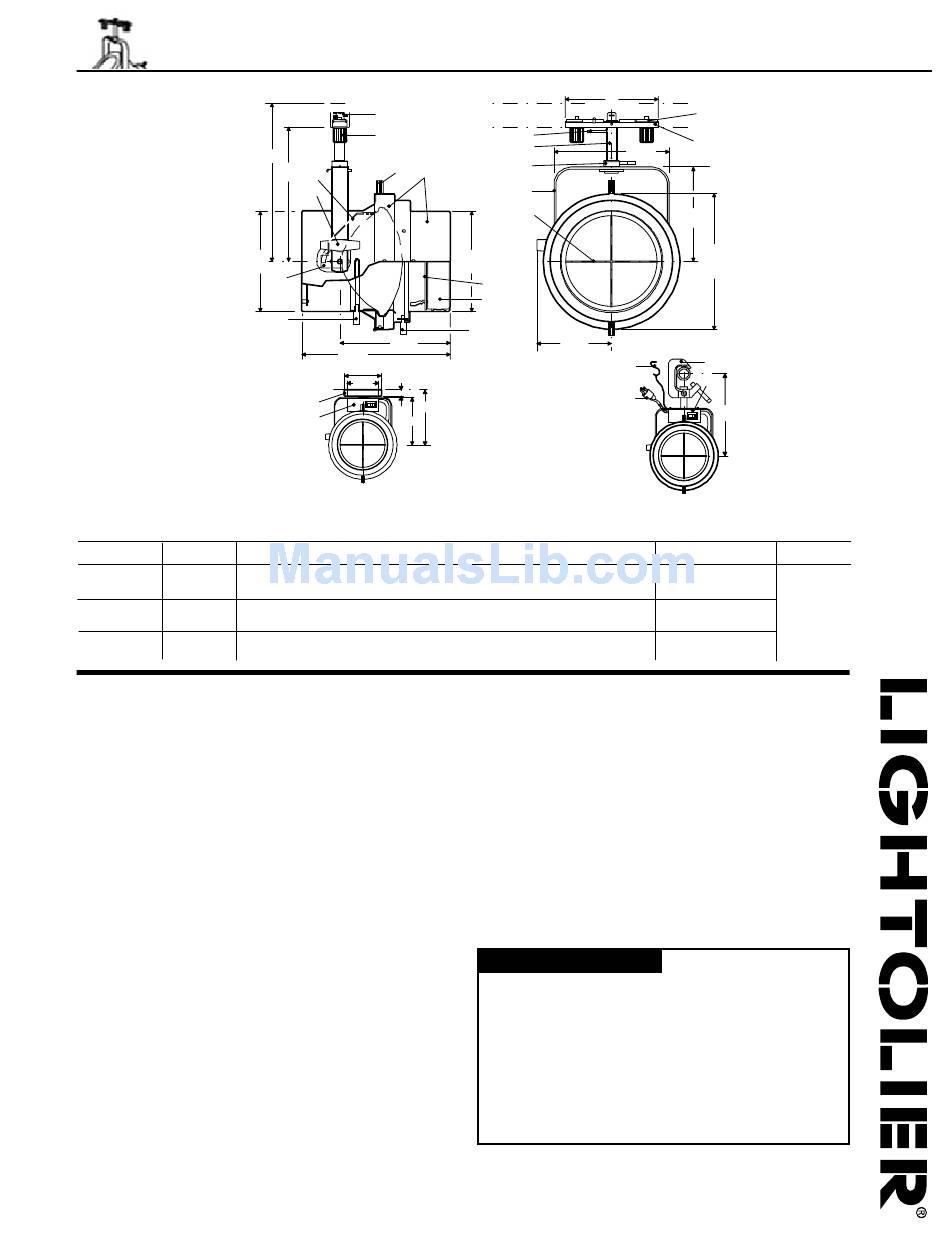

Lightolier ProSpec 26056 Specification

Page 1 of 2
6-1/2
DIA.
19. Canopy: .047 thick
steel.
20. Switch: Tungsten
rated switch allows
fixture to be
switched on or off
without disconnect-
ing wires.
Canopy Mount 26056WHCY/26056BKCY
Ordering Information
Catalog No. Finishes Mountings
26056 WH Matte White ProSpec
26056 BK Matte Black Ceiling, Vertical Wall and Horizontal Wall
26056 WHCY Matte White Canopy mounted over a 4" Octagon Junction Box, Ceiling or Wall
26056 BKCY Matte Black
(or other electrical box with 3.5" mounting centers. 4 7/8" dia. fixture canopy must cover J-box)
26056 WHPC Matte White Pipe Clamp: Fits Round Pipes. 3/4" to 1/12" nominal pipe size. Horizontal or Vertical pipe. 7.5 lbs. (w/lamp,
26056 BKPC Matte Black Note: 3/4" nominal pipe measures 1.05" O.D., 1 1/2" nominal pipe measures 1.90" O.D.
Features
1. Track Attachment Fitting: Machined aluminum. Polarity is not a concern
with ProSpec track because of its symmetrical positioning of circuits within
the track, adapter is reversed to access one or the other circuit.
2. Steel Clamping Toggles: 1/8" thick plated steel with 1/4 - 20 thread
secures fixture mechanically to track.
3. Electrical Post: .20 x .032 thick brass contacts enclosed in a high tempera-
ture thermoplastic insulator.
4. Clamping Knobs: Rotation of clamping knobs secures steel clamping tog-
gles to track.
5. Lever: Solid steel. Energizes fixture electrically by 90° rotation.
6. Yoke: 1/8" thick x 1" wide solid steel.
7. Housing: 1/16" thick aluminum.
8. Lamp Adjustment Knob: Knurled steel. Can be moved in housing slot to
rotate lamp 180°. Knob is tightened to lock lamp in desired position.
9. Accessory Locking Knob: Knurled steel. Locks accessory cartridge in
desired position after adjustments.
10. Lamp Access Knob: Knurled steel. Locks front housing to fixture.
Loosening provides access for adding accessories and lamp replacement.
11. Stem: 5/8" O.D. x .048" wall steel.
12. Accessory Cartridge: Can be rotated 360° and locked into position.
13. Lamp Guard: Tempered clear glass. Required for safety.
14. Cross Blade: .07" thick x 1 3/8" deep steel blades matte black finish,
removable.
15. Lampholder: High temperature ceramic mogul end prong base with high
temperature #18 gauge fiberglass sleeved wire.
16. Fixture Rotation Knob: High temperature plastic. When loose, allows fix-
ture to be rotated. When tight the fixture is locked into position.
17. Horizontal Lock: Steel collar when tightened locks the fixture in its horizon-
tal position.
18. Lamp Guide: 1/16" thick steel. Ensures lamp is seated properly in fixture.
24. Visual Cutoff: 57° at 0° fixture aiming.
3
4
10-1/4"
10 7
8-5/8"
18
16
15
8
7-1/8"
9-9/16"
4-7/8" Dia.
3/4"
4-1/8"
19
7-1/16
20
6-1/8"
™ Track System
™
ProSpec
6"
ProSpec Track System
5
11
7-7/16"
17
6
14
6-1/2
DIA.
13
12
9
4-7/8"
23
21. Pipe Clamp: Altman 510
22
malleable cast iron clamp.
22. Male Plug: Grounded
parallel blade plug 3' long
cord.
23. Safety Hook: 1/16" dia.
steel cable with ìSî hook
provides additional support
to structure.
Pipe Clamp 26056WHPC/26056BKPC
Finish
All painted finishes are baked enamel.
Options & Accessories
(2) Accessories max. Use 6 1/4" UV, PF, SY, LF, IR, AS, AS7LS and AL7HC plus
6 1/4" color filters.
Electrical
Input to fixture must be 120V rms at 60Hz.
26056PC plugs into grounded parallel blade receptacle.
26056CY fixture wires: 18 ga. stranded SF-1. Supply wire must be rated at least
90°C and min. 6 amps capacity.
Labels
UL, I.B.E.W., Not For Residential Use.
Teflon ® is a registered trademark of E.I. DuPont.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • B0705
26056
Track Lighting
PAR56 Line Voltage
2
1
6-1/8"
8-7/8
Dia.
21
20
10-1/2"
Approx. Wt. Lamps
5.6 lbs. (w/lamp, PAR56
2 lenses & crossblade) 120V Mogul
5.8 lbs. (w/lamp, End Prong
500W max.
2 lenses & crossblade)
(not included)
2 lenses & crossblade)
Type:
www.lightolier.com
