Lightolier ProSpec 26030W Specification

Page 1 of 2
1
2
3
3 1/4"
6
Fixture MOL = 11-1/8"
Ordering Information
Catalog No.
26030W WH
26030W BK
Features

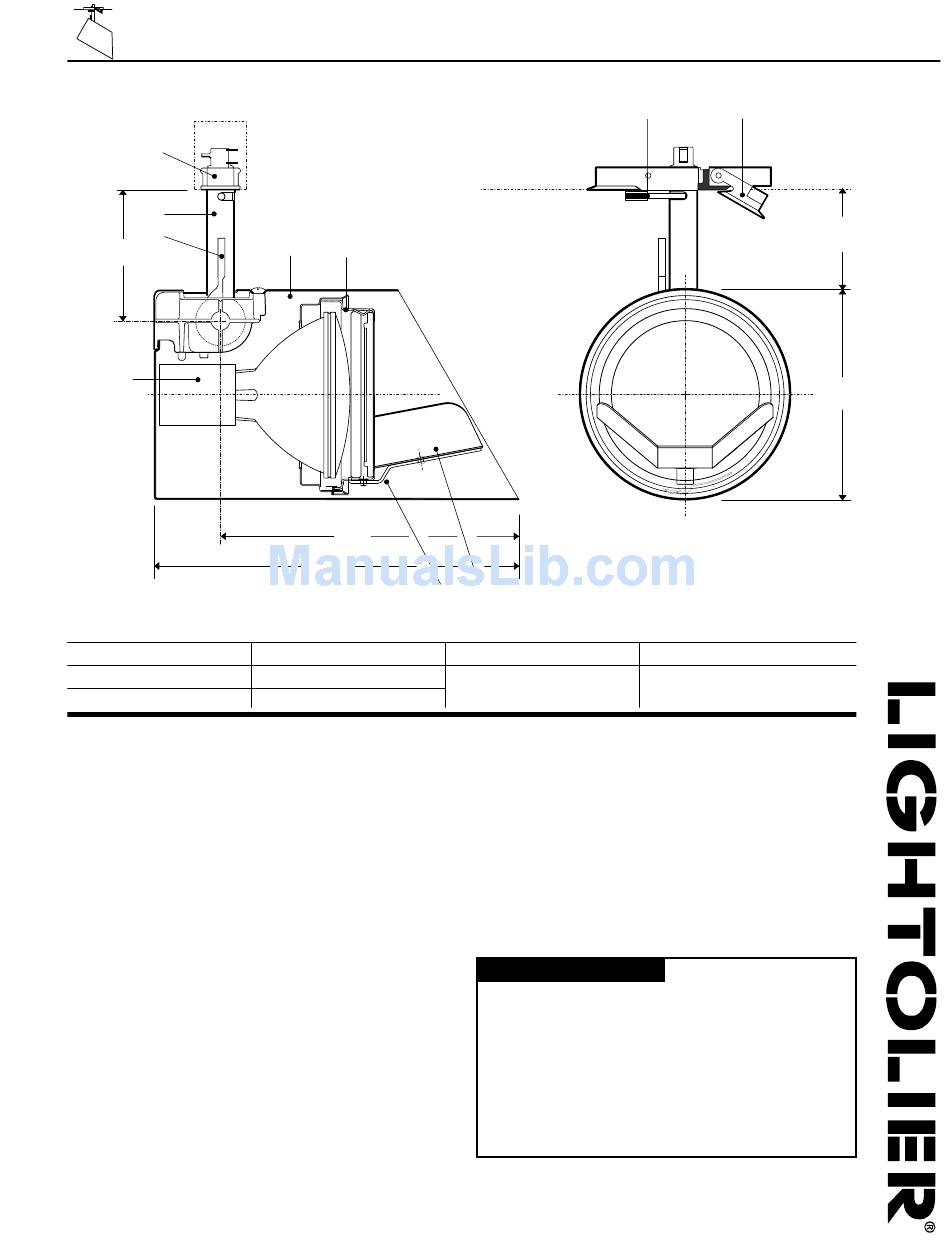

1. Track attachment fitting: die-cast aluminum with separate mechanical and
electrical functions. Fitting cannot be engaged or disengaged while fixture is
powered. Polarity is not a concern with ProSpec track because of its sym-
metrical positioning of circuits within the track, adapters are reversed to
access one or the other circuits.
2. Stem: 5/8" O.D. .049" wall, stainless steel.
3. Locking feature: die-cast aluminum mechanism permits the locking of the
horizontal and vertical positions simultaneously by clamping jaws. When the
stainless steel braking lever is released, the horizontal and vertical functions
remain fully tensioned to hold aiming positions. Adjustment range is:
Horizontal 0-340°; Vertical 0° (NADIR) - 90°.
4. Housing: 20 ga. (.036) steel.
5. Lamp and accessory support: .032 steel, flared for easy entry of accesso-
ry cartridge, matte black finish.
6. Lampholder: porcelain, medium base, nickel plated screw shell, #18 ga.
braided SF-1 leads..
7. Kick reflector assembly: holds one accessory behind the spread lens;
example: color filter, UV filter, Heat filter. Assembly is removable from front
using a twist and lock motion.
8. Kick Reflector: embossed texture anodized aluminum; reflects light
towards upper portion of wall and ceiling line
9. Lever: Energizes fixture electrically by 90° rotation.
10. Clamping tabs: expands or releases gripper springs from track ledge; grip-
per springs hold attachment fitting securely within track.
4
5
6 3/4"
8 1/8"
7
Finishes
Matte White
Matte Black
™
ProSpec Track Lighting
ProSpec Track System
8
Mountings
™
ProSpec Track System
Finish
All painted finishes are powder coated baked enamel.
Options & Accessories
Accessories: 3 / "dia. series. Filters, lenses, screens and louvers.
3
4
Electrical
Electrical components: Polycarbonate moldings.
Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"
shaped track conductors.
Labels
UL, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
26030W
Wall Wash Cylinder PAR30
9 10
4 3/4" Dia.
Lamps
PAR30 75W Max..
Type:
www.lightolier.com
2 1/4"
Stem
