Lightolier Lytecaster 1143 Specification

Page 1 of 2
1
7 3/16"
6 9/16"
7 13/16"
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit
1143
1102P1
Specular Gold
1103R
1100IC
1144
1100AICM
Specular Clear
1100DICM
1100DAICM
1144CD
1104ICX/N
Clear Diffuse
1104IC/N
1104ICR
1104IC/N
1104ICR
Features

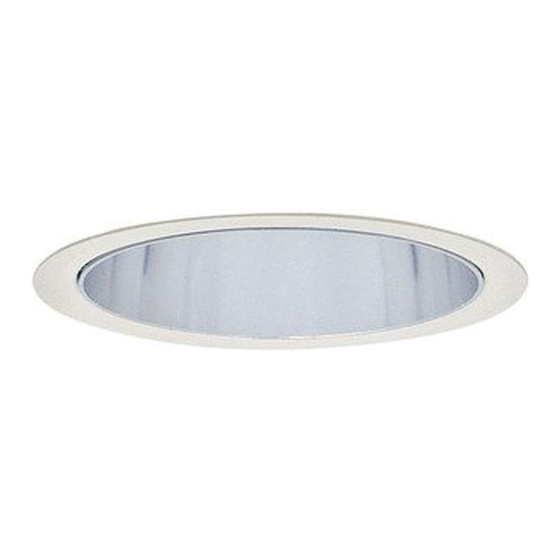

1. Reflector: Hydroformed aluminum, .050" thick (16ga.); specular clear or gold
finish; matte white trim flange.
2. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above and
shown on the right. See Frame-In Kit specification sheets for more details.
Labels
UL (Suitable for Damp Locatins); I.B.E.W.
Lytecaster
2
1" Max.
1143/1102P1
Standard Incandescent
Incandescent
Ceiling Type Lamping
Non-IC 100W A19
Non-IC Remodeler
IC 100W A19
AirSeal IC
®
Deep IC
Deep AirSeal IC
®
AirSeal IC
®
AirSeal IC 75W A19, PAR30
®
IC Remodeler 85W BR30
Non-IC 100W A19
Non-IC Remodeler 85W BR30
75W, PAR30
Recessed Downlighting
®
7 3/16"
1143/1103R
0
Non-IC Remodeler Ring
™
9 1/4"
1143/1100 DEEP IC Series
Incandescent Insulated Ceiling
Height Frame-In Kit Ceiling Type
6 3/4" 1101F18U Series UniFrame
6 3/4" Non-IC
1101F2642U
7 5/16" UniFrame
7 5/16" Series Non-IC
9 1/4"
1104F13 Series IC
9 1/4"
1104F18 Series IC
7 1/4"
1104F26* Series IC
1100FTU Series
7 1/4" Non-IC
7 1/2"
7 1/2" 1100AICMFT AirSeal
®
7 1/2"
1101F18ICU/N Performance IC (1) Triple 18W (GX24q-2)
1101F2642ICU Performance IC (1)Triple 26W (GX24q-2)
1101F2642IUN
1910XFH1 Conversion Kit (1) Quad 13W (GX23-2)
1910XDH1
Conversion Kit (2) Quad 13W (GX23-2)
* Lightolier recommends the use of triple tube lamps.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • H1007
6 3/4" Aperture Shallow Reflector Trim
7 1/2"
1143/1104IC/N
0
™ Convertible
IC/Non-IC
7 1/2"
1143/1104ICR
0
Convertible
™
Remodeler IC/Non-IC
Fluorescent
Lamping
(1) Triple 18W (GX24q-2)
™
(1) Triple 26W (GX24q-3)
™
(1) Quad/Triple 13W (GX24q-1) 7 1/2"
(1) Quad/Triple 18W (GX24q-2) 7 1/2"
(1) Quad/Triple 26W (GX24q-3) 7 1/2"
(1) Triple 26/32W (GX24q-3)
IC (1) Triple 26/32W (GX24q-3)
Type:
www.lightolier.com
1143
Height
6 5/16"
6 5/16"
7 3/16"
6 7/8"
7 1/4"
7 1/4"
7 3/16"
7 3/16"
