Lightolier Lytecaster 1102TH1R Specification

6 3/4 Aperture Low Profile 2 Light 13W Twin Tube Fluorescent Non-IC Remodeler Frame-in Kit
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Cone
1102TH1R HPF 120V 1113TGD
1113TCL
Features

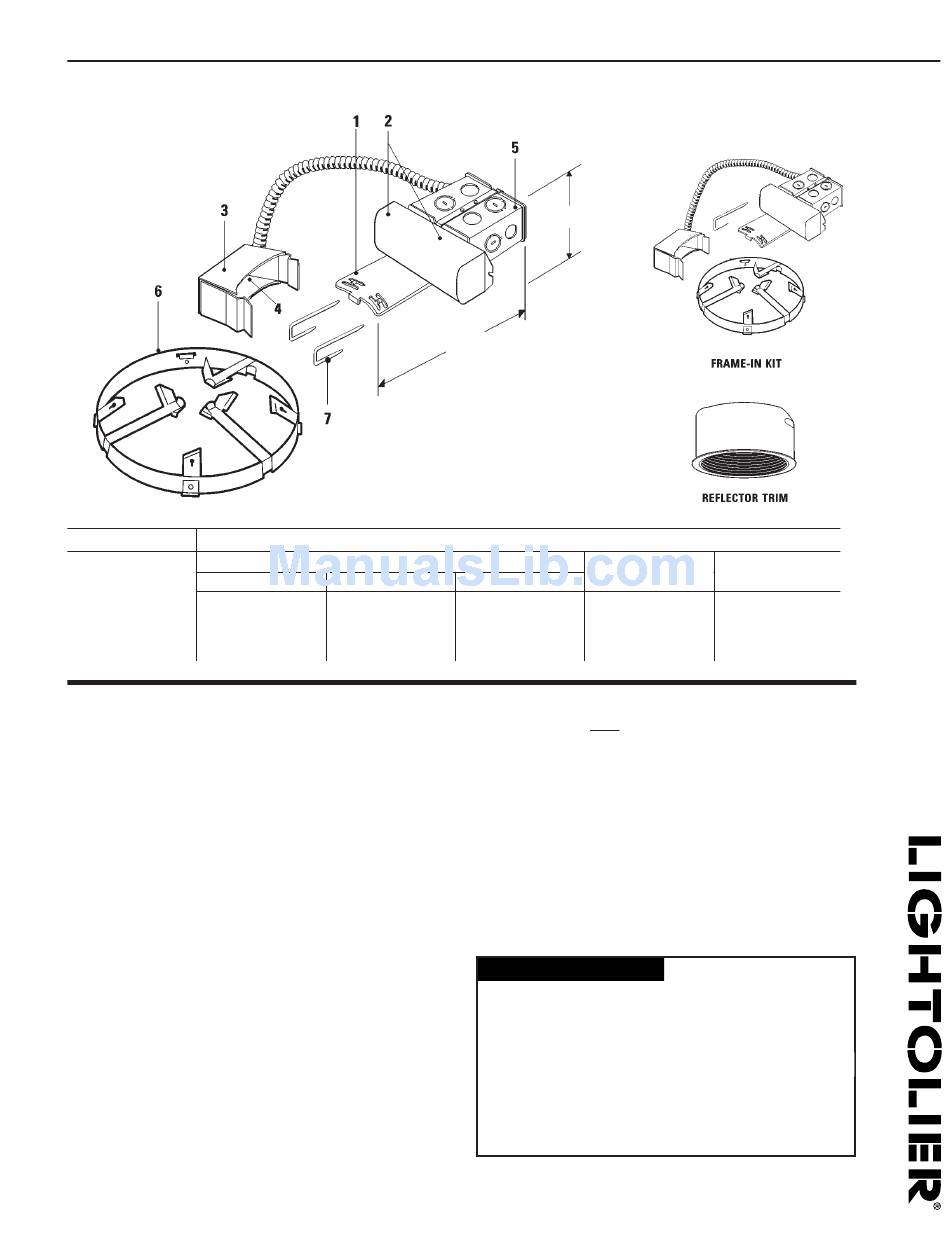

1. Bracket: #18 ga. galvanized steel. Anchor nails are provided to secure J-box
bracket to ceiling. (3) retaining clips mount reflector trim to ceiling.
2. Thermally Protected Ballast: 2 light electromagnetic, encased and potted,
class "P" normal power factor or high power factor. Insulation must be kept 3"
away from fixture sides and wiring compartment and must not be placed
above fixture as to entrap heat.
3. Socket Housing: #22 ga. galvanized steel; snap-in quick assembly for
precise lamp location.
4. Socket: Two-pin, molded thermoplastic ; prewired with #18 AWM leads to
junction box.
5. Junction Box: #14 ga. 4" x 3 1/2" x 2" galvanized steel. Quick release "L"
shaped cover for access to wiring. Integral cable clamps permit attachment of
nonmetallic Romex ® or armored cable without the need for separate
connectors. Rated for min. 75° C supply wire. .
6. Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing
ceilings up to 1 1/2" thick. Attaches securely to any type of ceiling material
without tools using (3) mounting straps provided. Push-in/twist out clips hold
reflector flush to ceiling. Included adhesive backed aperture template..
7. Nail Clips: Secures junction box to ceiling.
