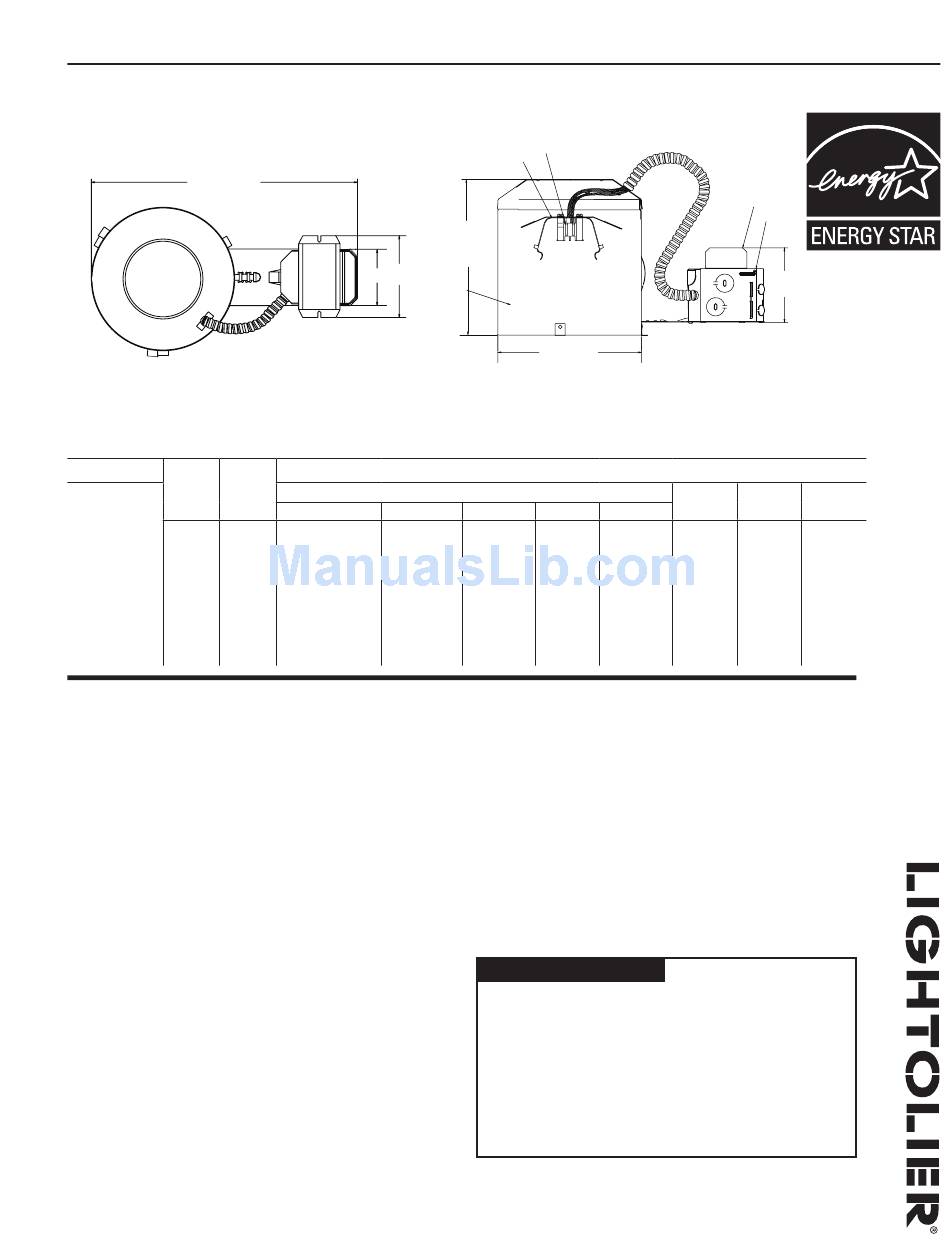

Lightolier Lytecaster 1104F18ESR Specification

Page 1 of 1 6 3/4" Aperture
13 1/8"
DIAMETER
OVERALL
LENGTH
Ceiling Opening 7" diameter
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Voltage Lamp
1104F18ESR 120V 18W
Quad or
Triple
Tube

Features

1. Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal
air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with
Model Energy Code (Section 602.3.3) and Washington State Energy Code
(Section 502.4) and reduces heat loss and condensation in ceiling.
2. Junction Box: 2" X 4 1/2" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized
steel. UL listed for branch circuit wiring supplying connected luminaires.
Integral cable clamps permit attachment of non-metallic (#12 or #14 ga.)
Romex cable without tools or additional connectors.
®
3. Socket Housing: Trim retaining spring secures trim to any height on
housing wall.
4. Socket: (4 Pin,GX24q-2) base, molded thermo-plastic. Pre-wired with #18
AWG leads to junction box.
5. Ballast: Electronic 120V, end of life protected, FCC class "B" consumer
limits, class "A" sound rating. Energy Star
Electrical
Input Watts: 19
Amps: .16
Ballast Factor: 1.0
Power Factor: .97
Lytecaster Recessed Downlighting
®
0
1 Lt 18W Quad/Triple Tube Compact Fluorescent IC Remodeler
®
2 3/4" 3 7/8"
Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight
Anodized Reflector Anodized Cone Satin Cone
1143 1112
1144 1112NM
1144CD 1113
1113BK
1113BKNM
1113CD
1113CDNM
1113NM
1113WH
housing minimizes
®
qualified.
®
* Recommend Triple Tube lamp for
optimal performance.
** Use Triple Tube lamp only.
4
3
7 1/2"
OVERALL
HEIGHT
1
7"
APERTURE
Baffles Basic White
1108 1105 1170M1
1108NM 1105BNM 1171
1110 1105NM
1110NM 1105WH
1176
1176WH
1179M1*
1179WH*
Options & Accessories
AirSeal Kit: LAS56R†
®
(Required for AirSeal installation.)
®
Labels
UL (Type IC Suitable for Damp Locations)
†Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
Romex is a registered trademark of General Cable Industries Inc.
®

Job Information

Job Name:
Cat. No.:
Lamp(s):
Notes:
