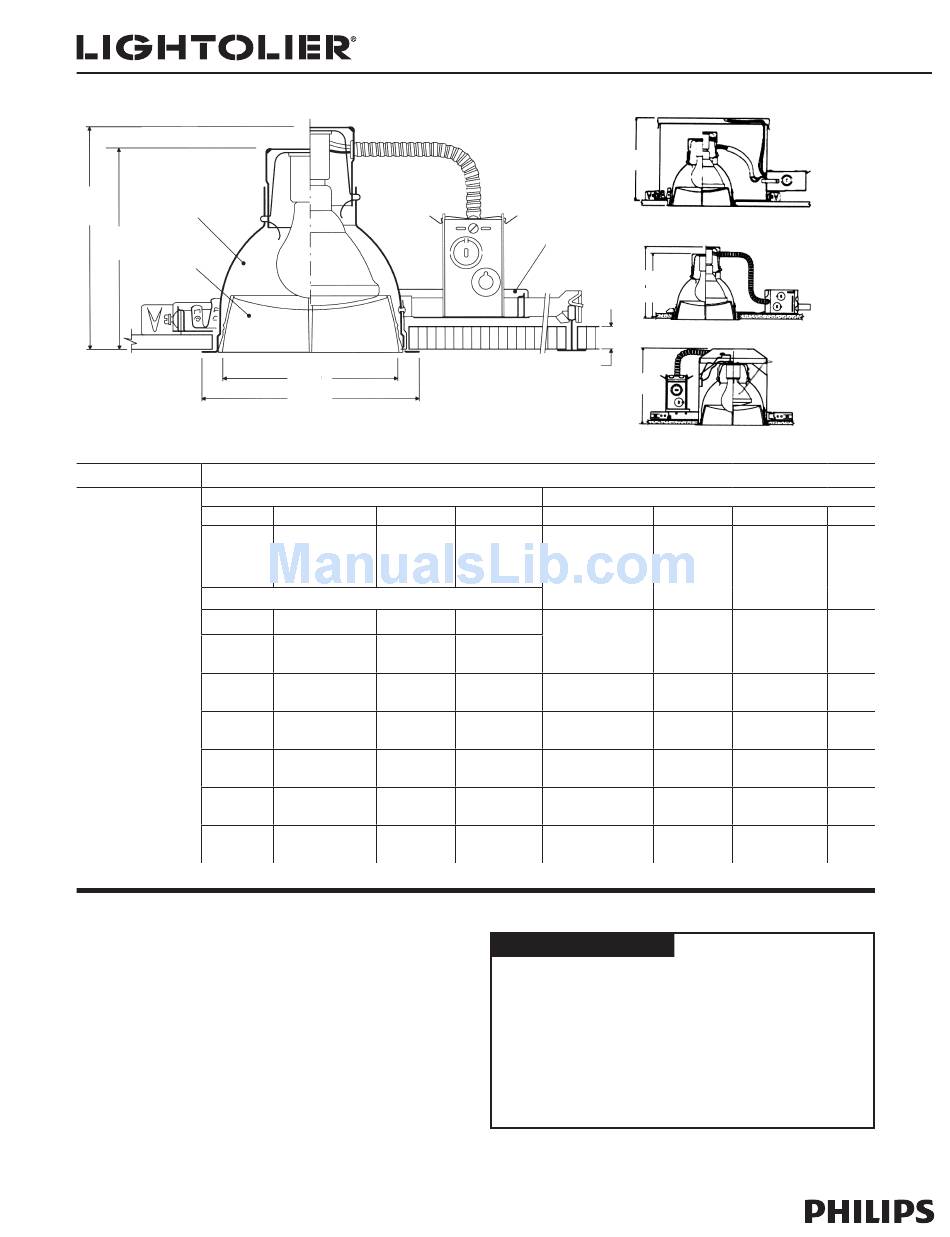

Lightolier Lytecaster 1132 Specification

Page 1 of 2
7 15/16"
1
7 3/16"
2
1132/1102P1 Series
Standard Incandescent
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim
1132
Matte White
Features
1. Reflector: Hydroformed aluminum, 0.040" minimum thickness; Anobrite
(anodic-processed) semi-specular finish for permanent reflectivity; matte
white trim flange.
2. Cross Blade: Die cast aluminum painted matte white or satin aluminum.
3. Frame-In Kit: (1102P1 standard frame shown.) Other frames listed above
and shown around. See Frame-In Kit specification sheets for more details.
Options & Accessories
Retaining Clips:
Extra Wide Flange Trim Ring:
Spread Lens: L56WWLENS - Proprietary spread lens for use with combination
of wall washer optics and LED Frame-In Kits.
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Lightolier is a Philips group brand
6 1/8"
7 3/8"
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
LED
Frame-In Kit Installation Type Lamping
1101LED Non-IC LED
1100LEDREM Non-IC Remodeler LED
Incandescent
Frame-In Kit Installation Type Lamping
1102P1
Non-IC 100W A19
1103R Non-IC Remodeler 150W PAR38
1100IC
IC 60W A19
1100AICM AirSeal IC 75W PAR30
®
1100DICM
Deep IC 60W A19
1100DAICM Deep AirSeal IC 90W PAR38
®
1104ICX/N
AirSeal IC 52W A19
®
75W PAR30
1104IC/N
AirSeal IC 40W A19
®
1104ICR IC Remodeler 50W PAR30
1104IC/N
Non-IC 60W A19
1104ICR Non-IC Remodeler 75W PAR30
1955 - For installing in existing ceiling
1957 - 8 5/8" O.D.
Lytecaster Recessed Downlighting
®

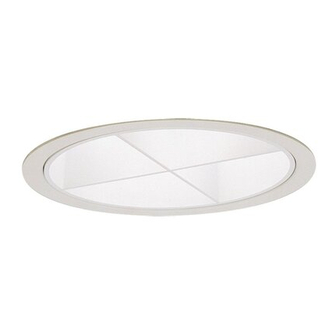

6 3/4" Aperture Cross Blade Reflector Trim
3
1" Max.
Height Frame-In Kit
7 3/16"
1101F18U Series
7 3/16"
Height
1100FTU Series
7 3/16", 7 15/16"
7 3/16", 7 15/16"
1101F18ICU/N
7 5/16"
7 5/16"
1104F13ES Series
9 1/4"
9 1/4"
1104F18ES Series
7 1/4"
1910XFH1
7 1/2"
7 1/2"
1910XDH1
7 1/2"
7 1/2"
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • K1111
9 1/4"
7 15/16"
7 3/16"
7 1/2"
Fluorescent
Ceiling Type Lamping
UniFrame™ (1) Triple 18W
Non-IC (GX24q-2)
Non-IC (1) Triple 26/32W
(GX24q-3)
Performance (1) Triple 18W
IC (GX24q-2)
Airseal ® IC (1) Triple 13W
(GX24q-1)
Airseal ® IC (1) Triple 18W
(GX24q-2)
Conversion (1) Quad 13W
Kit (GX23-2)
Conversion (2) Quad 13W
Kit (GX23-2)
