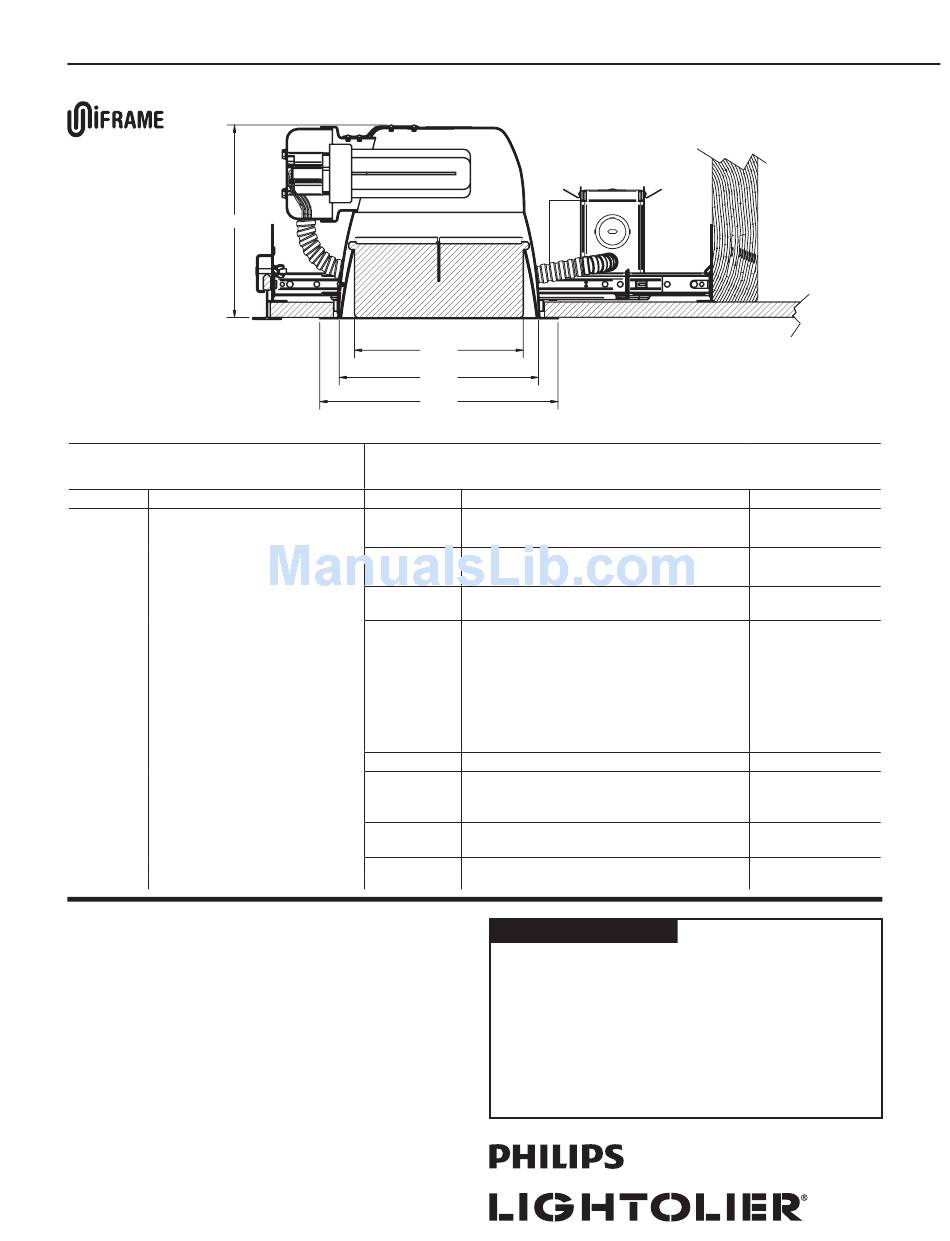

Lightolier 1101HCB Specification

Lytecaster
Page 1 of 2
6 3/8"
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe Compact Fluorescent
™
Performance Series Reflector Trims
Catalog No. Description
1101HACB
6-3/4" Horizontal Shielded Cross Blade –
Aluminum
1101HWHCB 6-3/4" Horizontal Shielded Cross Blade –
Matte White
Features
1. Reflector: Formed aluminum. Matte White flange.
2. Finishes: WH = Matte White Paint
A = Aluminum Paint
3. Cross Blade: .050" thick aluminum "floating" cross blade painted white or
aluminum.
4. Performance Data: 60° Cutoff angle.
See attached photometric reports for distribution and efficiency data.
Go to www.lightolier.com for .IES files.
Labels
cULus Listed. Suitable for Damp Locations. I.B.E.W.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0409
Performance Recessed CFL Downlighting
®
6 ¾" Aperture Horizontal Cross Blade, CFL, Performance Series, Reflector Trim
5 1/2"
6 1/2"
7 7/8"
Compatible Frame-In Kits
(See Individual Frame-In Kit Specification Sheets)
Catalog No.
1101F18U
1101FR18U
1101FD26L1
1101FD26L2
1101FD32L1
1101FD32L2
1101F2642U
1101FR2642U
1101F2642UEM
1101FD2642MX1
1101FD2642MX2
1101FD2642M7U
1101FR264MX1
1101FR264MX2
1101F18ICU/N
1101F2642ICU
1101F2642IUN
1101FDICMX1/N Performance IC Advance Mark10 Dimming 120v
1101FDICMX2/N Performance IC Advance Mark10 Dimming 277v
Installation Type
Uniframe ™ Non-IC 120/277v
Uniframe Non-IC Remodeler 120/277v
™
Uniframe Non-IC Lutron Dimming 120v
™
Uniframe ™ Non-IC Lutron Dimming 277v
Uniframe Non-IC Lutron Dimming 120v
™
Uniframe Non-IC Lutron Dimming 277v
™
Uniframe Non-IC 120/277v
™
Uniframe Non-IC Remodeler 120/277v
™
Uniframe Non-IC Emergency 120/277v
™
Uniframe Non-IC Advance Mark10 Dimming 120v
™
Uniframe ™ Non-IC Advance Mark10 Dimming 277v
Uniframe Non-IC Advance Mark7 Dimming 120/277v
™
Uniframe Non-IC Advance Mark10 Dimming 120v Rem.
™
Uniframe Non-IC Advance Mark10 Dimming 277v Rem.
™
Performance IC 120/277v
Performance IC 120/277v
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
1101HCB
Lamping
18w Quad/Triple
26w Quad/Triple
32w Triple
26w Quad/Triple
32w Triple
42w Triple
18w Quad/Triple
26w Quad/Triple
32w Triple
42w Triple
26w Quad/Triple
32w Triple
26w Quad/Triple
32w Triple
Type:
