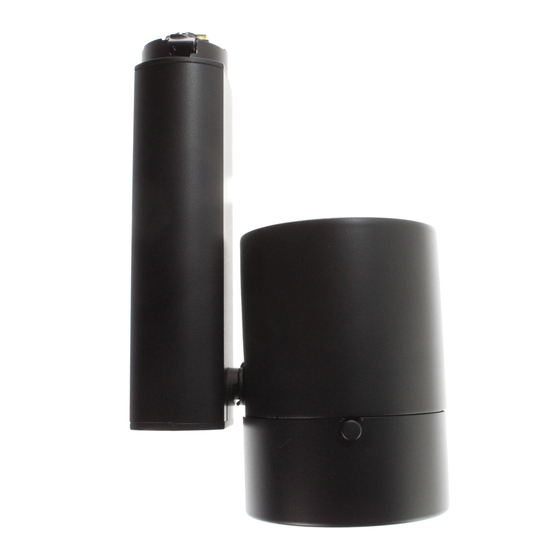

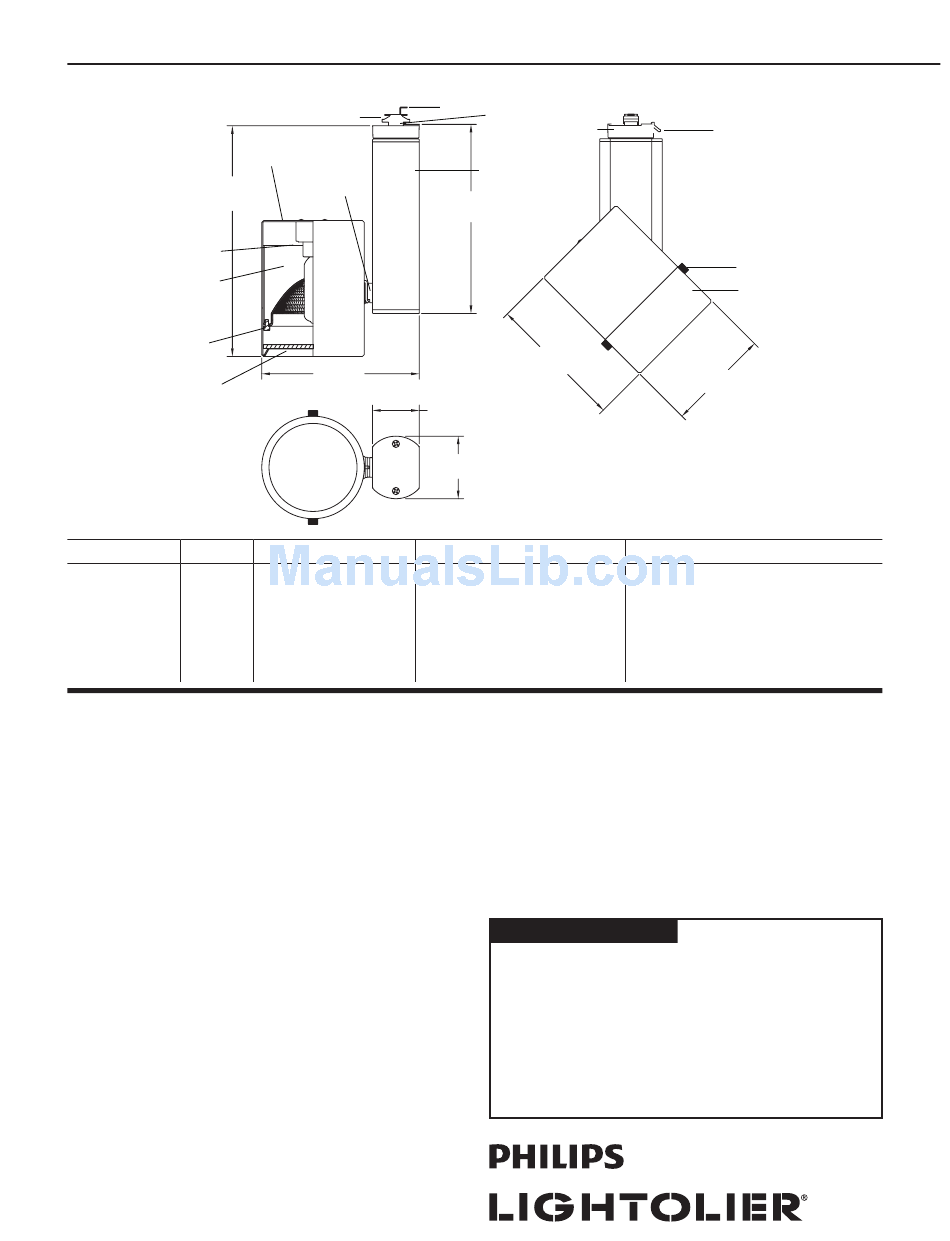

Lightolier Lytespan 8114 Specification

Page 1 of 2
8 3/16"
(208 mm)
11
9
10
12
Ordering Information
Catalog No. Finish
8114AL Aluminum
8114BK
Black
8114WH White
Features
1. Track Attachment Fitting: Molded polycarbonate. Integral color in gray,
black or white. Rotates into track and locks into place with the use of
push tabs.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum
4. Movable Contact: Solid Brass. Extends for connection to 2nd circuit in
Advent track.
5. Ground Contact : Solid brass
6. Pivot Mounts: Allows for 350° horizontal and 0-90° vertical rotation with
tensioned mounts for controlled aim.
7. Ballast Housing: Extruded housing with die-cast aluminum covers.
8. Ballast: High Power Factor metal halide electronic ballast. Thermally
protected, 0.40 amps maximum input current, 45 watts input power.
8. Lamp Housing: 0.04" (1.02mm) aluminum
9. Inner Housing: 0.04" (1.02mm) aluminum. Black finish.
10. R eflector Knobs: Steel zinc-plated knurled knobs. Secured the reflector
without tool.
11. Lampholder: Lock G8.5 base bi-pin, self centering lamp design. 5kV (750V)
pulse rated porcelain body socket with nickel-plated contacts. 18 AWG teflon
leads with fiberglass outer sleeve.
12. P rotective Glass: 0.13" (3.18mm) tempered glass. Ultra-violet (UV)
attenuation barrier.
13. H ousing Cover: 0.04" (1.02mm) aluminum
14. C over Knobs: Color steel knurled knobs. Finish matches luminaire color.
Detaches housing cover without tool.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • C1009
5
8
6
5 1/4"
(133.9 mm)
1 5/8"
(39.7 mm)
Lamp Mounting
39W T4.5 CMH (M130) All Monopoint, Multipoint, recessed
G8.5 Bi-pin base track, suspension track, suspension
Not Included stems, sloped ceiling adapter, Basic,
Advent and Radius Track systems only.
Ceiling and horizontal or vertical wall
mounted. Not compatible with ProSpec
track system.
Lytespan Track Lighting System
®
4
1
3
7, 8
6 3/4"
(172 mm)
4 11/16"
(119 mm)
2 1/8"
(53.2 mm)
Accessories
8195: Holds one accessory for 25 series (2 1/2" dia.)
AF25 Series: Diffusion/ Special Filters
ADF25 Series: Color Filters
AL35HC: Louver (Hex cell) black. Does not require 8195 accessory holder.
AF35SF: Softening lens does not require 8195 holder.
AF35FR: Frosted lens does not require 8195 holder.
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Listed, for dry locations only.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Mini HID Cylinder 39W T4.5 CMH
2
14
13
3 7/16"
(87 mm)
Reflectors (Sold Separately)
24MHT45RS Clear spot reflector
24MHT45RNF Clear narrow flood reflector
24MHT45RF Clear flood reflector
24MHT45RSCCZ Bronze spot reflector
24MHT45RNFCCZ Bronze narrow flood reflector
24MHT45RFCCZ Bronze flood reflector
Type:
8114
