Features
• 1-7/8" shallow depth.
• Four nominal lengths: 18", 24", 36", 48".
• Grounded convenience outlet (optional).
• On-off switch supplied standard with supply pack.
• Baked white enamel.
Features
Attractive, unobtrusive lighting
9/03

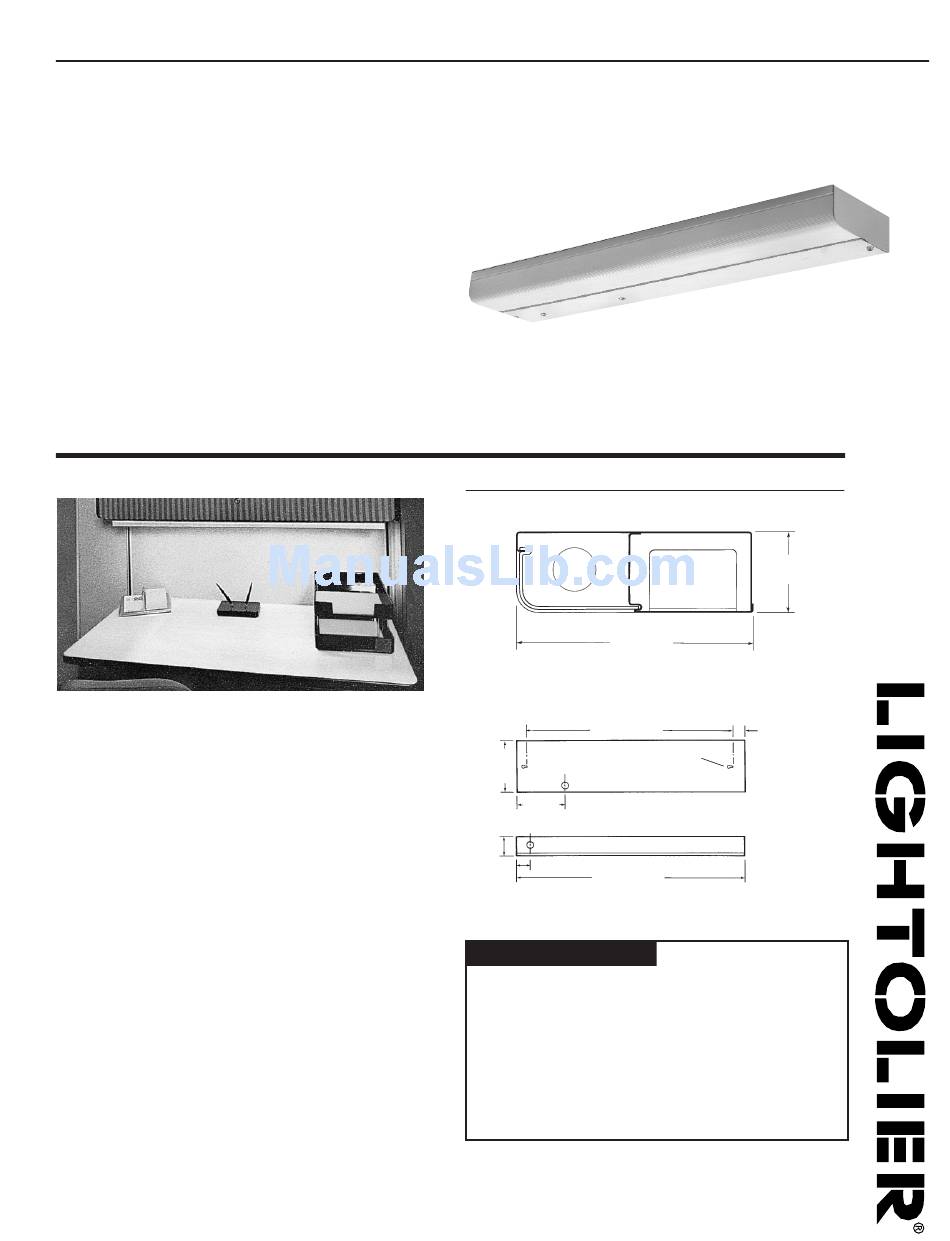

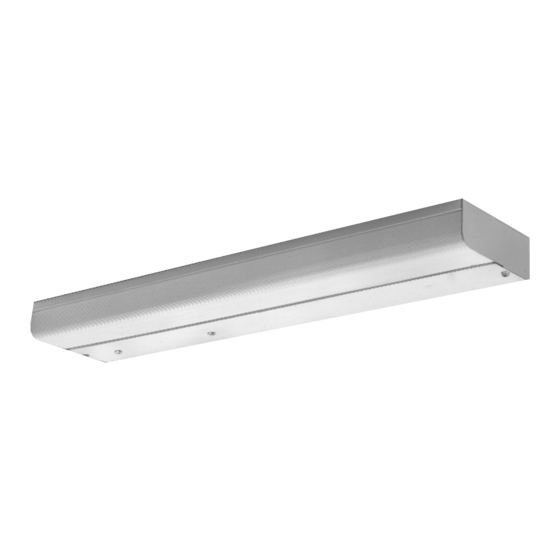

Under Shelf Luminaire
18", 24", 36", 48" Lengths, One Lamp, Rapid Start T8 and Trigger Start T12
Dimensions
All K.O.'s are 7/8" unless otherwise noted.
5-1/4" (133mm)
15-3/8" (391mm)
21-3/8" (543mm)
33-3/8" (848mm)
45-3/8" (1153mm)
9/32" Mounting Holes
5-1/4"
(133mm)
5"
(127mm)
1-7/8"
(48mm)
1-1/2" (38mm)
18-1/8" (467mm)
24-1/8" (619mm)
36-1/8" (924mm)
48-1/8" (1229mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
Copyright 2003 Lightolier
TCU SERIES
1-7/8"
(48mm)
1-3/8" (35mm)
Type:
www.lightolier.com
Section 3A/Folio H150-10 Rev. B
