Lightolier Lytespan 8104 Specification

Page 1 of 2
9
5.25"
8
10
Catalog No. Finish
8104WH
White
8104BK Black
8104AL Aluminum
Features

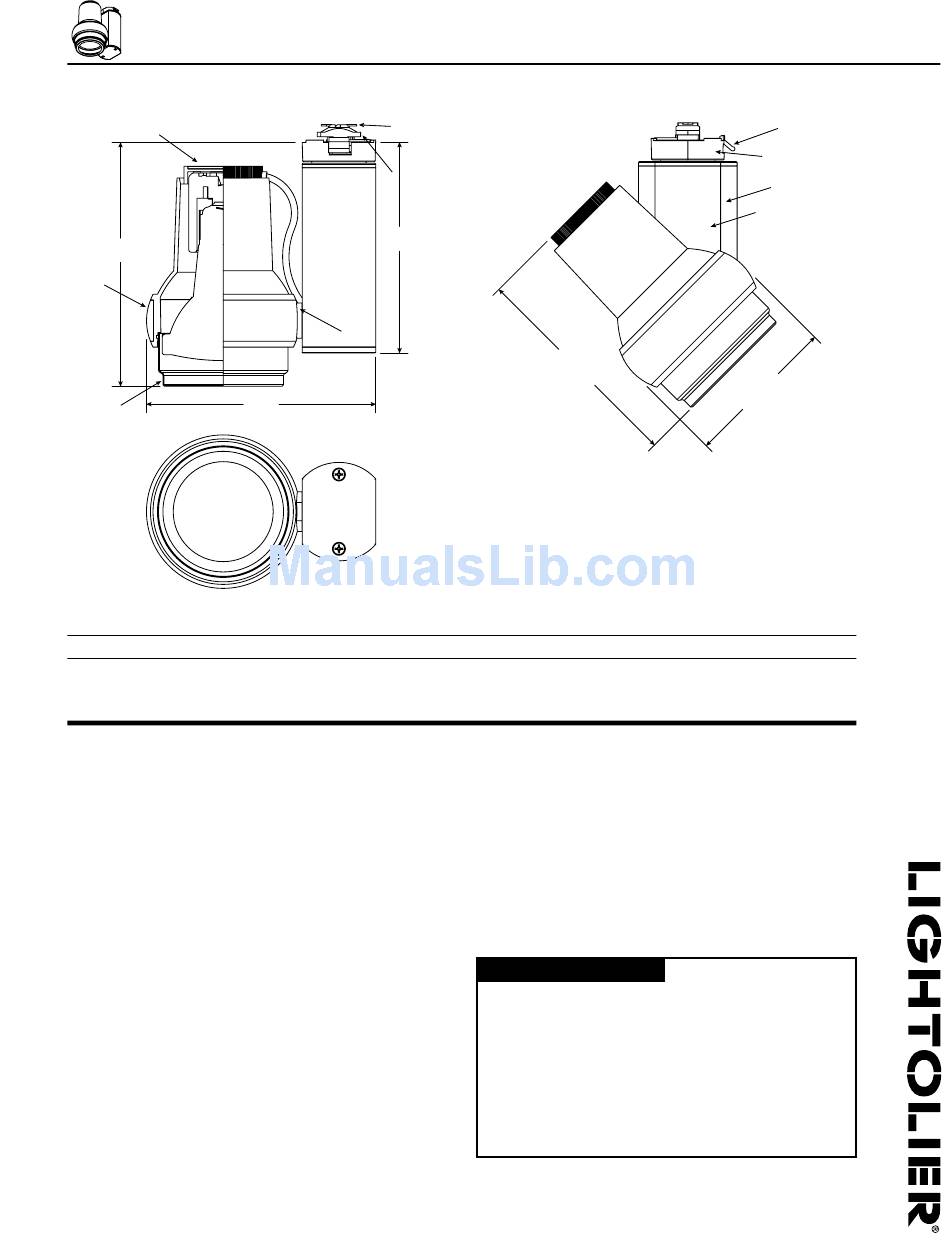

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.
2. Push Tab: Molded polycarbonate. Locks and detaches unit.
3. Track Adaptor Housing: Die-cast aluminum.
4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in
Advent track.
5. Ballast Housing: Extruded aluminum housing with die-cast aluminum
end caps.
6. Ballast: High Power Factor metal halide electronic ballast. Thermally
protected, 0.20A maximum input current, 24.5W input power.
7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical
rotation with tensioned mounts for controlled aim.
8. Lamp Housing: Die-cast aluminum with cool-grip
temperature silicone rubber which allows aiming adjustments while fixture
is on. Integral color.
9. Lampholder: 5kV (600V) pulse rated glazed porcelain body socket with
plated nickel screw shell and lamp contacts; 18AWG SEW-2 leads encased
in fiberglass sleeving.
10. Cowl: Painted steel; retaining ring included to hold accessory in place.
Accessories
Holder: Integral, holds one accessory
Diffusion/ Special Filters: AF25 series
Color Filters: ADF25 series
Louver (Hex Cell): AL25HC
4
1
4.5"
7
4.88"
Bottom View
Lamp
20W PAR20 CMH (M156) E26 base
Not Included
insulation band; a high
®
Lytespan
®
Step Spot Mini HID 20W PAR20 CMH
4.75"
Mounting
All Monopoint, Multipoint, recessed track, suspension track, suspension
stems, sloped ceiling adapter, Basic, Advent and Radius track systems only.
Ceiling and horizontal or vertical wall mounted. Not compatible with ProSpec
track system.
Finish
All painted finishes are baked powder or enamel.
Markings
cCSAus Certified for dry locations only.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
