Lightolier QVS2GPTOS232 Specification

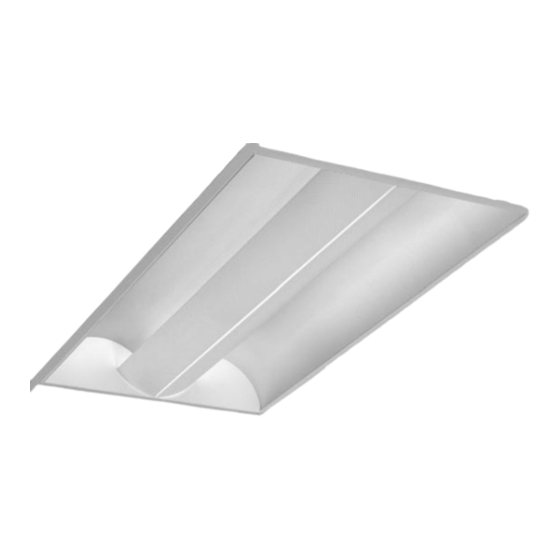

Alter metalyte 2’ x 4’ recessed direct/indirect fluorescent 2 lamp, t8, 5 1/2” deep microperforated mesh lamp shield static

Download this manual

Efficiency 44.8%.

Semi-specular aluminum reflectors with

lengthwise ridges.

Swing down microperforated lamp shield

for easy relamping and maintenance.

Alter soft white film on inside of mesh conceals

lamp image and provide balance between

reflected light and direct light.

Fully recessed luminaire and lamp

compartment.

Specular interior reflector.

One piece body for easy installation.

Easy access to ballast through lamp

compartment.

Fits standard T-Grid ceilings.

Optional acrylic drop-down visual element.

MOUNTING METHODS/FEATURES

Ceiling compatibility

Suited to standard exposed T-grid ceilings

Swing down optical system for

easy relamping and maintenance

Microperforated mesh lamp shields

L30-50

QVS2GPTOS232

ALTER METALYTE

2' X 4' RECESSED DIRECT/INDIRECT FLUORESCENT

2 LAMP , T8, 5 1/2" DEEP

MICROPERFORATED MESH LAMP SHIELD

STATIC

Suited to standard exposed Slot T-grid ceilings

Semi-specular aluminum reflector

with lengthwise ridges

DIMENSIONS

FIXTURE TYPE

JOB INFORMATION:

VOLTS

Page 1 QVS2GPTOS232 ALTER METALYTE 2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP , T8, 5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD STATIC Efficiency 44.8%. Semi-specular aluminum reflectors with lengthwise ridges. Swing down microperforated lamp shield for easy relamping and maintenance. Alter soft white film on inside of mesh conceals lamp image and provide balance between reflected light and direct light.
Page 2: Specifications
QVS2GPTOS232 ALTER METALYTE 2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT ORDERING INFORMATION Explanation of Catalogue Number Example: QVS2GPTOS232120SO QUALITY FIXTURE CEILING LAMP CLEAR POLISHED LAMP LAMP/FIXTURE VOLTAGE OPTIONS VISUAL WIDTH TYPE SHIELD ACRYLIC DROP QUANTITY LENGTH 120,277 R =Radio Interface Filter STATIC DOWN VISUAL ELEMENT (NOMINAL 24”)
