  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Push Button Configuration (PBC) ................9 About ........................... 10 Technical Specifications..............11 Troubleshooting ................12 Appendix ..................13 Federal Communication Commission Interference Statement ........16 Europe – EU Declaration of Conformity ..............17 © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

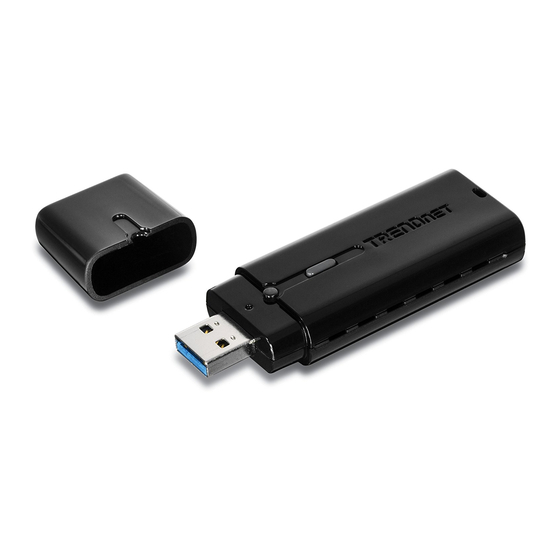

    Product Overview Features TRENDnet's AC1200 Dual Band Wireless USB Adapter, model TEW-805UB, connects a laptop or desktop computer to a revolutionary Wireless AC network. Connect to a Wireless AC network at an amazing 867 Mbps or to a Wireless N network at up to 300 Mbps.

  • Page 4: Product Hardware Features

    Internet creating a wireless network. Wireless signals from the router are broadcasted to wireless clients such as laptops with wireless capabilities. The TEW-805UB is used for computers without wireless capabilities and to connect to the wireless network.

  • Page 5: Installation

    2. Verify that the LED is turned on. Continue to the next section on how to configure that wireless adapter. 2. Follow the InstallShield Wizard Instructions 3. Click Finish to complete installation if prompted for computer restart the computer click OK. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 6: Wireless Utility

    SSID, channel, and encryption as saved by that particular profile. General This screen shows the general information of the wireless adapter. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 7 Certificate from drop down list. Wireless Network Security: The following options are available: Open System, Shared Key, WPA-PSK, WPA2-PSK, WPA EAP-TLS, WPA2 EPA-TLS . Select Open System, Shared Key for WEP data encryption feature. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 8: Available Networks

    • Authentication: The authentication type used on the wireless adapter. This information is useful to determine if the applied wireless authentication is the same as your wireless network. • Region: The wireless adapter’s wireless region. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 9: Statistics

    • Up Time: Displays how long the wireless adapter has been connected. • Counter Name: Type of packets. • Value: The value of packets. • Reset: Click this button to clear the table. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 10: Wifi Protected Setup (Wps)

    2. Enter the PIN code into the WPS “Client PIN number” of you wireless access point or router ( in example, TRENDnet TEW-639GR Wireless N Gigabit Router) then click the Start PIN button, the wireless access point or router will start the WPS configuration process.

  • Page 11: Push Button Configuration (Pbc)

    7. If the WPS configuration was failed, the follow window will show on. Try to repeat the 3. If the WPS configuration was successful, the follow window will show on. steps again if this screen appears. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 12: About

    2. Push and hold for 5 seconds the WPS button on the wireless adapter. 3. Once the WPS LED turns off you can check if the authentication was successful by checking the Status tab on the wireless utility. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 13: Technical Specifications

    802.11a/n/ac: 5.150GHz ~ 5.350 GHz / 5.725 GHz ~ 5.825 GHz (FCC), 5.150 GHz ~5.350 GHz / 5.470 GHz ~ 5.725 GHz (ETSI) Media Access CSMA/CA with ACK Protocol © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 14: Troubleshooting

    2. Remove the adapter from the computer SSID 3. Click the Windows / Start icon, click All Programs, click TRENDnet Wireless and 2. Please check with your network administrator for security key in order to access a then click Uninstall.

  • Page 15: Appendix

    54Mbps Setting up wireless security is very important. Leaving your wireless network open and unsecure could expose your entire network and personal files to outsiders. TRENDnet • WPA2: This is the most secure wireless encryption available today, similar to WPA recommends reading through this entire section and setting up wireless security on your encryption but more robust.
  • Page 16 5. Enter in the security key corresponding to the wireless network, and click OK. Windows XP/2000 a. Go into the Control Panel, double-click the Network Connections icon b. Right-click the Local Area Connection icon and the click Properties. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 17 3. You may be prompted to enter a security key in order to connect to the network. 4. Enter in the security key corresponding to the wireless network, and click Connect. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 18: Federal Communication Commission Interference Statement

    Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 19: Europe - Eu Declaration Of Conformity

    2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 20 Directiva 1999/5/CE. [Portuguese] Hereby, TRENDnet, declares that this TEW-805UB is in compliance with English TRENDnet izjavlja, da je ta TEW-805UB v skladu z bistvenimi zahtevami in Slovensko the essential requirements and other relevant provisions of Directive ostalimi relevantnimi določili direktive 1999/5/ES.

  • Page 21: Limited Warranty

    TRENDnet products. Products that are sent to TRENDnet for RMA service must California. have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees.
