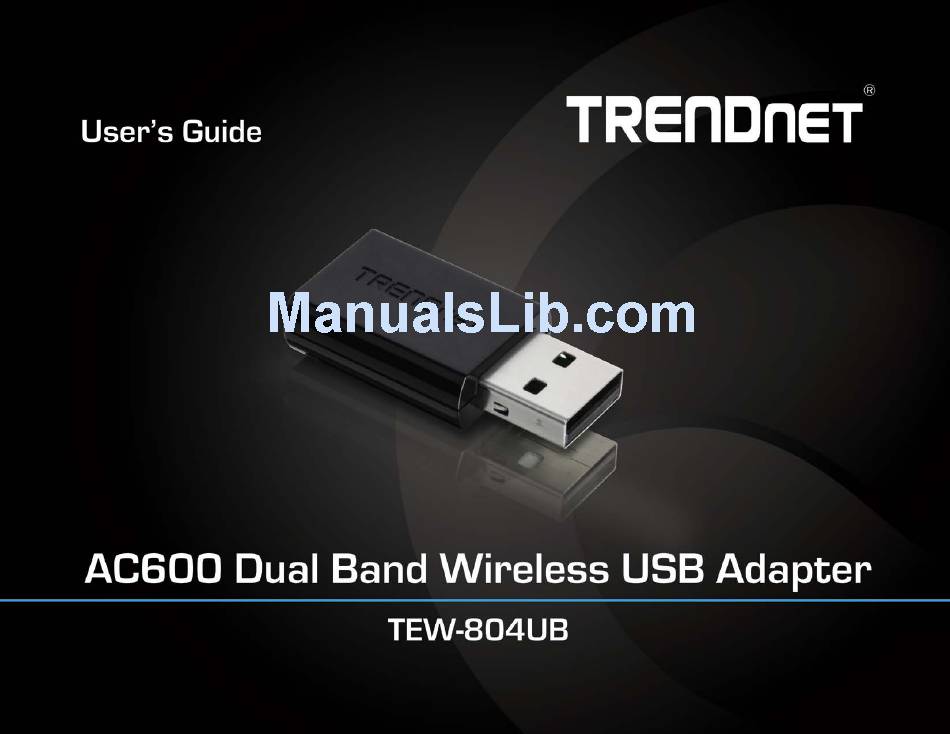

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Wireless Utility Overview ..................21 Connect to your wireless network ................26 Connect to your wireless network using WPS............27 Create or modify wireless network profiles ............30 Technical Specifications..............32 Troubleshooting ................33 Appendix ..................34 © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

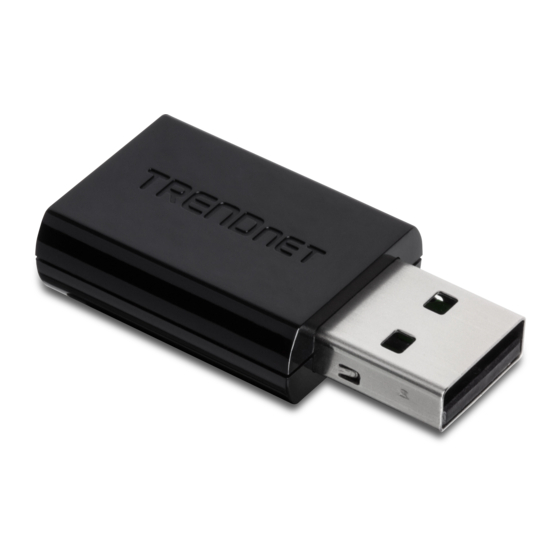

    Product Overview Features TRENDnet's AC600 Dual Band Wireless USB Adapter, model TEW-804UB, connects a Windows® or Mac® computer to a revolutionary Wireless AC network. Connect to a Wireless AC network at up to 433 Mbps or to a Wireless N network at up to 150 Mbps.

  • Page 4: Product Hardware Features

    Connector WPS Button / Activity LED Indicator The AC600 Dual Wireless USB Adapter is installed on a laptop in another room • USB Connector – The USB 2.0 Type A connector connects your adapter to one of connecting wirelessly to a router which is connected to the ISP modem (Internet) the available USB 2.0 Type A ports on your computer.

  • Page 5: Installing Your Wireless Adapter

    Next. Note: If the Autorun prompt does not appear automatically, open the CD contents and double-click Autorun.exe. 3. At the CD-ROM main menu, click Install Drivers & Utility. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 6 Install this driver software anyway. 7. Select your preferred installation option and click Next. • TRENDnet Wireless Utility & Drivers (Recommended) – Installs both the driver and TRENDnet software utility to manage your wireless connections. 9. After the process is completed, click Finish.
  • Page 7 13. Check the status information at the bottom of the utility to verify that you were successfully connected to your wireless network. Note: If no status information appears, please verify that your security key is correct. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 8: Mac® Os Installation

    5. At the introduction window, click Continue. 2. Open the folder named “Mac” on the included Utility and Driver CD ROM. 3. Open the folder of the Mac OS® version you are installing. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 9 6. At the Read Me window, click Continue. 8. When prompted to agree with terms of the software license agreement, click Agree. 9. At the Installation Type window, click Install. 7. At the License window, click Continue. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 10 12. Wait for the installation to complete. 11. Enter your Name and Password to authorize the installation and click Install Software. 13. At the Summary window, click Restart to restart your computer and complete the installation. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 11 17. Check the status information in Link Status tab of the utility to verify that you were successfully connected to your wireless network. Note: If no status information appears, please verify that your security key is correct. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 12: Using The Wireless Utility

    Exit – This option will close the utility and terminate the application. The application will no longer be running and accessible from your system tray. You will have to restart the application manually by double-clicking the Desktop icon. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 13: Wireless Utility Overview

    IP address obtained from the wireless network your are currently The network should already be in wireless network you are currently connected. your profile list in order to remove. connected. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 14 WPS supported device After selecting the WPS method to such as a wireless router/access point use, click Next to continue to using the WPS PIN method. remaining steps of the WPS connection process. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 15 About Window This window displays the wireless adapter MAC address, driver, and utility version reference information. MAC Address, Utility & Driver Version Displays the wireless adapter MAC address, utility, and driver version reference information. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 16: Connect To Your Wireless Network

    4. If your network has security enabled, you will be prompted to enter the Network Key and the encryption type will be detected automatically. Enter the Network Key and click © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 17: Connect To Your Wireless Network Using Wps

    WPS button on the wireless for 3 seconds and release. 4. Click Next. Note: Typically, the WPS button hold time is 3-5 sec., then release. For TRENDnet routers/access points, the WPS hardware push button hold time is 3 seconds. If you are using another brand device, you may need to refer to your device documentation for WPS operation.
  • Page 18 You may need to click Back Note: Typically, the WPS button hold time is 3-5 sec., then release. For TRENDnet and attempt the WPS process again. You may need to refer to your wireless routers/access points, the WPS hardware push button hold time is 3 seconds.
  • Page 19 WPS section. The example below (from our PIN (Personal Identification Number) Method TRENDnet TEW-811DRU router) shows where the WPS client PIN information is entered. 1. Open up the wireless utility. 6. On the wireless utility, click Start.

  • Page 20: Create Or Modify Wireless Network Profiles

    Networks list, and click this option to remove it. You will only be able to remove a profile that had been saved in the Windows® profile list. 2. Click on the Available Networks tab. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 21 WPA-EAP or WPA2-EAP \ TKIP or AES – Wireless network has WPA-EAP security enabled, TKIP or AES. Select the EAP (Extensible Authentication Protocol) Type. EAP-TLS – Requires additional certificate to be installed on computer for authentication purposes. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 22: Mac® Os

    Quit Wireless-AC Network Utility – This option will close the utility and terminate the application. You can use the MAC® OS built-in wireless utility to manage the adapter. The application will no longer be running and accessible from your system tray. You will have to restart the application through your Applications menu or Launchpad. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 23: Wireless Utility Overview

    (Infrastructure or Ad-Hoc) of currently connected. to the wireless network wireless adapter the network you are currently currently connected. functionality. connected. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 24 © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 25 Displays the wireless network type list, click this option to rescan for list. This option does not automatically (Infrastructure or Ad-Hoc) available wireless networks. save the wireless network to a profile. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 26 WPS Push Button method. The randomly generated WPS client PIN to enter in the wireless router or access point used to establish wireless connectivity using the WPS PIN method. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 27 Wireless Utility Overview Information Window This window displays the wireless adapter driver and utility version reference information. Utility & Driver Version Displays the wireless adapter MAC address, utility, and driver version reference information. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 28: Connect To Your Wireless Network

    OK. If you are still experiencing issues connecting to your wireless network, you may need to verify the security settings of your wireless network to make sure they correct key is entered. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 29: Connect To Your Wireless Network Using Wps

    3. On your wireless router/access point, push the WPS button. your network. Note: Typically, the WPS button hold time is 3-5 sec., then release. For TRENDnet routers/access points, the WPS hardware push button hold time is 3 seconds. If you are •...
  • Page 30 Note: The wireless network will be added to your Profiles list automatically. Note: You can check the Link Status window to check the connection status and information about the wireless network you are connected. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 31 You may need to refer to your device documentation on how to access your device’s configuration page and locate the WPS section. The example below (from our TRENDnet TEW-811DRU router) shows where the WPS client PIN information is entered. 5. In the WPS window on the wireless utility, click PIN.

  • Page 32: Create Or Modify Wireless Network Profiles

    2. Click on the Available Network tab. 3. You can select a network from the list and click Add to Profile to add it to the profile list. Enter or modify the parameters for the wireless network profile. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 33 EAP-TLS – Requires additional certificate to be installed on computer • Channel – Allows you to select the specific operating wireless channel used. for authentication purpose © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 34: Technical Specifications

    2.4 GHz: 2.412~2.462 (FCC) and 2.412~2.472 (ETSI) Frequency 5 GHz: 5.15 ~ 5.250 / 5.725~5.850 GHz (FCC) and 5.15 ~ 5.250 (ETSI) Antenna 2.4 GHz/5GHz Internal PIFA Modulation CCK, DQPSK, DBPSK, OFDM, BPSK, QPSK, 16/64/256-QAM © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 35: Troubleshooting

    2. Remove the adapter from the computer point's SSID 3. Click the Windows / Start icon, click All Programs, click TRENDnet Wireless and 2. Please check with your network administrator for security key in order to access a then click Uninstall.

  • Page 36: Appendix

    Setting up wireless security is very important. Leaving your wireless network open and speeds under this encryption type however are limited to 54Mbps. unsecure could expose your entire network and personal files to outsiders. TRENDnet • WPA-Auto: This setting provides the router with the ability to detect wireless recommends reading through this entire section and setting up wireless security on your devices using either WPA or WPA2 encryption.
  • Page 37 Go into the Control Panel, click Network and Internet. b. Click Manage Network Connections, right-click the Local Area Connection icon and click Properties. c. Click Internet Protocol Version (TCP/IPv4) and then click Properties. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 38 Windows 8/7 1. Open Connect to a Network by clicking the network icon ( ) in the notification area. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 39 RF output power may be limited to 10 mW EIRP in the frequency range product will be used for indoor operations. of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. RoHS This product is RoHS compliant. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 40 TEW-804UB TRENDnet User’s Guide TRENDnet tímto prohlašuje, že tento TEW-804UB je ve shodě se Hierbij verklaart TRENDnet dat het toestel TEW-804UB in Česky [Czech] Nederlands základními požadavky a dalšími příslušnými ustanoveními směrnice overeenstemming is met de essentiële eisen en de andere relevante [Dutch] 1999/5/ES a 2006/95/ES.
  • Page 41 Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS the developers.
