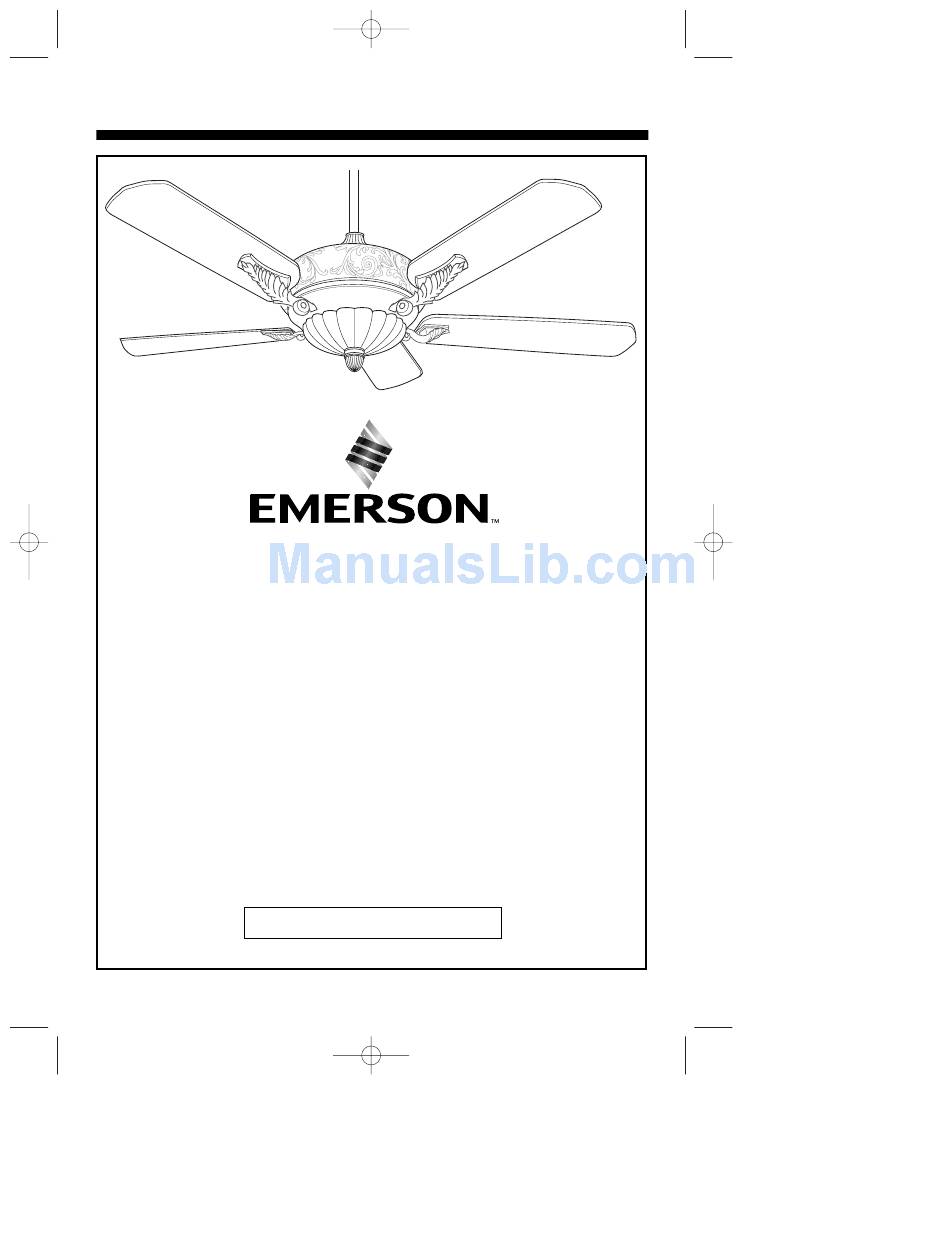

BP7335 Palazzo 1/9/07 9:05 AM Page 1 READ AND SAVE THESE INSTRUCTIONS PALAZZO ™ 54” Ceiling Fan Owner's Manual Model No. CF943AGW00 CF943BZH00 37.9 Net Weight: Lbs. Part No. F40BP73350000 Form No. BP7335 ETL Model No.: CF943...
4. The downrod furnished with the fan provides the minimum recommended floor to fan blade clearance for an 8 foot ceiling. 5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the fan blades.
Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage. 1. Open carton containing fan. Remove top half of styrofoam unit.
Page 4
2. Remove and discard the two cardboard shipping retainers securing the motor hub in the motor housing assembly. 3. Remove the fan motor assembly from the protective plastic bag. Place all carton contents on a protective surface. Page 4 B.
Page 5 Ceiling Fan Procedures General Your Emerson ceiling fan comes supplied with a Fan/Light Wall Control which consists SW113 wall Wall (transmitter) and a SW105 remote control receiver mounted under the ceiling cover.
Page 6
All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock. 1. Disconnect power at circuit breaker or remove fuse.
(supplied in loose parts bag) (Figure 6). WARNING To reduce the risk of personal injury, do not bend the blade flanges when installing the flanges, balancing the blades, or cleaning the fan. Do not insert foreign objects between rotating fan blades. LOAD LOAD...
Page 8
WASHER (3 per blade) BLADE FLANGE Figure 6 NOTE: Take care not to scratch fan housing when installing blades. 2. Position the bottom half of the styrofoam packaging on the floor (Figure 7). Turn the fan motor assembly upside down onto the styrofoam in preparation for mounting the fan blade assemblies.
Page 9
Place the partially assembled fan into the top half of the styrofoam as shown in Figure 11. Do not rest fan weight on the light fitter sockets. TOP HALF OF STYROFOAM Figure 11 8.
You can now proceed with hanging and wiring your fan. How to Hang Your Ceiling Fan WARNING The fan must be hung with at least 7' of clearance from floor to blades (Figure 17). CEILING LEAST FLOOR Figure 17...
(AC IN L). d. Cut off the end of the blue receiver wire and strip back insulation 1/2- inch from the end of the wire. e. Connect the blue fan wire to the blue receiver wire (BOTTOM LIGHT). before...
Page 12
Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire connectors, except for the ground wire. Do not operate fan until blades are in place. Noise and fan damage could result. OUTLET BOX BLACK SUPPLY WIRE...
Page 13
THREADED GLASS WASHER SHADE DECORATIVE FINIAL NUT Figure 25 5. Your ceiling fan is now installed and wired to be controlled by your fan/light wall control. removed...
NOTE: Make sure that the ON/OFF slide switch on the Fan/Light Wall Control is in the ON position. 2. To set the desired fan speed, press the HI, MED, or LOW buttons to operate your fan on high, medium, or low speed (Figure 26).
BP7335 Palazzo 1/9/07 9:05 AM INSTRUCTION TO THE USER (if device contains a digital device) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage.
BP7335 Palazzo 1/9/07 9:05 AM WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN. Trouble Shooting TROUBLE PROBABLE CAUSE 1. Fan will not 1. Fuse or circuit breaker start. blown.
• PART NUMBER • NAME OF ITEM • PART DESCRIPTION • MODEL NUMBER The model number of your Fan will be found on a label attached to the top housing. For repair parts, phone 1-800-654-3545. Page 18 LIGHT FAN OFF...
Page 19
Oval Head Flange (11) Screw, #8-32 x 1/4” Pan Head (4) Cover, Ceiling Cover, Coupling Fan Housing Assembly Flange Assembly (full set for one fan) Blade Set (full set for one fan) Light Fitter Assembly Harness, Wiring with Reverse Module Glass Shade...
If repair of the motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson Electric Co. will refund the actual purchase price of your fan. We will ship the repaired product or replacement to you at no charge, but you are responsible for all costs of removal, reinstallation and shipping of the product to Emerson.
