Emerson HIGHGROVE CF990BS00 Owner's Manual

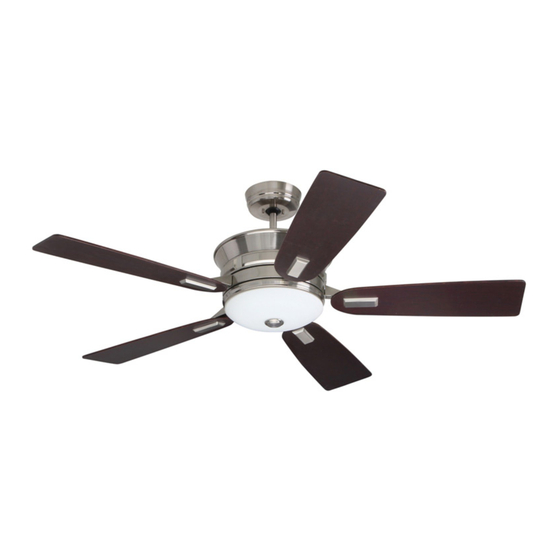

Highgrove 54” ceiling fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
READ AND SAVE THESE INSTRUCTIONS
54" Ceiling Fan Owner's Manual
Part No. F40BP74640000
HIGHGROVE
Model Number
CF990BS00
CF990VNB00
Net Weight:
™
27.5
Lbs.
Form No. BP7464
Model No.: CF990

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIGHGROVE CF990BS00 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson HIGHGROVE CF990BS00

Summary of Contents for Emerson HIGHGROVE CF990BS00

  • Page 1 READ AND SAVE THESE INSTRUCTIONS ™ HIGHGROVE 54” Ceiling Fan Owner's Manual Model Number CF990BS00 CF990VNB00 27.5 Net Weight: Lbs. Part No. F40BP74640000 Form No. BP7464 Model No.: CF990...

  • Page 2: Safety Instructions

    WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control, Model No. UC7067RA manufactured by Rhine Electric Co., Ltd. WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically approved for this fan.

  • Page 3: Unpacking Instructions

    ASSEMBLY designated specifically for use with this product by Emerson Electric Co. Substitution of parts or accessories not designated for use with this product by Emerson Electric Co. could result in personal injury or property damage. B. CEILING COVER C. COUPLING 1.

  • Page 4: Electrical Requirements

    Electrical Requirements Your new ceiling fan will require a grounded electrical WARNING supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and Turning off wall switch is not sufficient. To avoid capable of withstanding a load of at least 50 pounds.
  • Page 5 How to Put Your Ceiling Fan Together (continued) 3. While pulling up on the downrod, securely tighten the two setscrews in the motor coupling (Figure 2). DOWNROD COUPLING COVER NOTE: The setscrews must be properly installed as described above, or fan wobble could result. MOTOR GROMMET HOUSING...
  • Page 6 How to Put Your Ceiling Fan Together (continued) 8. Remove and discard the four rubber shipping retainers securing the motor hub in the motor housing assembly (Figure 6). 9. Position one blade medallion onto the blade. RUBBER Place the blade flange to the other side of the SHIPPING blade to secure the medallion and blade to the RETAINERS...
  • Page 7 How to Put Your Ceiling Fan Together (continued) 11. Remove one #8-32 x 10mm serrated head screw #8-32 x 10mm from the fan motor housing (reserve for later SERRATED HEAD SCREWS (3) use). Loosen the other two screws to assemble LOWER HOUSING the lower housing to the fan motor housing (Figure 9).

  • Page 8: How To Hang Your Ceiling Fan

    How to Hang Your Ceiling Fan WARNING CEILING Turning off wall switch is not sufficient. To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. All wiring must be in accordance with National and Local codes and the ceiling fan must be properly grounded as a precaution against possible electrical shock.

  • Page 9: How To Wire Your Ceiling Fan

    How to Wire Your Ceiling Fan If you feel that you do not have enough electrical SUPPLY WHITE WIRE wiring knowledge or experience, have your fan (NEUTRAL) RECEIVER WHITE installed by a licensed electrician. WIRE RECEIVER BLACK WIRE SUPPLY BLACK WARNING RECEIVER WIRE (HOT)
  • Page 10 How to Wire Your Ceiling Fan (continued) 4. Push the wires and connectors up into the outlet box while inserting the receiver fully into the hanger bracket. Position the antenna wire on top of the receiver. 5. Screw the two threaded studs (supplied) into the tapped holes in the hanger bracket.

  • Page 11: Remote Control Procedures

    Preset Memory Feature hold the "Off" ( ) button for 3-5 seconds to Your Emerson receiver is equipped with a preset program the receiver with the transmitter code. memory feature. If the AC supply to the receiver is If turned on, the fans lights will blink when the code powered through a wall switch, when the switch is is set.

  • Page 12: Using Your Fan

    Emerson Electric Co. Substitution of parts or accessories not designated for use with this product The use of any other control not specifically by Emerson Electric Co. could result in personal approved for this fan could result in fire, shock and injury or property damage.

  • Page 13: Troubleshooting

    Trouble Shooting WARNING: For your own safety, turn off power at fuse box or circuit breaker before trouble shooting your fan. TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fuse or circuit breaker blown. 1. Check main and branch circuit fuses or circuit 1.

  • Page 14: Repair Parts

    Repair Parts Model No.: CF990...
  • Page 15 Repair Parts Listing Model Numbers Description CF990BS00 CF990VNB00 Hanger Ball Assembly, 761655-17 761655-89 Consisting of: Hanger Bracket — — Hanger Ball — — Downrod (4.5”) — — Parts Bag Containing: 764286 764286-1 Wire Connector (3) — — Pin, Clevis (1) —...
  • Page 16 Emerson Ceiling Fan. Once we have processed your return authorization request, we will provide you with a postage paid return label which should be affixed to the Emerson Ceiling Fan package you ship to the address listed at the end of this limited warranty. The return label will be sent to the mailing address you provide to us by phone.

This manual is also suitable for:

Highgrove cf990vnb00
