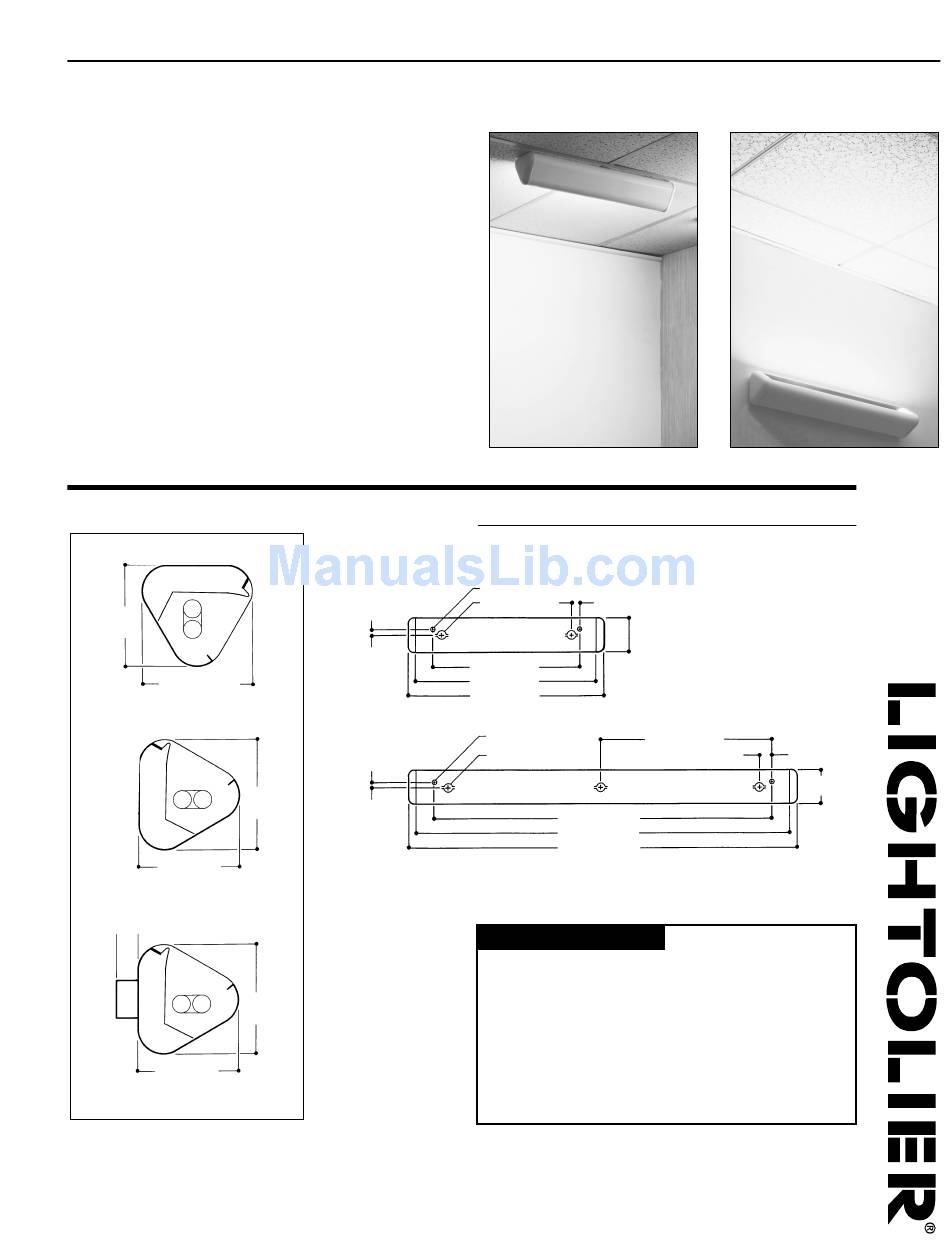

Lightolier BI-LYTER Specification

Page 1 of 2
FEATURES
• Same fixture can be used as a wall washer when ceiling mounted,
or for indirect lighting when wall mounted.
• When wall mounted, ideal for indirect lighting small offices or
corridors.
• When ceiling mounted, ideal for lighting chalk boards, bulletin
boards, wall displays or any vertical surface.
• Only 4" deep.
• Meets ADA when wall mounted.
• Soft rounded corners and edges create an elegant appearance.
• 20 gauge cold rolled steel body.
• Die-cast aluminum end caps.
• Specular reflector.
• 4' unit 2-TT5 or 1 T8 lamp.
• 2' unit TT5 lamp.
• Off white baked acrylic finish (standard).
• Can be used in continuous rows.
• Meets NYC Code Requirements.
MOUNTING METHODS
Ceiling
4"
(102mm)
4-3/8" (111mm)
Wall Washer
W
a
(111mm)
l
l
4" (102mm)
Indirect Wall Mount
1" (25mm)
W
a
l
(111mm)
l
4" (102mm)
Indirect Wall Mount with Optional
BL-Spacer (Does not meet ADA)
WALL WASHER/INDIRECT WALL MOUNT
2' Unit
1/2" (13mm)
C L
4' Unit
1/2" (13mm)
C L
4-3/8"
4-3/8"
SURFACE FLUORESCENT 2' LENGTH, 1 LAMP TT5
4' LENGTH, 2 LAMP TT5 OR 1 LAMP T8
Wall Washer
DIMENSIONS
9/32" Mounting Hole
15/16" (24mm)
7/8" Dia. K.O.
4-3/8"
(111mm)
18-3/8" (467mm)
24-3/8" (619mm)
25-7/8" (657mm)
9/32" Mounting Hole
21-11/16" (551mm)
7/8" Dia. K.O.
43-3/8" 1102mm)
48-11/16" 1237mm)
50-3/16" (1275mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte Thomas Company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division)
A0902
BI-LYTER
Indirect Wall Mount
15/16"
(24mm)
4-3/8"
(111mm)
Type:
www.lightolier.com
Section 5/Folio K10-31
