Lightolier CACS series Installation

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To
assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTALLATION PROCEDURE FOR: CEILING MOUNT STEM KIT CACS AND C4CS SERIES
USED WITH CEILING MOUNT CYLINDERS (ORDER SEPARATELY)
WARNING:
USE ONLY FIXTURE PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURES' FIXTURES MAY VOID
THE UNDERWRITERS LABRATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.

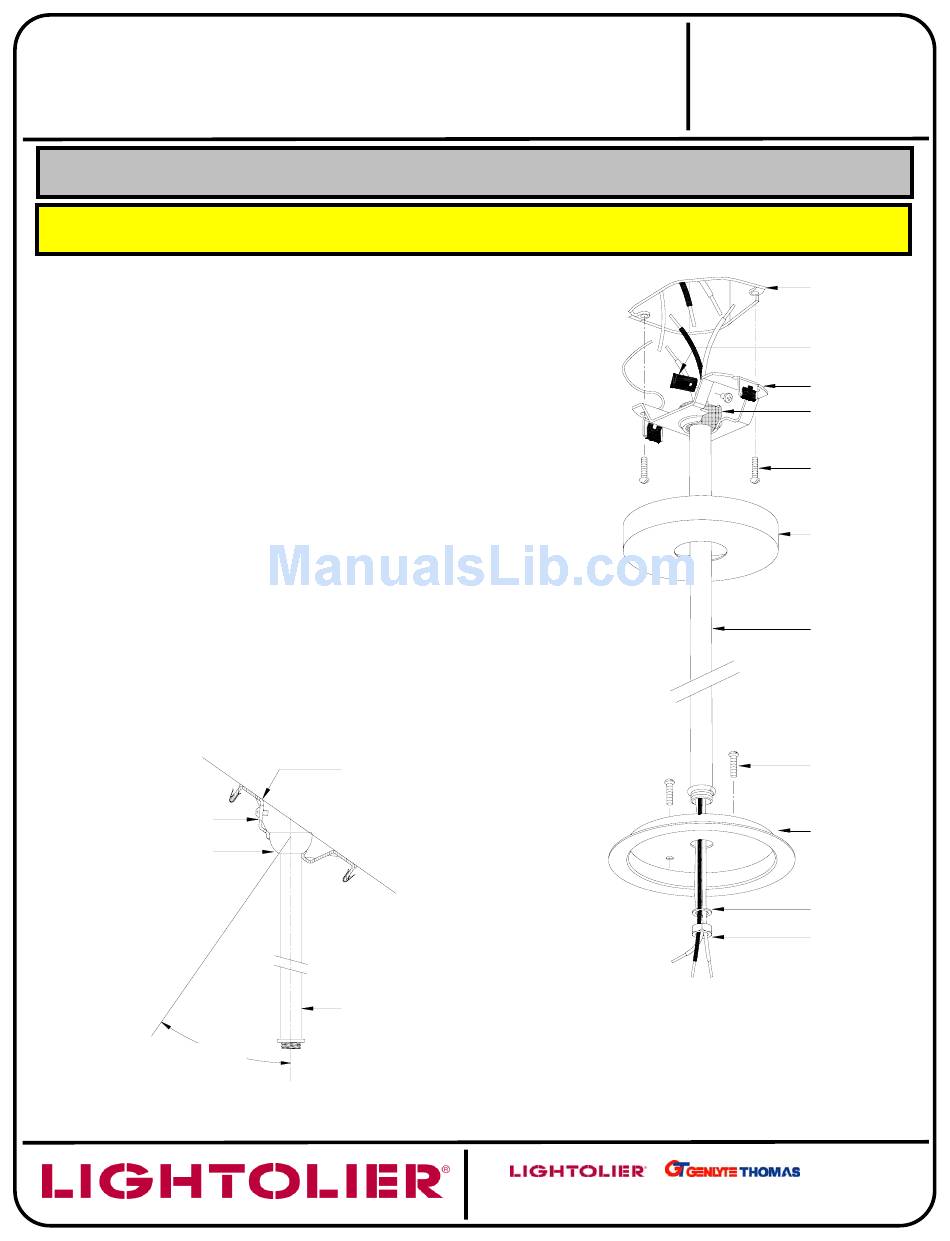

INSTALLATION OF STEM KIT ONTO CEILING

(Fig. 1 & 2)
(NOTE: If custom length is required see page 2.)
1. Assemble STEM to BALL ALIGNER using set screws. Pull wires
through BALL ALIGNER leaving no less than 6" exposed.
2. For sloped ceilings, position opening in CROSSBAR facing
upward. (Fig. 2) Install CROSSBAR using OUTLET BOX SCREWS.
3. Place BALL ALIGNER of STEM into CROSSBAR through side
access hole. When seated the BALL ALLIGNER keyway will line up
with TAB on CROSSBAR.
4. Slide SAFETY STRAP into position and secure in position with
screw.
5. Make Connections. Bare Copper and/or green insulation wire(s)
must be connected to SUPPLY GROUND. Connect WHITE
LEAD to NEUTRAL (WHITE) SUPPLY LEAD. Connect BLACK
LEAD to HOT SUPPLY LEAD. Use wire nuts (local hardware
items). Push spliced leads into outlet box.
6. Slide CANOPY over CROSSBAR and push up against ceiling.
7. Insert SUPPORT COVER onto stem, secure with LOCK WASHER
and LOCK NUT.
SAFETY STRAP
BALL ALIGNER
45° MAX.
CROSSBAR
STEM
FIG. 2
INSTRUCTION SHEET NO.
A0604
FIG. 1
A
631 Airport Road, Fall River, MA 02720
IS:CACS
Page 1 of 2
OCTAGON
OUTLET BOX
(BY OTHERS)
SAFETY STRAP
CROSSBAR
BALL ALIGNER
OUTLET BOX
SCREWS
CANOPY
STEM
SCREWS
SUPPORT
COVER
LOCK WASHER
LOCK NUT
