Lightolier Lytecaster 1100DICM Specification

Page 1 of 1
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Reflector
1100DICM 1143
1144
1144CD
1145
1146
1146CD
Cone:
1112†
1113†
1113BK†
1113CD†
1113WH
† Add NM to catalog
number for Natural
Metal Flange finish

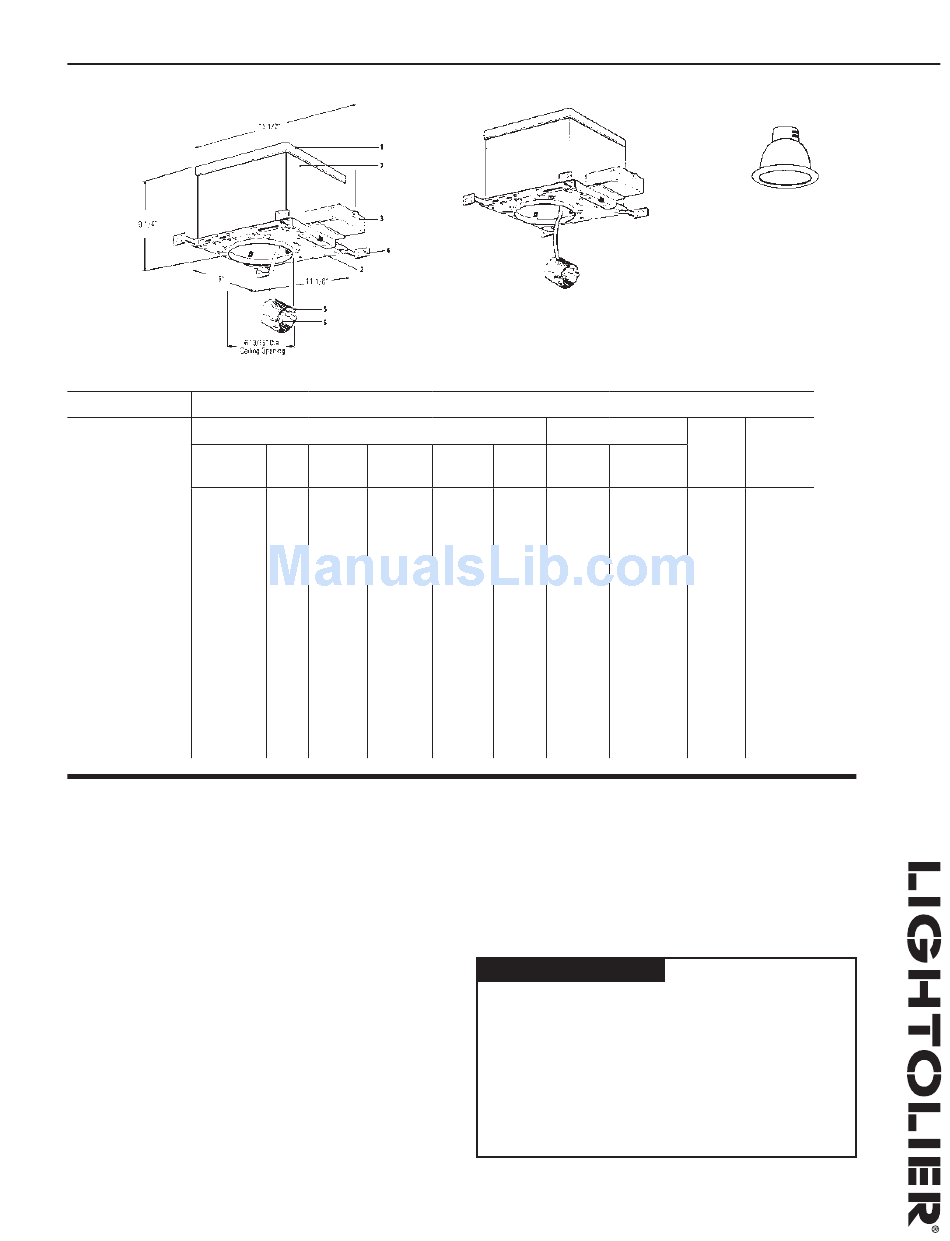

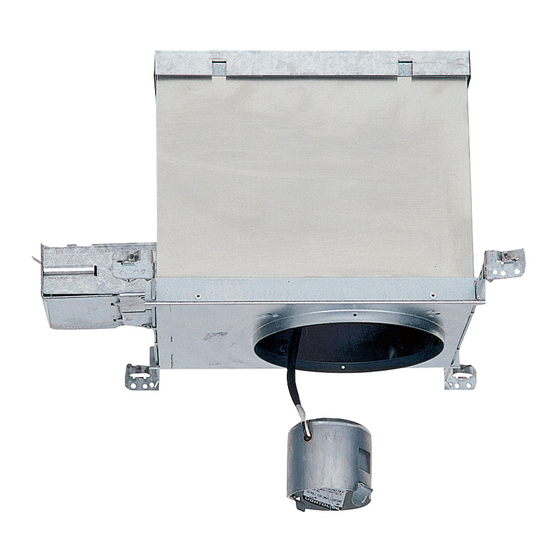

Features
1. Housing: Walls .032" aluminum. Cover .026" galvanized steel. UL listed
for direct contact with thermal insulation reduces heat loss. Access door
for inspection of junction box.
2. Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1" thick. 3/8" deep integral lip. Four slots are positioned 90°
apart to simplify alignment. Push-in/twist-out rotoclips hold reflector flush
to ceiling.
3. Junction Box: 2" X 4" X 4": .063" (#14 ga.) galvanized steel. UL listed for
maximum of 6 No. 12 ga., 90° C through branch circuit conductors. Quick
release "L" shaped cover for outside access to wiring. Access door inside
of housing allows easy inspection of wiring without removal of housing.
Integral cable clamps permit attachment of nonmetallic, Romex
the need for additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate
16" to 24" O. C. joist spacing and feature integral nail for secure attachment
to wood construction. Attaches to T-bar ceilings without the need of
accessories.
5. Socket Housing: Galvanized steel.
6. Socket: Porcelain medium base; nickel plated screw shell.
Pre-wired with #18 ga. SF1 leads to junction box.
7. Thermal Protector: Meets NEC and UL requirements. Located inside
housing.
Lytecaster Recessed Downlighting
®
6 3/4" Aperture Deep Insulated Ceiling Incandescent Frame-In Kit
Open Downlight
Satin Sloped Baffles Basic
Cone Ceiling White
1108† 1131 1105† 1170M1
1110† 1131WH 1105WH 1171
1131GD 1176
1131CL 1176WH
1131BK 1179M1
1133 1179WH
1133WH 1105BNM
1133GD
1133CL
1133BK
without
®
Frame-in Kit
Adjustable
Cross Recessed Recessed
Blade Line Volt. Low Volt.
1132 1127 1152
1132A 1127BK 1155
1127WH 1155WH
1129† 1161
1129CD† 1161WH
1129WH 1163
1129CL† 1164
1129BK†
1129GD†
1138
1148
Eyeball:
1122
1122WH
1123
1123WH
1182
Options & Accessories
Extra-Thick Ceiling Mounting Ring:
277V Remote Step-Down Transformer:
Labels
UL (Suitable for Damp Locations).
Romex is a registered trademark of General Cables Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • G0711
1100DICM
Reflector Trim
Enclosed Wall
Diffuers Washer
1121 1135
1124 1135WH
1126 1185
1128 1186
1134 1186WH
1177SH
1178SH
1190
1967A - up to 2" thick ceiling.
7997 - 277v down to 120v
300W max. load.
Type:
