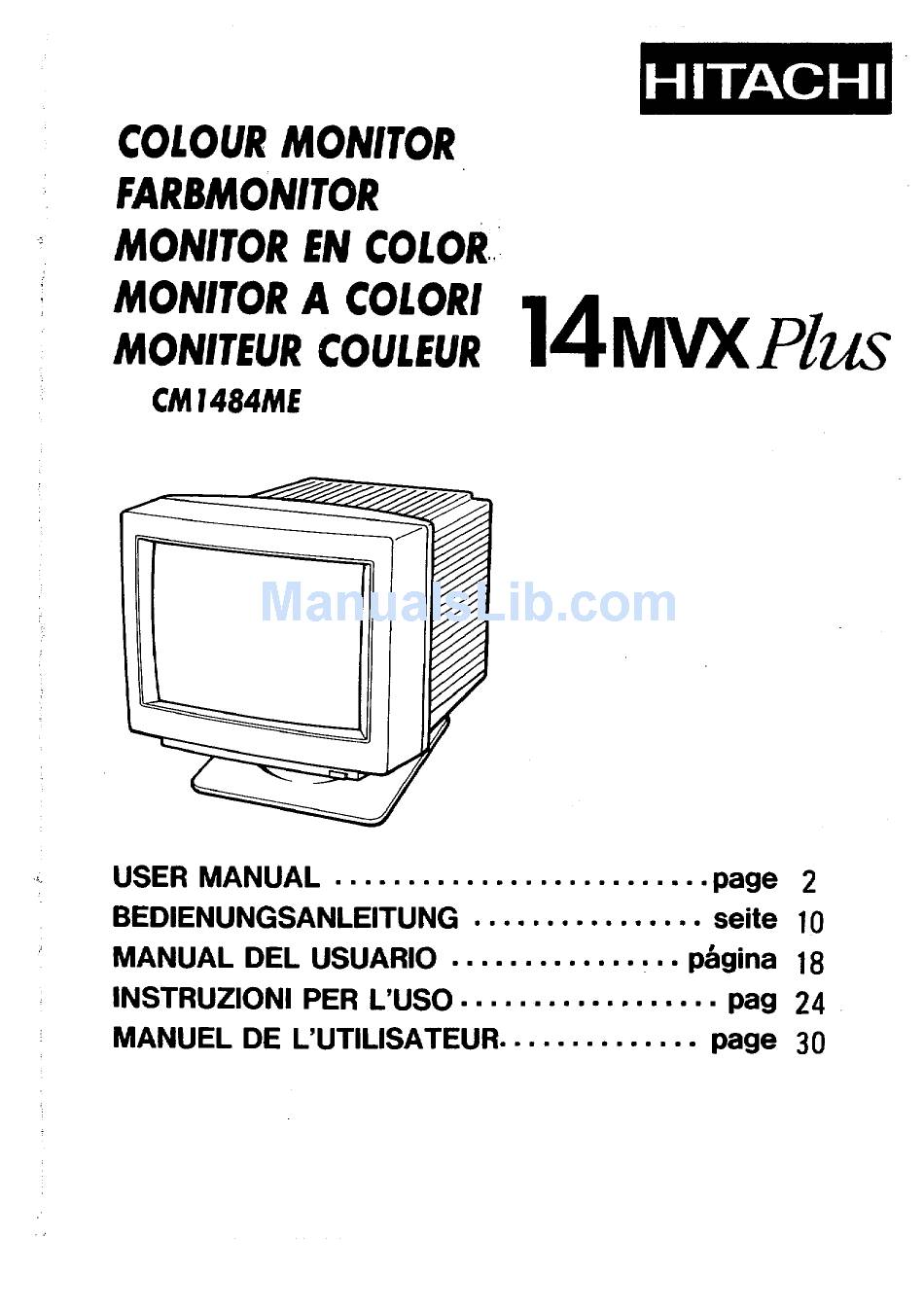

COLOUR
MONITOR
FARBMONITOR
MONITOR
EN COLOR
MONITOR
A COLORI
MONIIEUR
COULEUR
141vlvxPliA
CM1484ME
USER MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . .
page
BEDIENUNGSANLEITUNG
. . . . . . . . . . . . . . . .
seite
MANUAL DEL USUARIO
.= . . . . . . . . . . ..m.
pAgina
INSTRUZIONI PER L'USO . . . . . . . . . . . . . . . . . . pag
MANUEL DE L'UTILISATEUR . . . . . . . . . . . . . .
page
2
10
18
24
30

Advertisement

   Related Manuals for Hitachi 14MVXPlus CM1484ME

   Summary of Contents for Hitachi 14MVXPlus CM1484ME

  • Page 1

    COLOUR MONITOR FARBMONITOR MONITOR EN COLOR MONITOR A COLORI 141vlvxPliA MONIIEUR COULEUR CM1484ME USER MANUAL ......page BEDIENUNGSANLEITUNG .

  • Page 2

    Colour Monitor 14MVX Plus Operating Guide Features: The following features are provided with the HITACHI colour Monitor 14MVXPhS: Wide compatibility range of graphics standard, VGA, XGA, 8514/A, Super VGA, and Macintosh lIVideo Card.

  • Page 3

    For U.K. Customers THIS PRODUCT IS SUPPLIED WITH MAINS PLUG FOR USE IN MAINLAND EUROPE. THE U.K. PLEASE REFER TO THE NOTES ON THIS PAGE. NOTE: ELECTRICAL CONNECTION Your monitor requires an electrical supply of 240 volts – 50 Hertz shfkld be protected by a 5 amp fuse.

  • Page 4

    As the colours of the wires in your mains Iead in this equipment may not correspond with the markings identified with the terminals of your plug, proceed as follows: The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked...

  • Page 5

    @EIi@ NEVER REMOVE THE BACK COVER Removal of the back cover MUST be carried out only by quaMed personnel. This display monitor contains high voltages tilde. DO NOT USE IN HOSTILE ENVIRONMENTS DO NOT expose this d~lay monitor to rain or moisture to prevent electric shock or fwe hazard.

  • Page 6

    @PERATmG> Controls Rear View Front View (1) Power Switch Use this switch to power ON or OFF by pressing it. When the power is ON, green light on the knob turns on to indicate. (2) Contrast Control ((D) Use this to set the foreground brightness cf the screen. (3) Brightness Control (-,, ] Use this to set the background to black.

  • Page 7

    (6) Vertical Size [~] Adjust this contxol to the preferred height. (7) Vertical Position [Q Adjust this to place the display at the centre of the screen. (8) Signal Cable Connect the end of the cable to your computer. (9) Power Cord Tn-let Connector Insert proper power cord here.

  • Page 8

    OMPATIBILITY) 14MVX Plus is compatible with: 1. IBM P S/2 series computers with MCGA, VGA, XGA and 85 14/A graphics standards. Signal cable is conilgured as IBM 8514 monitor. 2. Most of the VGA and Super VGA standard graphics boards available for the PC, PC/AT,PS/2 and EISA bus computers.

  • Page 9

    @PECIFIcATIO@) 14(1 3V) inches diagonal, 0.28 mm dot pitch, Black matrix, Silica coated, Short Persistence. Video 0.7 Vpp Input Signal Sync: Separate H,V or Composite H/V lTL level or Sync on Green at 0.3 Vpp. Horizontal: 30 — 50 kHz Synchronization Vertical: 50 —IOOHZ...
