  • Page 1

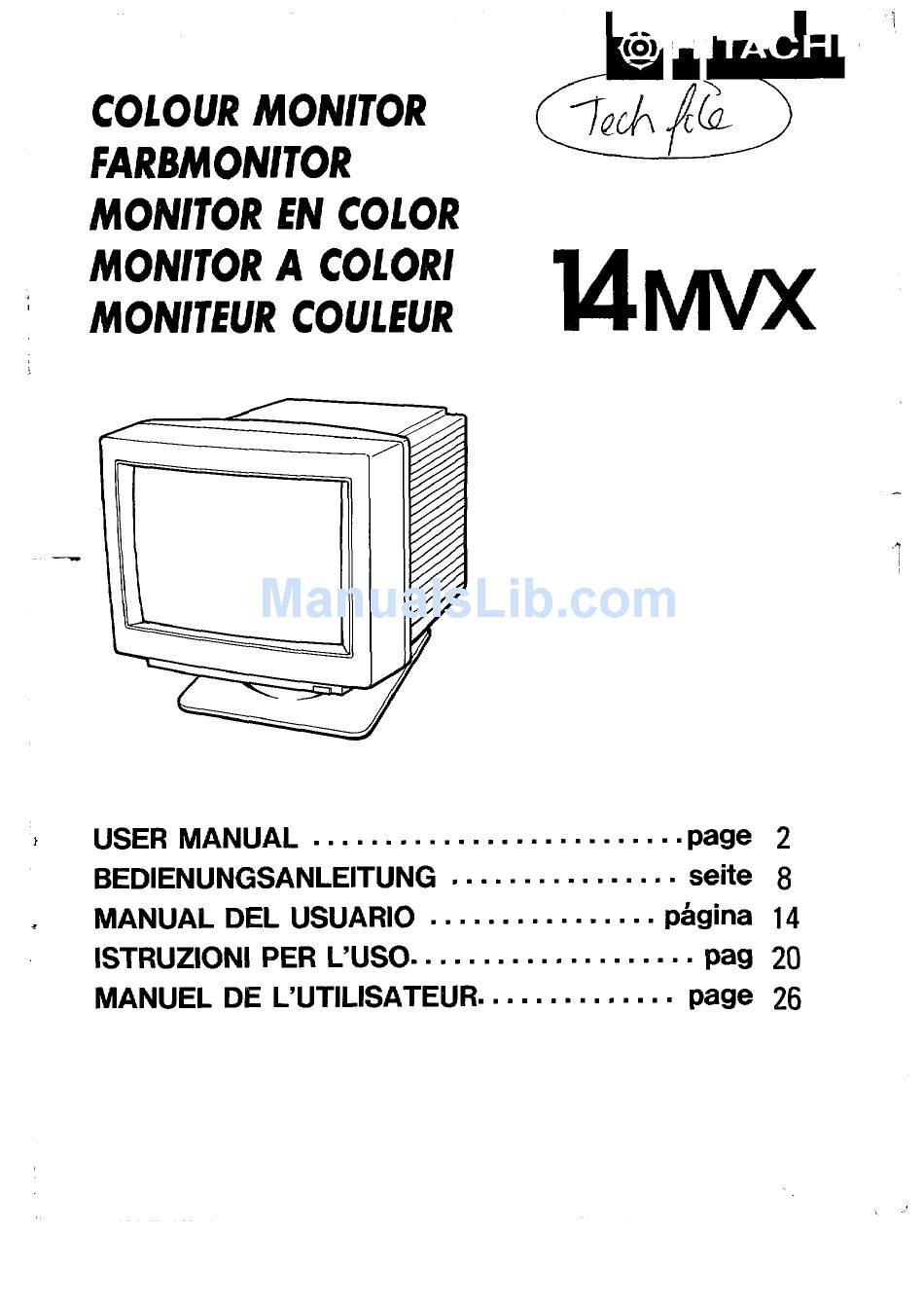

    COLOUR MONITOR FARBMONITOR MONITOR EN CO1OR MONI1OR A COLORI 14Mvx MOIWEUR COULEUR — ..ml==... =mpagege 2 USER MANUAL ..=..BEDIENUNGSANLEITUNG . =..=.. =..”= seite MANUAL DEL USUARIO ..m. m== E.m. =p&gina 14 lSTRUZIONI PER~USO= =.

  • Page 2

    ‘- NOTICE Tbe information in this d~ument is subject to change without notice. Hitachi assumes no responsibility for any errors that may appear in this docu- ment. COkmr Monitor 14MVX Operating Chide Features The following features are provided with the HITACHI colour Monitor 14MVX.

  • Page 3

    @EIi@ NEVER REMOVE THE BACK COVER Removal of the back cover MUST be carried out only by qualified personnel. This display monitor contains high voltages inside. DO NOT USE IN HOSTILE ENVIRONMENTS DO NOT expose this display monitor to rain or moisture prevent electric shock or fue hazard.

  • Page 4

    Adjust this control to the preferred horizontal width. If the width is too wide, part of information will be missed from the screen. (5) Horizontal Position Adjust this to place the display at the centre of the screen. 4 14MVX User Manual...

  • Page 5

    When you are using the monitor with Apple Macintosh II computer, please obtain an optional converter for Se-l connection from your dealer. Hitachi’s part number for convertec 2. Connect power cord to the monitor then to wall power outlet. USE PROPERLY APPROVED POWER CORD...HO5VVHZF.

  • Page 6

    PC/AT and EISA bus computers. Please ask your dealer for details. Apple Macintosh II computer with Macintosh Video Card. You have to obtain a 15 pinto 15 pin converter (Hitachi parts: SC-1 ) from your dealer. Connector Pin Assignment Pin# 9 No Pin...

  • Page 7

    (specifications’) 14(1 3V) inches diagonal, 0.28 mm dot pitch, Black matrix, Silica coated, Short Persistence. Input Signal Video: 0.7 Vpp Sync: Separate H,V or Composite H/V TTL level or Sync on Green at 0.3 Vpp. Synchronization Horizontal: 30 — 40 kHz Vertical 5O—1OOHZ Automatically...
