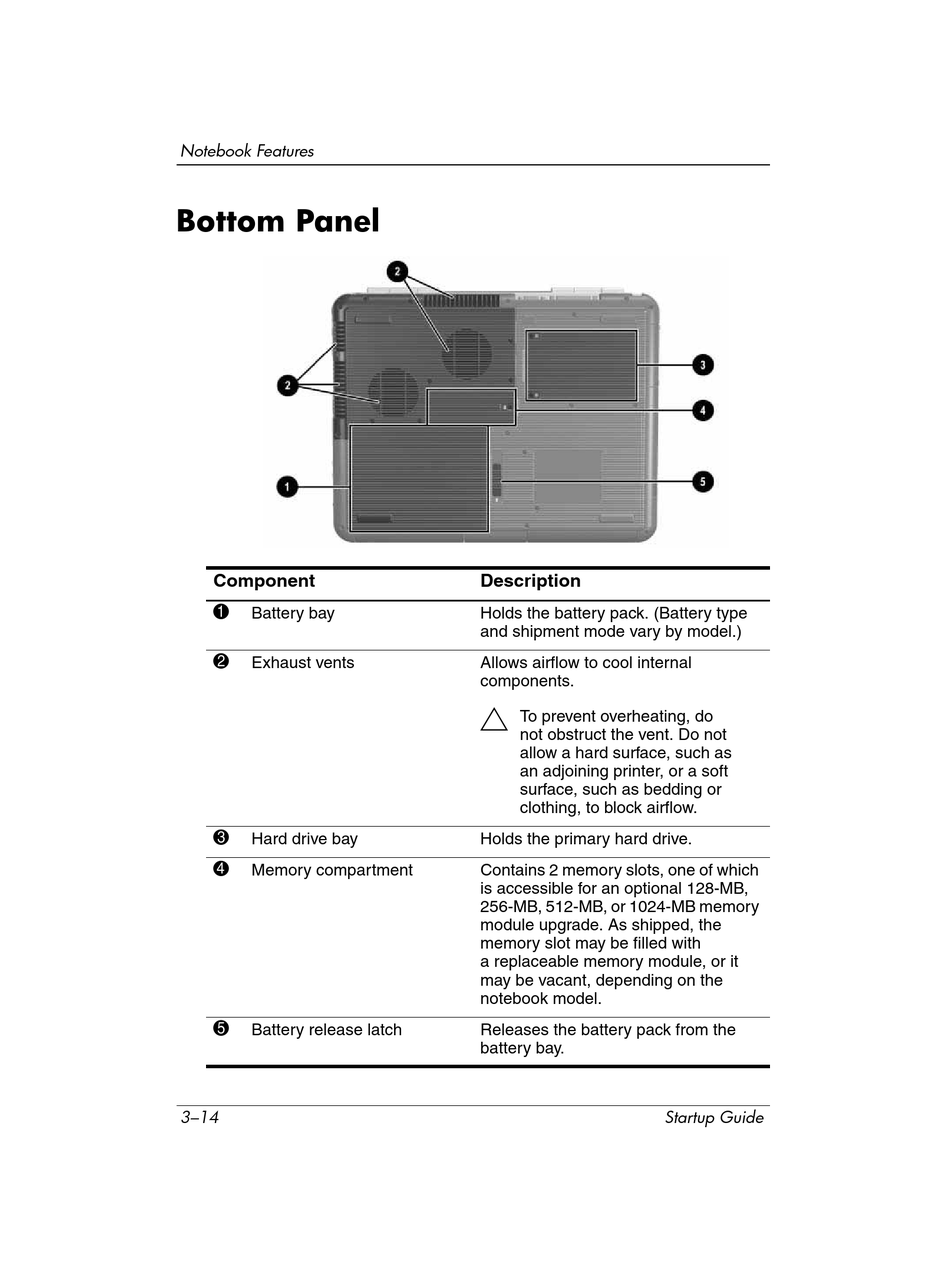

Notebook Features
Bottom Panel
1
Battery bay
2
Exhaust vents
3
Hard drive bay
4
Memory compartment
5
Battery release latch
3–14
Holds the battery pack. (Battery type
and shipment mode vary by model.)
Allows airflow to cool internal
components.
Ä
To prevent overheating, do
not obstruct the vent. Do not
allow a hard surface, such as
an adjoining printer, or a soft
surface, such as bedding or
clothing, to block airflow.
Holds the primary hard drive.
Contains 2 memory slots, one of which
is accessible for an optional 128-MB,
256-MB, 512-MB, or 1024-MB memory
module upgrade. As shipped, the
memory slot may be filled with
a replaceable memory module, or it
may be vacant, depending on the
notebook model.
Releases the battery pack from the
battery bay.
