Lightolier Lytespan 8611E Specification

Page 1 of 1
8
2"
1 1/8"

Catalog No.

Finishes
8611EWH Matte White
8611EBK Matte Black
8611EAL Aluminum

Features

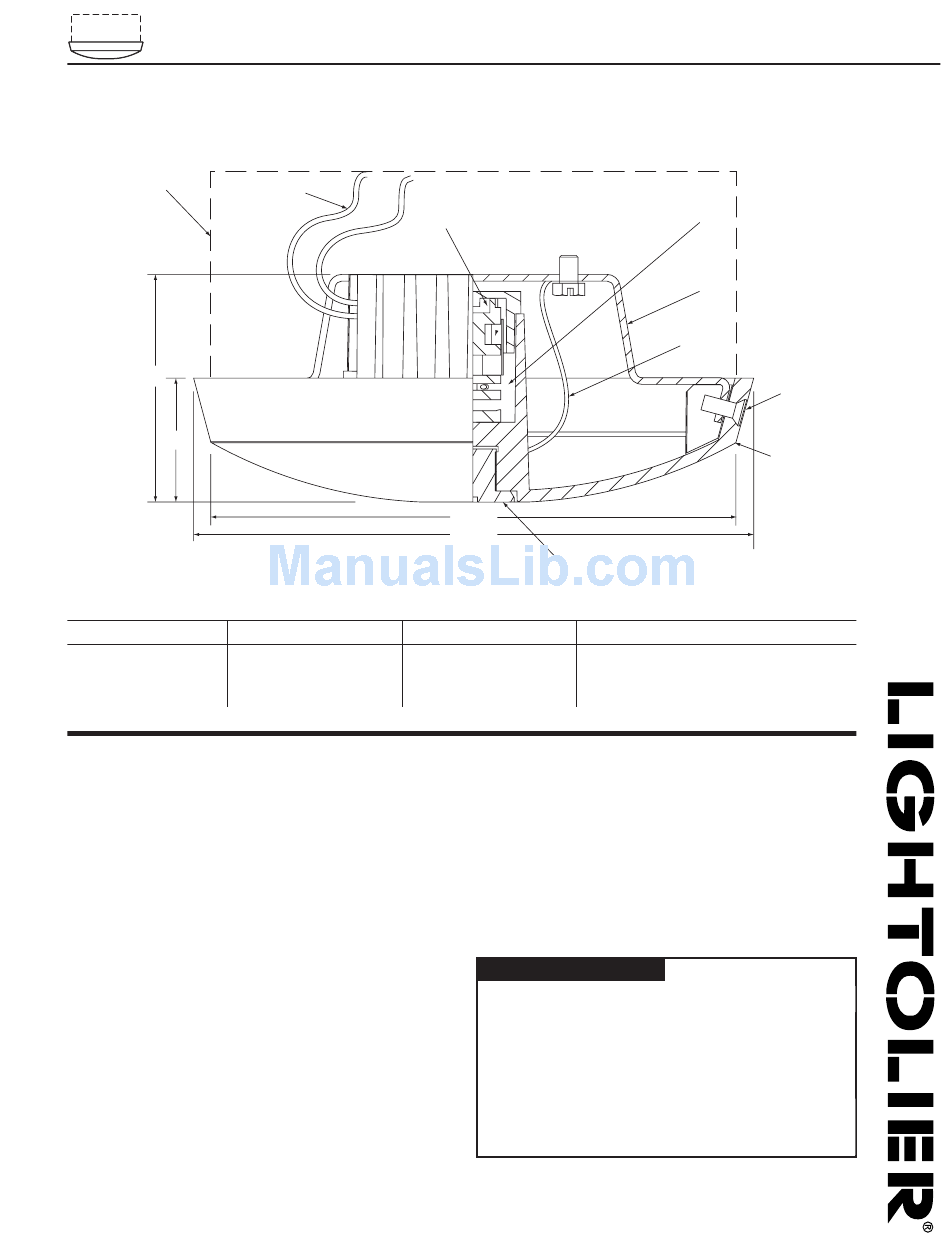

1. Canopy/Transformer Cover: Cast Aluminum. .1" nominal wall thickness
2. Mounting bracket: Steel, attached to J-Box for mounting PowerJack.
3. Plug Jack: Molded high heat resistant polymer. Accepts all LyteJack fix-
tures
4. Insulated Wires: To be attached to 120V 60Hz. Supply circuit. Supply wires
must be rated for minimum temperature of 75°C.
5. Plug Jack Support: Die-cast aluminum. Holds plug jack rigidly to ensure
proper engagement and operation of LyteJack fixtures.
6. Polycarbonate Stem Bushing: Accurately guides LyteJacks into plug jack.
When using Lytedrops, remove by using a coin such as a dime.
7. Mounting Screws: (2) Steel screws painted to match fixture color.
Attaches power jack to mounting bracket.
8. 4" Octagonal Outlet Box: (By others).
9. Insulated Ground Wire: 18Ga wire attached to canopy and connected to
the mounting bracket during insulation.

Electrical

60 Watt Class 2 low voltage (12V) Electronic transformer with auto-reset
thermal cut off. Supply circuit must be 120V-60Hz.

Dimming

Use only dimmers specifically designed for use with electronic transformers.
Low voltage fixtures may produce audible sound when dimmed.
Lytespan
4
3
4 11/16"
5"
Mounting
To 4" Octagonal
Outlet Box
Ceiling Mount
Accent Lighting System
®
6
Use With
Lytedrop or Focal Jack Luminaires
50W Max.

Finish

All painted finishes baked enamel.

Labels

UL; CUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
