Lightolier Lytecaster 1011 Specification

Page 1 of 2
6 3/4"
1
1011/1002P1 Series
Standard Incandescent
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit
1011
1001LED
Matte White
1000LEDREM
L56LED
Frame-In Kit
1002P1
1003R
1000P1
* Use Socket Extender Accessory with Short Neck

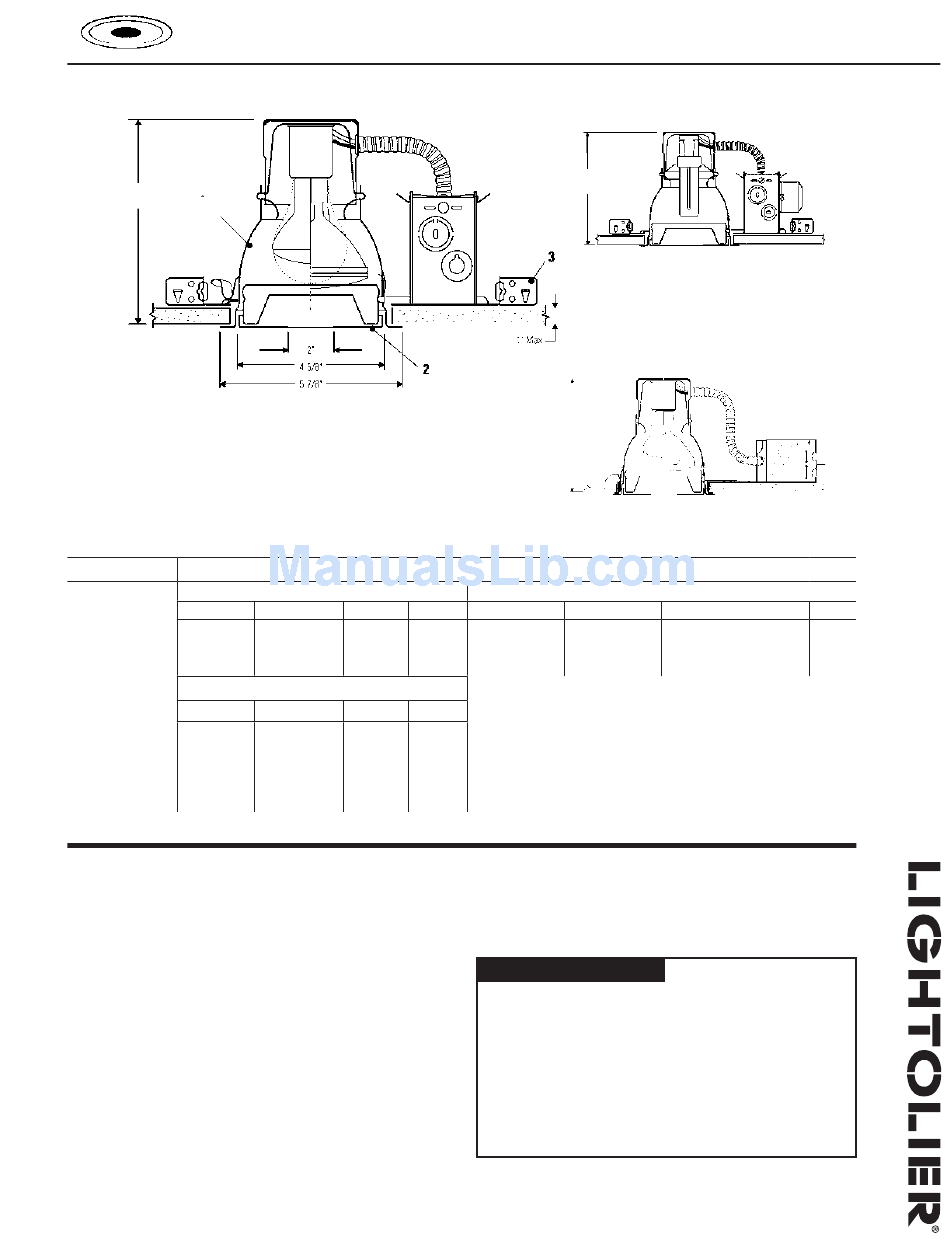

Features
1. Reflector: Hydroformed aluminum, .040" thick (18 ga.): Anobrite
(anodic-processed) semi-specular finish for permanent reflectivity;
matte white trim flange.
2. Aperture Plate: Die formed. 20 ga. steel, matte white finish. Inner shield,
welded to aperture plate; matte black finish, cuts off glare at normal viewing
angles.
3. Frame-In Kit: (1002P1 standard frame shown). Other frames listed
above and shown on the right. See Frame-In Kit specification sheet for more
details.
4. Relamping: Aperture plate snaps in and out on concealed
retaining springs. Ceiling flange remains fixed. Ceiling will not be chipped or
marred.
Options & Accessories
Retaining Clips: 1955 - For Installing in Existing Ceilings
Extra Wide Flange Trim Ring: 1957 - 7" O.D.
Medium-Base PAR30 1968 - For use w/short neck PAR30
Socket Extender:
Lytecaster
LED
Installation Type Lamping Height
Non-IC LED 6 3/4""
Non-IC Remodeler LED 6 3/4"
Non-IC Retrofit LED 6 3/4"
Incandescent
Ceiling Type Lamping Height
Non-IC 60W A19 6 3/4"
Non-IC 50W PAR30*
6 3/4"
Remodeler 50W R20
6 7/8"
Non-IC 75W A19
TM
lamps
Recessed Downlighting
®
6 3/4"
6 3/4"
Fluorescent
Frame-In Kit Ceiling Type
1910XFH1 Conversion Kit
Labels
UL (Suitable for Damp Locations), I.B.E.W
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
