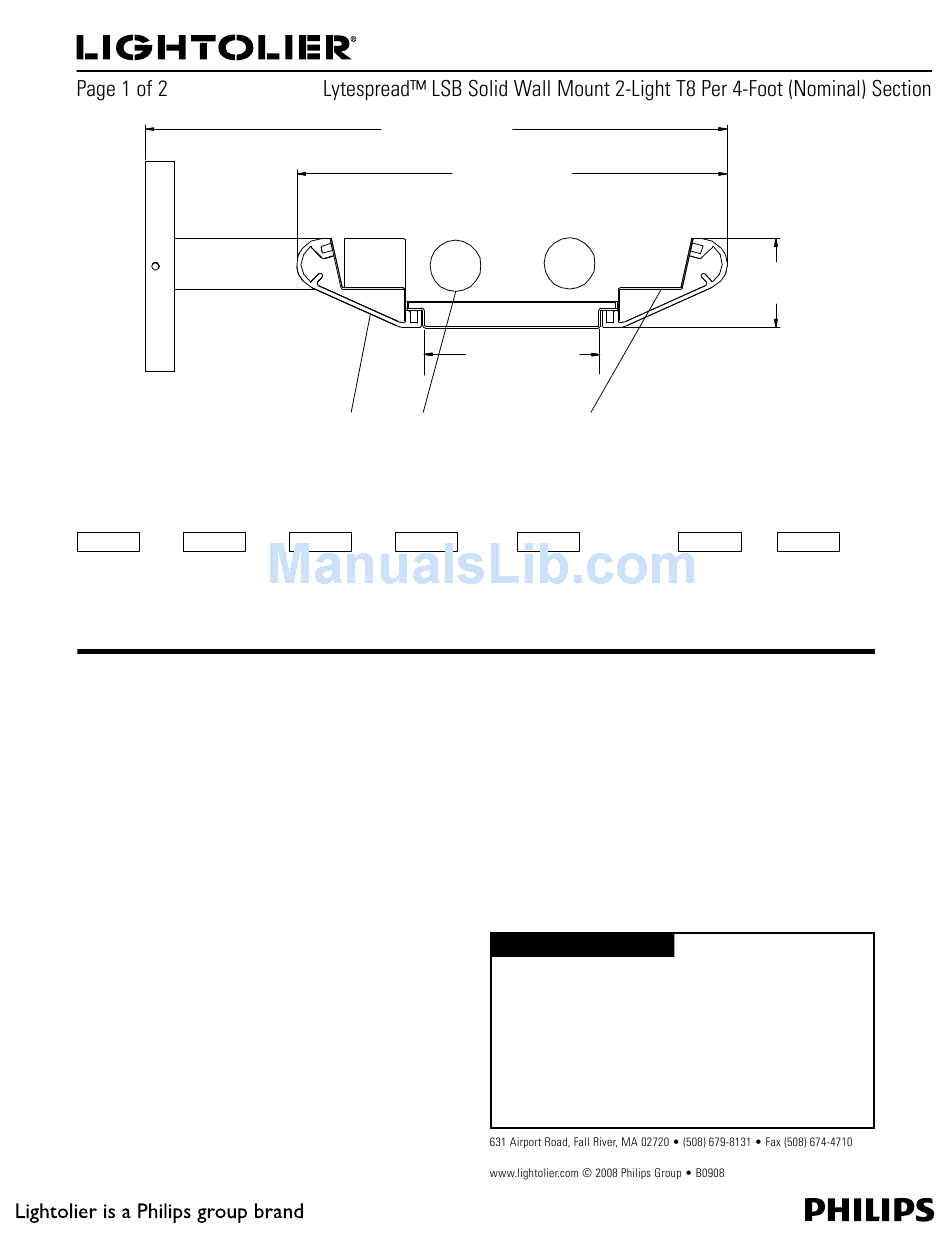

Lightolier LLighting Systems LSBW-4 Specification Sheet

Ordering Information
Type Lamps
LSBW 2
2 = 2-Lamp T8
Complete ordering instructions below.
Features
1. Housing: Extruded aluminum. Die-cast end cap mechanically attached with
no exposed fasteners or hardware.
2. Lamping: Two T8, 32 watt fluorescent lamps per 4-foot nominal section.
Provided by others.
3. Reflector: Precision die-formed, semi-specular aluminum.
Electrical
Ballast - <10% T.H.D., .98 ballast factor, pre-heat start. 18 gauge wire. Color-
coded quick connectors allow ease of connection for joiner modules. For special
circuiting, consult factory. Factory installed ballast disconnect allows the ballast
to be disconnected from and reconnected to incoming power under load without
turning the entire circuit off.
Dimming - 120/277 VAC, 1% dimming level.
Emergency Battery Pack - 32 Watt: 450 Lumens @ 90 min.
Mountings
Dual-screw, draw-tight connector to create hairline seam between joiner modules.
Finish
Powder coated baked white or aluminum finish.
Custom colors available, consult factory.
11-3/8" (28.89cm)
8-1/2" (21.59cm)
1 2
Length Shielding
A
4 = 4-Foot A = Solid
8 = 8-Foot

Lighting Systems

3-1/2" (8.89cm)
3
Ballast
32 = 32W T8
3E = 32W T8 Emergency Pack 2 = 277 Volt
3D = 32W T8 Dimming
Labels
UL, cUL and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order number of MODULES required.
2. Order one END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES to complete the run.
3. Order one END SET per run.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
LSBW-4
1-3/4"
(4.45cm)
Voltage Finish
1 = 120 Volt AL = Aluminum
WH = White
Type:
