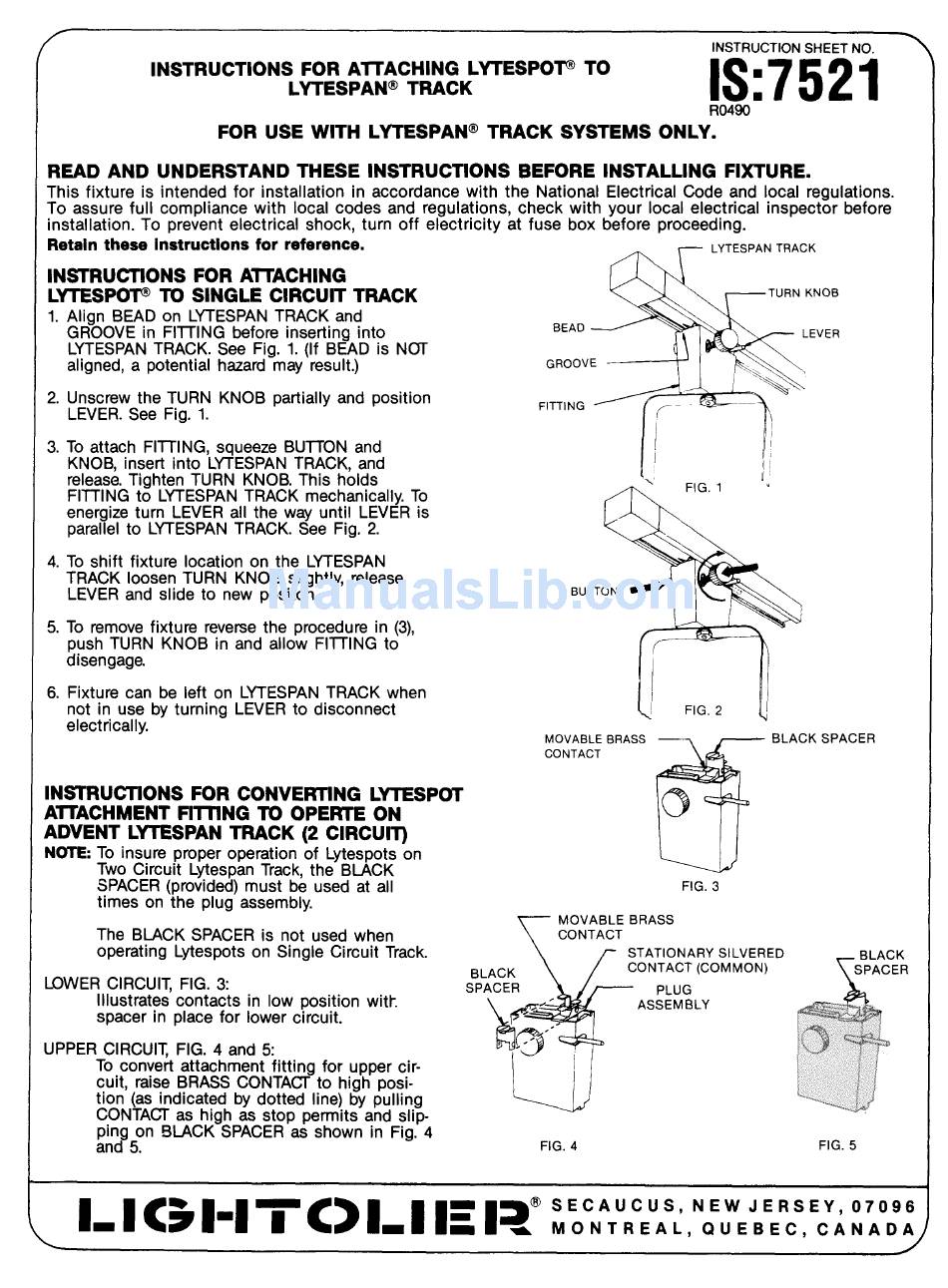

INSTRUCTION
SHEET NO.
INSTRUCTIONS
FOR AITACHING
LYTESPOV
TO
LYTESPAN@ TRACK
IS:7521
R0490
FOR USE WITH LYTESPAN@ TRACK SYSTEMS ONLY.
READ AND UNDERSTAND THESE INSTRUCTIONS
BEFORE INSTALLING FIXTURE.
This fixture
is intended
for installation
in accordance
with the National
Electrical
Code and local regulations.
To assure full compliance
with local codes and regulations,
check with your local electrical
inspector
before
installation.
To prevent electrical
shock,
turn off electricity
at fuse box before
proceeding.
Retain these Instructions for reference.
INSTRUCTIONS FOR AITACHING
LYTESPOF
TO SINGLE CIRCUIT TRACK
1.
2.
3.
4.
5.
6.
Align BEAD on LYTESPAN TRACK and
GROOVE in FllTING
before inserting
into
LYTESPAN TRACK. See Fig. 1. (If BEAD is NOT
aligned, a potential
hazard may result.)
Unscrew
the TURN KNOB partially
and position
LEVER. See Fig. 1.
To attach
FITTING, squeeze BUTTON and
KNOB, inserl into LWESPAN
TRACK, and
release. Tighten
TURN KNOB. This holds
FITTING to LYTESPAN TRACK mechanically.
To
energize turn LEVER all the way until LEVER is
parallel to LYTESPAN TRACK. See Fig. 2.
To shift fixture
location
on the LYTESPAN
TRACK loosen TURN KNOB slightly,
release
LEVER and slide to new positon.
To remove fixture
reverse the procedure
in (3),
push TURN KNOB in and allow FIITING
to
disengage.
Fixture can be left on LYTESPAN TRACK when
not in use by turning
LEVER to disconnect
electrically.
INSTRUCTIONS FOR CONVERrlNG
LYTESP~
Attachment
FllllNG
~
OPERTE ON
ADVENT LYTESPAN TRACK (2 CIRCUIT)
NOTE To insure proper operation
of Lytespots
on
Two Circuit
Lytespan Track, the BLACK
SPACER (provided)
must be used at all
times on the plug assembly.
The BIACK
SPACER is not used when
operating
Lytespots
on Single Circuit
Track.
LOWER CIRCUIT
FIG. 3:
Illustrates
contacts
in low position
with.
spacer in place for lower circuit.
UPPER CIRCUIT
FIG. 4 and 5:
To convert attachment
fitting
for upper cir-
cuit, raise BRASS CONTA(X
to high posi-
tion (as indicated
by dotted
line) by pulling
CONTA~
as high as stop permits
and slip-
ping on BLACK SPACER as shown
in Fig. 4
and 5.
1
LYTESPAN TRACK
BEAD
\
GROOVE
FITTING
BUTT
MOVABLE
BRASS
CoNTACT
XBLACKS'ACER
~
FIG.
3
T
MOVABLE
BRASS
CONTACT
D
FIG. 4
FIG. 5
