7
-.,,
)

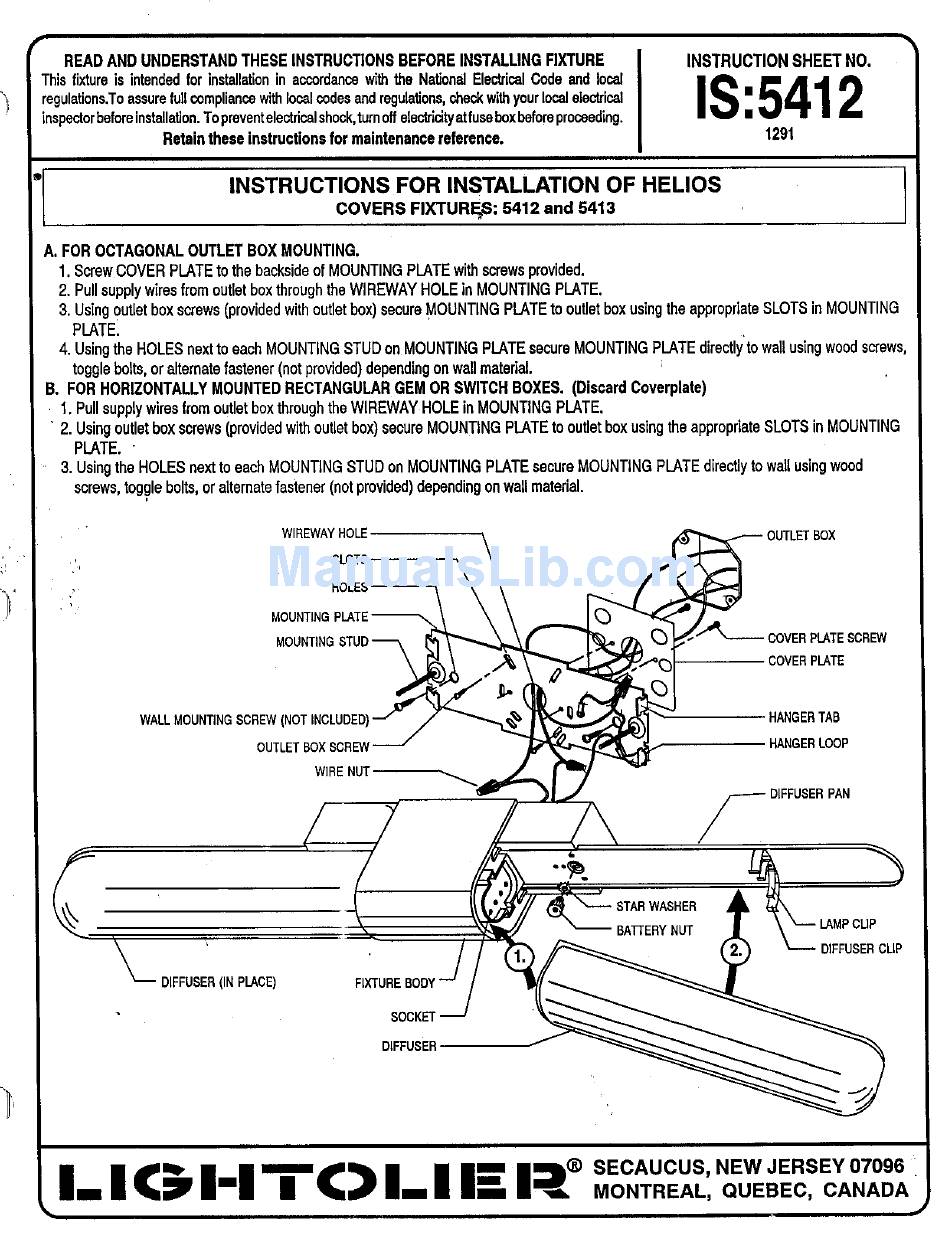

READ AND UNDERSTAND THESE INSTRUCTIONSBEFORE INSTALLING FIXTURE
INSTRUCTION SHEET NO.
is fixture is intended for installationin awordanca with the National Electrical Code and fosaf
gulations.To aaaure full compliance with local cades and regulations, chedr with your local electrical
speator before installation. To prevent electrio-elshock, turnoff elestriahy at fuse b-axbefore proceeding.
IS:5412
Retain these instructions
for maintenance
reference.
1291
INSTRUCTIONS
FOR INSTALLATION
OF HELIOS
COVERS FIXTUR~
5412 and 5413
. FOR OCTAGONAL OUTLET BOX MOUNTING.
1. ScrewCOVER PLATEto the backsideof MOUNTINGPtATE withscrewsprovided.
2. Pullsupplywires from outlet box through tha WIREWAY HOLE in MOUNTING
PLATE.
3. Using outlet box screws (provided with outlet box) secure MOUNTING
PfATE to outlet box using the appropriate SLOTS in MOUNTING
PIATE.
4. Using the HOLES next to each MOUNTING STUD on MOUNTING
PLATE secura MOUNTING
PLATE directly'to wall using wood scfews
toggle bolts, or alternate fastener (not provided) depending on wall material.
. FOR HORIZONTALLY
MOUNTED RECTANGULAR
GEM OR SWITCH BOXES.
(Diecard Coverplate)
i. Pull supply wires from outtet box through the WIREWAY HOLE in MOUNTING
PLATE.
2. Using outlat box acrewa (providad with outlet box) secure MOUNTING
PLATE to outlet box using the appropriate SLOTS in MOUNTING
PL4TE.
3. Using tha HOLES naxi to aach MOUNTING
STUD on MOUNTING
PLATE secure MOUNTING
PLATE directly to wall using wood
screws, toggle bolts, or alternate fastener (not provided) depending on wall material.
