Lightolier Lytespan 23F20BT Specification

Page 1 of 2
9

Ordering Information

Catalog No.

Finish

23F20BTAL Aluminum
23F20BTBK Black
23F20BTWH
White

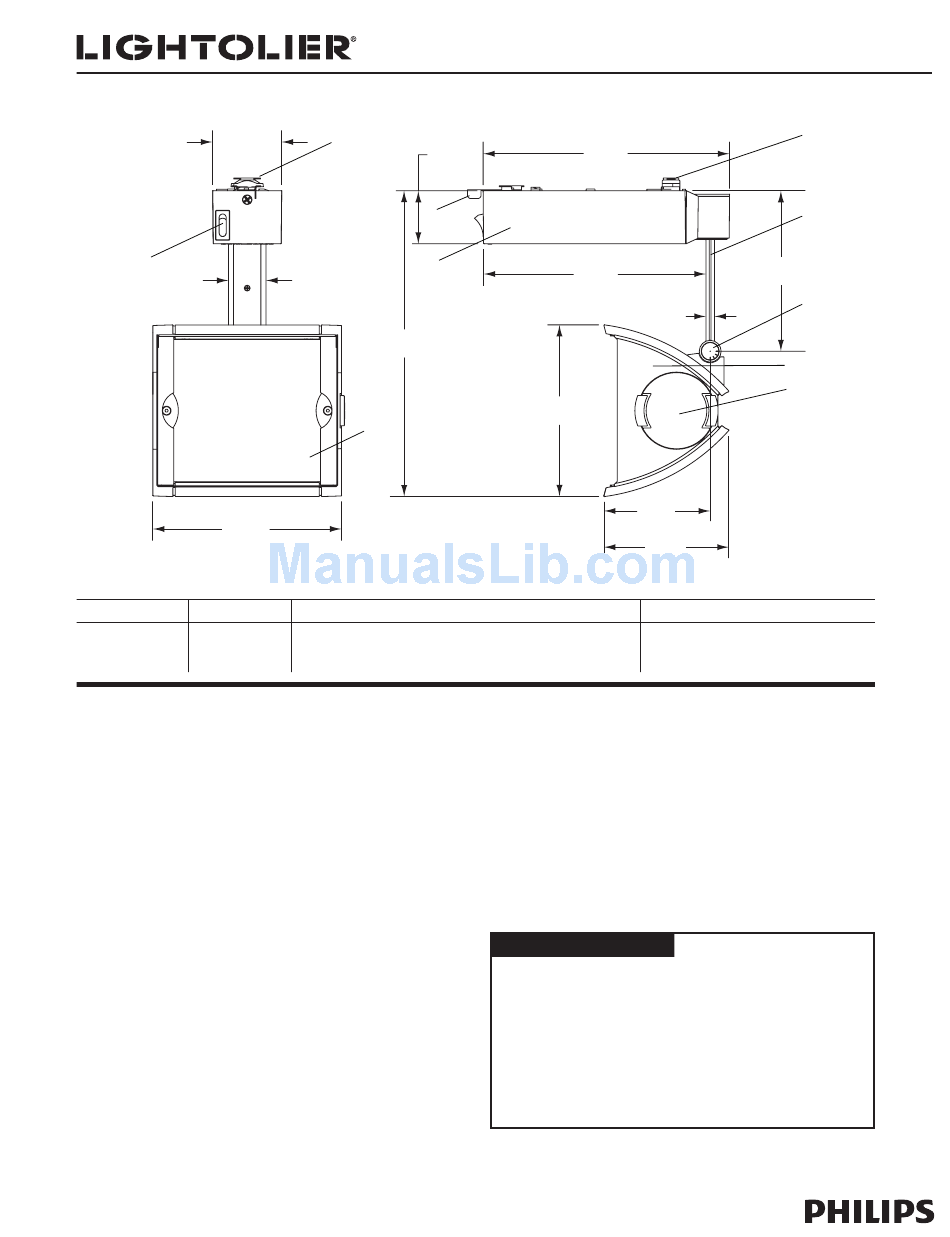

Features

1. Track Attachment Fitting: Locking lever for mechanical/
electrical connection.
2. Brass Contact: Extends for connection to second circuit (Advent track only).
3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation.
Position may be locked using an allen key.
4. Vertical Pivot: 0-90° vertical adjustment with aiming indicator. Position
may be locked using an allen key.
5. Fixture Housing: Die cast aluminum
6. Ballast Housing: Molded polycarbonate
7. Lamp Cartridge: Allows easy side relamping without removal of
glass shield.
8. Safety Lens: Tempered 1/8" glass. Meets or exceeds UL safety requirement
for metal halide lamps.
9. On/Off Switch: Rocker switch to disconnect power to the ballast.
10. Safety Locking Lever: Locks ballast housing to track.
Finish
All Painted finishes are baked enamel.

Accessories

Visor: 22VZ4AL, 22VZ4BK, 22VZ4WH
Lightolier is a Philips group brand
1 15/16"
2
[50 mm]
1 1/16"
[27 mm]
8 11/16"
[220 mm]
8
5 3/8"
[136 mm]
Mounting
For use with Lytespan Radius, Basic and Advent Track. Not compatible
with extension wands or slope ceiling adapters. For monopoint
applications refer to spec sheet 6171.
Lytespan Track Lighting System
®
7"
1 1/2"
[178 mm]
[38 mm]
10
6
6 5/16"
[160 mm]
4 7/8"
[124 mm]

Electrical

Electronic Ballast
Input Voltage: 120V
Power Factor: 0.9
Input Power: 26W
Max. Input Current: 0.23A
ANSI Code: C175/E
Do not use on dimming circuit.

Labels

UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0508
23F20BT
Alcyon HID 20W CDM-Tm PGJ5
1
3
4 9/16"
[116 mm]
4
1/4"
[6 mm]
5
7
3"
[77 mm]
3 9/16"
[90 mm]
Lamps
22W BT-5 PGJ5 Base Ceramic Metal Halide
20W CDM-TM PGJ5
Philips
Type:
