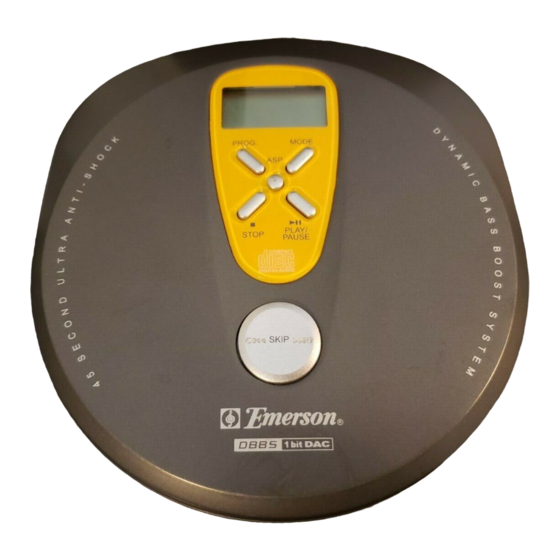

- Page 1 PERSONAL CD, CD-R/RW PLAYER with 45 SECOND JOGGABLE ANTI-SKIP PROTECTION and EXTENDED BATTERY LIFE OWNER’ S MANUAL HD7097 Visit our web site at www.emersonradio.com HD7097_ib060702.p65 7/6/2002, 15:05...
- Page 2 Thank you... For purchasing this Emerson Personal CD, CD-R/RW Player. It has a 24 track programmable memory so you can listen to the songs on your favorite CD's in any order you choose. Or you can use the Random playback feature and let the player select the playback order for you.
-
Page 3: Important Notes
IMPORTANT NOTES WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Avoid installing the unit in locations described below: • Places exposed to direct sunlight or lose to heat radiating appliances such as electric heaters. CLASS 1 LASER PRODUCT CLASS 1 LASER PRODUCT APPAREIL Á... -
Page 4: Location Of Controls And Indicators
2.) VOLUME (+ / – ) Buttons – Raises or lowers the volume. 3.) PHONES (Headphone) Jack – Connect stereo headphones, included, to this jack. 4.) LINE OUT Jack – To connect this CD player to an external amplifier or recording device. Connection cable not included. 5.) STOP Button –... -
Page 5: Lcd Display Indicators
LCD DISPLAY INDICATORS 1.) INTRO Indicator – Appears when Intro playback mode is selected. 2.) RAND (Random) Indicator – Appears when Random playback mode is selected. 3.) PROG (Program) Indicator – Appears when programming tracks or playing programmed tracks. 4.) VOL (Volume) Indicator – Appears when pressing VOLUME + /– buttons. 5.) Track Number/Volume Level Display –... -
Page 6: Power Source
POWER SOURCE This CD player can be operated on either 120V 60Hz AC house current with an optional AC adapter (not included) or on 3V DC (2 "AA" batteries, not included). BATTERY OPERATION 1.) Open the battery compartment door on... - Page 7 AC OPERATION (AC Adapter not included) Connect the AC adapter to your 120V AC outlet. Then connect the small plug to the "DC IN 4.5V" jack on the back of the player as shown in the following illustration. NOTE: This optional AC adapter, should be rated as follows: Input : 120V / 60Hz AC.
-
Page 8: Normal Playback
OPERATING INSTRUCTIONS NORMAL PLAYBACK 1.) Connect the headphones to the PHONES jack. Set the VOLUME control to a low level before you begin playback and then adjust the volume to a comfortable level after playback begins. 2.) Slide the CD Door OPEN switch to the right to release the lock and open the CD Door. - Page 9 AUTO-RESUME PLAYBACK This feature allows you to stop playback completely at any point on the disc and then resume playback at the beginning of that same track automatically, as long as the same disc remains in the player and power is not disconnected. Press the STOP button to stop playback at any point on the disc, but do not remove the disc from the player or open the CD Door.
-
Page 10: Repeat Playback
REPEAT PLAYBACK To repeat a single track: 1.) Press PLAY/PAUSE 2.) When playback begins press SKIP button to select the desired track. 3.) Press the MODE button once until the Repeat 1 “ ” indicator appears in the display. The selected track will be repeated indefinitely. -
Page 11: Intro Scan
RANDOM PLAYBACK Use Random playback to play all the tracks on a disc in a random order selected by the CD player. 1.) Press PLAY/PAUSE 2.) When playback begins press the MODE button 4 times until the “RAND”... -
Page 12: Programmed Playback
PROGRAMMED PLAYBACK You can program the player to play only the tracks that you want to hear, in the specific order that you want to hear them. Up to a total of 24 tracks can be programmed. You may program certain tracks to play more than once if desired. IMPORTANT: The player can only be programmed when it is in the Stop mode and the total number of tracks and playing time appear on the display. - Page 13 “JOGGABLE” ELECTRONIC ANTI-SKIP PROTECTION This CD player is equipped with an automatic “Joggable” 45 second Electronic Anti-Skip Memory and an Anti-Rolling Mechanism that will eliminate virtually all skipping under normal conditions. The joggable anti-skip circuitry provides a much faster recovery time than previous anti-skip systems. The recovery time is shorter than the time between steps for the average jogger.
- Page 14 CONNECTION TO AN EXTERNAL AUDIO SYSTEM You can connect this CD player to a home stereo system, receiver, amplifier, or recorder if desired. Connect the LINE OUT jack of this CD player to the Left/Right Auxiliary Inputs, Line Inputs, or Record Inputs of the external device.
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE CLEANING THE CABINET Wipe with a soft cloth. If the cabinet is very dirty, dampen the cloth with a weak solution of neutral detergent and water, and then wipe clean. CLEANING THE LENS A dirty lens will cause sound skipping and, if the lens is very dirty, the CD may not work. -
Page 16: Troubleshooting Guide
‘ Care and Maintenance’ Reinsert headphone plug correctly. Raise volume controls on main unit and/or headphone cable. Replace batteries. Try another disc. Clean or replace disc. PLEASE CALL: 1-800-898-9020 Emerson Radio Corp. Consumer Affairs Dept. 1901 Diplomat Drive, 7/6/2002, 15:05... -
Page 17: Limited Warranty
EMERSON RADIO CORP. LIMITED WARRANTY What does this warranty cover ? Any manufacturing defects in original material, including original parts and workmanship, under normal use and conditions. For how long? For a period of ninety (90) days from the date of original purchase in the U.S. - Page 18 EMERSON RADIO CORP. EMERSON PART NO. :16-2868 PRINTED IN CHINA 206-01 HD7097_ib060702.p65 7/6/2002, 15:05...
