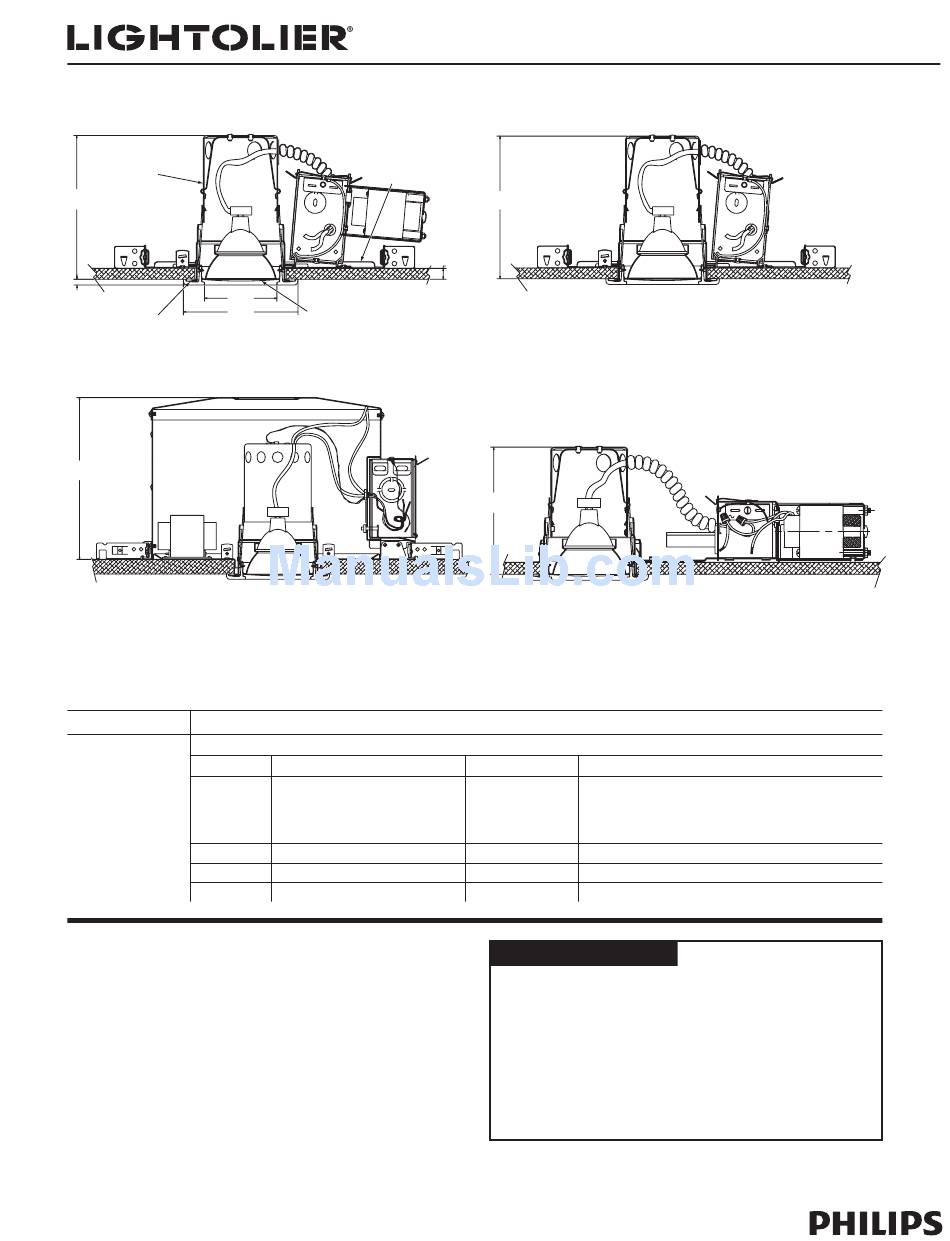

Lightolier Lytecaster 2090LV Specification

Page 1 of 1
1
4 11/32"
1/4"
2
7 1/4"
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit
2090LV 2000LV
2000LVR
2000LVE1
2000LVE2
2004ICV/N
2000LVNT
2000AICV
Features
1. Housing: Hydroformed aluminum, .040 thk. min. non-yellowing gloss white
powder coat housing finish for permanent reflectivity and surface protection.
2. Trim Flange: Frosted clear polycarbonate flange ring. Pull down and release for
toolless relamping.
3. Frame-In Kit: (2000LV standard frame shown) Other frames noted.
See Frame-In Kit specification sheets for more details.
4. Glass: Pressed borosilicate glass textured diffuser. Smooth surface on exposed
side for wipe down cleaning. Meets NEC
May be installed less than 7' 6" above max water surface height.
Labels
UL (Suitable for Wet Locations - Covered Ceilings only), I.B.E.W.
Lightolier is a Philips group brand
2 7/8"
4 5/8"
4
2090LV/2000LV Series
Standard MR16
2090LV/2004ICV/N
0
AirSeal Insulated Ceiling
®
™
Low Voltage
Installation Type
Standard Non-IC
Remodeler Non-IC
Electronic Low Voltage Non-IC 120V
Electronic Low Voltage Non-IC 277V
Lytening AirSeal IC
®
Non-IC (no transformer)
AirSeal IC
®
requirements for spas and hot tubs.
®
Lytecaster Recessed Downlighting
®
3 3/4" Aperture MR16 Flush Glass Wet Location Trim
3
4 11/32"
1" MAX.
4 11/32"
2090LV/2000LVR
Remodeler
Lamping
20W-50W MR16
20W-37W MR16
20W-50W MR16
20W-37W MR16
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • G0808
2090LV/2000LVNT
Low Voltage Remote Transformer
Height
4 11/32"
4 11/32"
4 11/32"
4 11/32"
7 1/4"
4 11/32"
7 5/16"
Type:
2090LV
