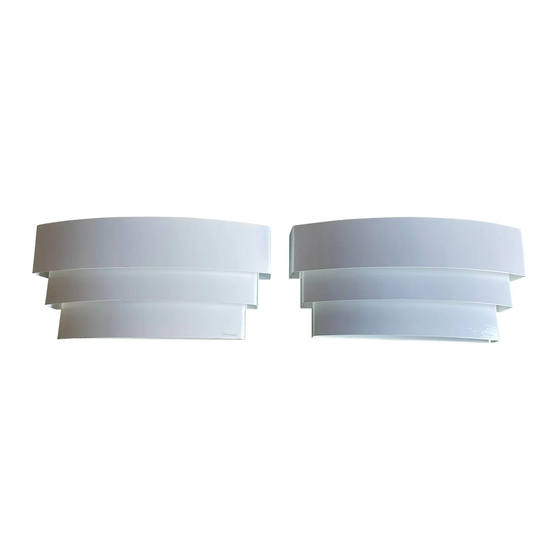

Lightolier A.D.A. TRIO FIXTURES Instructions For Installation

READ
AND UNDERSTAND THESEINSTRUCTIONS BEFORE INSTALLING FIXTUFIE INSTRUCTION SHEE
ISfwra is
intesdedfor installationin acznrdance with tha National Electrical Code and Ictal regulations.
assura full compliance witi local ccdas and regulations, thack with your Id electrical inspactor before
tallation. To prevent elmtricel shcck, turn off elwtrici~ at fuw box bafora proceeding.
IS:40616
Retainthese irretrarctimra for maintenancereference.
R0194
Page 10
INSTRUCTIONS FOR INSTALLATION OF A.D.A. TRIO FIXTURES.
COVERSFIXTURES 4tM16WH,4(K16WHE1,40616WHE2,4W16WHN1, 40616WHH1,40616WHN2,
40616sB, 4W16SBE1,40616SBE2,40616SBN1,4LW16SBH1, 40616sBN2,
40616SC,40616SCEl, 40616SCE2, 4 0616SCN1,40B16SCH1 AND 40616SCN2
NOTE This instructionsheetcoversbothcompactfluorescentand incandescent t ypafirrturea. A lthoughilhretrati(
showscompactfhaorescant v ersion,the incandescent v ersionassambles and installstha sama.
IACKPIATE INSTALLATION:
1. Loosan two MOUNTING SCREWS in LOWER MOUNTING BRACKFE and ramove OIFFUSER ASSEMBLY by pulling OIFFUSER ASSE
from LOWER MOUNTING BRACKETS and unhooking ASSEMBLY from two UPPER MOUNTING BRACKETS (Fig. 1, Fig. 2 and Fig. 3).
2. Thraad CROSSBAR MOUNTING SCREWS into CROSSBAR as shown in Fig. 1.
3. Using appropriate slots in CROSSBAR, sacure CROSSBAR to OUTLETBOX using OUTLET BOX SCREWS (providad with OUTLET 60)
4. While supporting BACKPLATEmaka connations black fisture laad or fixtura Iaed without trmar marks to hot (black) supply Iaad; v
lead or fisture lead with tracar marks to nautral (white) supply Iced. Uninsulated fklura wire is a ground wire and must be connect,
grounding tarminal or connections back into OUTLET BOX.
5. Position BACKPU+TE over CROSSBAR allowing CROSSBAR MOUNTING SCREWS to coma through holas in BACKPLATE.
CAUTION: Make certain wires ara not pinched between parts.
6. Sacure BACKPL4TE byinstalling t wo BA~ERYNUTSoverCROSSBAR MOUNTING SCREWS andtighten.
7. Installracommendad lamp(s).
CAUTION
MAXIMUM WAITAGE AS MAFIKEDON FIXTUREMUST NOT BE EXCEEOEO.
