Lightolier Lytespan 8608 Specification

Page 1 of 1
Catalog No. Mounting
8608
Recess in accessible ceiling. Access above ceiling required
Insulation must be kept 3" away from transformer sides
and wiring compartment; and must not be placed above unit
as to entrap heat.

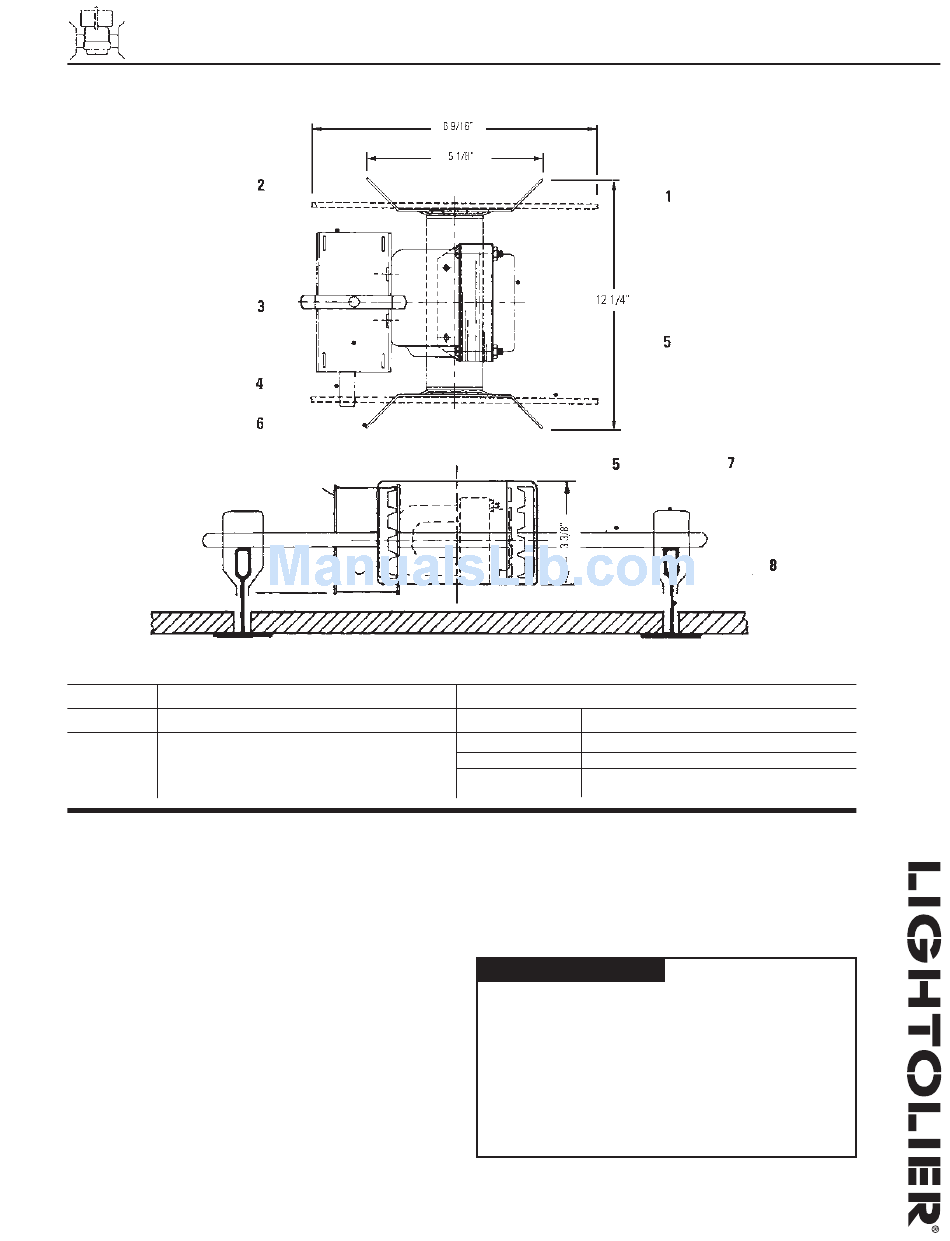

Features
1. Transformer: Magnetic type, 75W, 120V or 277V input, 12V output.
2. Steel Splice Box: Contains knockouts for conduit.
3. Divided Wiring Compartment: Contains taps for 120V or 277V supply and
secondary wires from transformer.
4. Thermal Protector
5. Mounting Bar: (See Accessories).
6. Steel Mounting Brackets: Used with mounting bars (order separately) for
mounting onto ceiling runners.
7. T-Bar Clips
8. Ceiling Runner
Electrical
Low voltage magnetic transformer, 120V or 277V input, 12V output, powers
any Point Power Jack. The transformer is limited to a total load of 75W or (2)
Point Power Jacks, whichever is fulfilled first. Thermally protected. Type Non-IC.
Requires min. 75°C supply wires. Use only dimmers specially rated for induc-
tive loads (low voltage fixtures equipped with magnetic transformers) such as
Lightolier Lytemode and Scenist systems and Lightolier dimmers carrying the
suffix VA.
Lytespan Accent Lighting System
®
Accessories (Order Separately)
Catalog No. Description
1950
18" Mounting Bars (Set of 2)
1951 27" Mounting Bars (Set of 2)
1956 T-Bar Clips (Set of 4)
Labels
UL; I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • B1106
