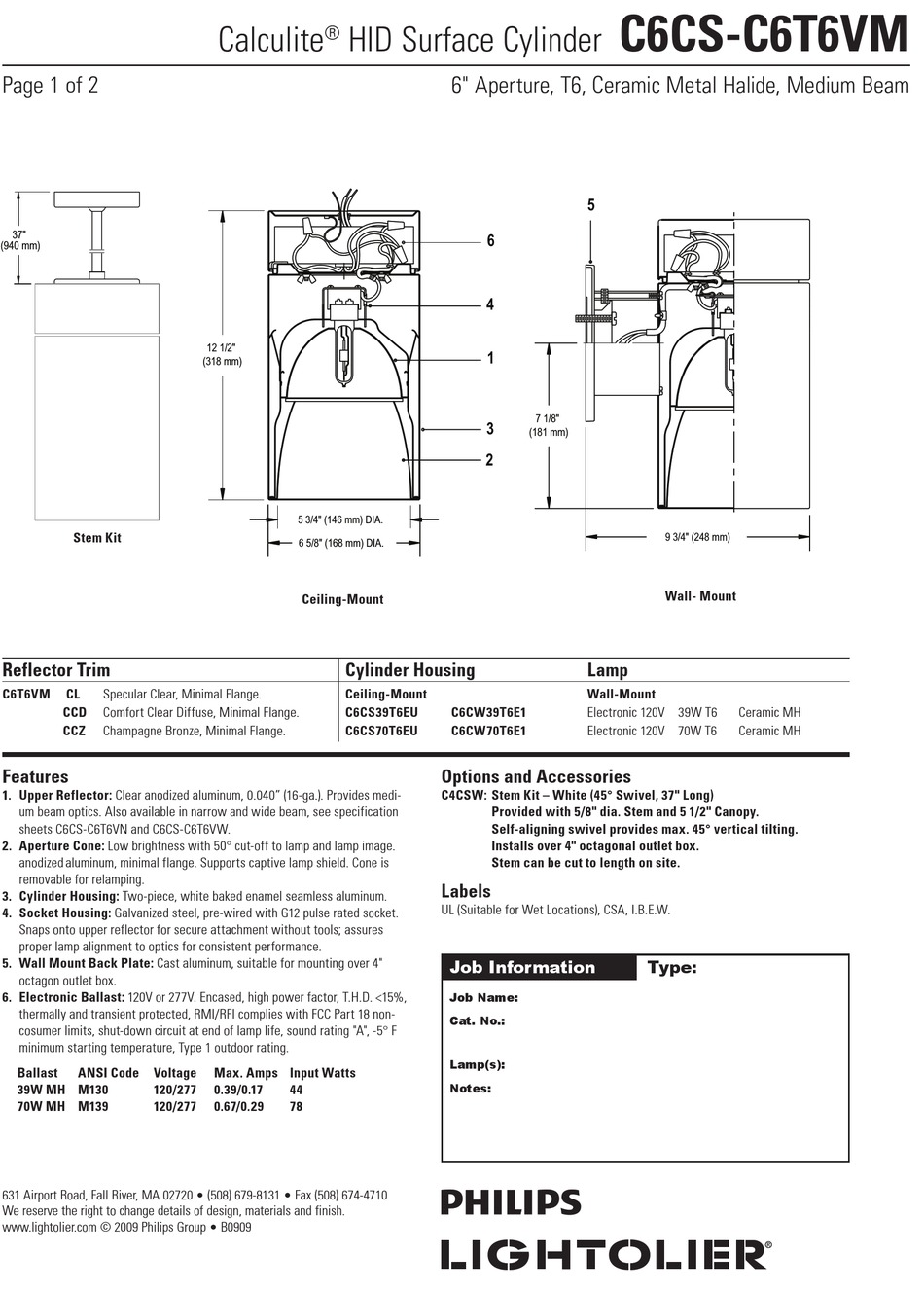

Lightolier Calculite C6CS-C6T6VM Specification

Page 1 of 2
37"
(940 mm)
Stem Kit
PJF April 22, 04
Rev. S. Ng June 3, 04
Scale: 0.25" = 1"
Reflector Trim
C6T6VM CL
Specular Clear, Minimal Flange.
Catalog & Web
CCD Comfort Clear Diffuse, Minimal Flange.
CCZ Champagne Bronze, Minimal Flange.

Features

1. Upper Reflector: Clear anodized aluminum, 0.040" (16-ga.). Provides medi-
um beam optics. Also available in narrow and wide beam, see specification
sheets C6CS-C6T6VN and C6CS-C6T6VW.
2. Aperture Cone: Low brightness with 50° cut-off to lamp and lamp image.
anodized aluminum, minimal flange. Supports captive lamp shield. Cone is
removable for relamping.
3. Cylinder Housing: Two-piece, white baked enamel seamless aluminum.
4. Socket Housing: Galvanized steel, pre-wired with G12 pulse rated socket.
Scale: 75% of spec. sht. dwg; arrow / text same saize as spec. sht.
Snaps onto upper reflector for secure attachment without tools; assures
proper lamp alignment to optics for consistent performance.
5. Wall Mount Back Plate: Cast aluminum, suitable for mounting over 4"
octagon outlet box.
6. Electronic Ballast: 120V or 277V. Encased, high power factor, T.H.D. <15%,
thermally and transient protected, RMI/RFI complies with FCC Part 18 non-
cosumer limits, shut-down circuit at end of lamp life, sound rating "A", -5° F
minimum starting temperature, Type 1 outdoor rating.
Ballast ANSI Code Voltage
39W MH M130 120/277
70W MH M139 120/277
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0909
Calculite HID Surface Cylinder
®
12 1/2"
(318 mm)
5 3/4" (146 mm) DIA.
6 5/8" (168 mm) DIA.
Ceiling-Mount
Cylinder Housing
Ceiling-Mount
C6CS39T6EU
C6CS70T6EU
Dwg not
12-1/2"
7 1/8"
6 5/8"
Max. Amps Input Watts
0.39/0.17 44
0.67/0.29 78
6" Aperture, T6, Ceramic Metal Halide, Medium Beam
5
6
4
1
7 1/8"
3
(181 mm)
2
Lamp
Wall-Mount
Carton Label
C6CW39T6E1 Electronic 120V 39W T6
C6CW70T6E1 Electronic 120V 70W T6
Options and Accessories
C4CSW: S tem Kit – White (45° Swivel, 37" Long)
Provided with 5/8" dia. Stem and 5 1/2" Canopy.
Self-aligning swivel provides max. 45° vertical tilting.
Installs over 4" octagonal outlet box.
Stem can be cut to length on site.
9 3/4"

Labels

UL (Suitable for Wet Locations), CSA, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
C6CS-C6T6VM
9 3/4" (248 mm)
Wall- Mount
Ceramic MH
Ceramic MH
Type:
