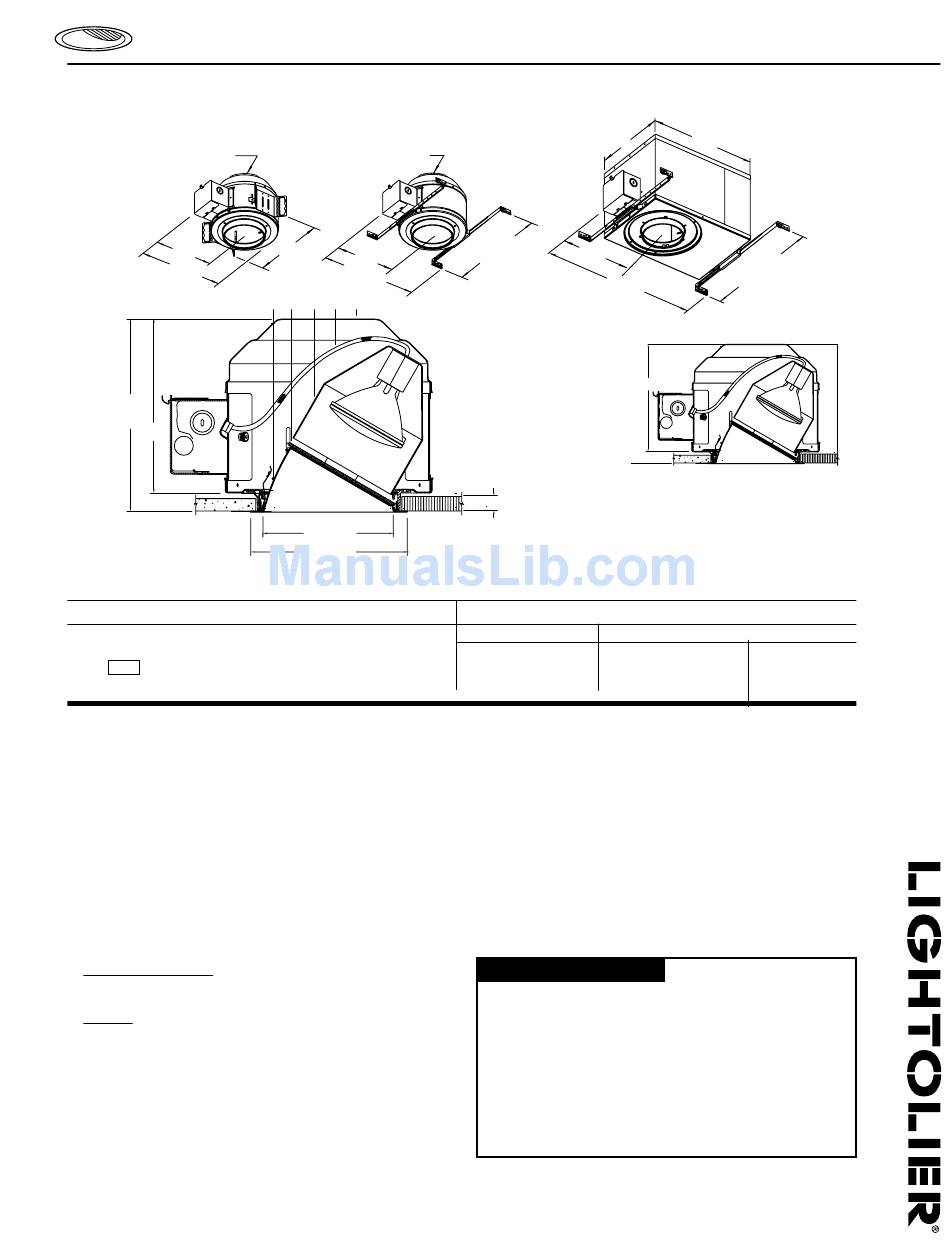

Lightolier Calculite C6P30L Specification

Calculite
®
Page 1 of 2
7 8
9 1/2" DIA.
7 3/4"
12 3/8" O.A.
8 3/4"min.*
9 1/4"max.
8"
* 8 3/4" min. is for up to 3/4" thick ceiling.
Ceiling Cutout: 6 11/16" Dia.
Reflector Trim
C6P30L CLW Specular Clear, White Flange
C6P30L CLP Specular Clear, Polished Flange
C6P30L
Add suffix. See options for other finishes.
Features
1. Aperture Cone: 16 ga. aluminum, 50° visual cutoff to lamp and lamp
image. Keyed to lampholder/kick reflector assembly to prevent incorrect
installation of cone. Available with painted white or polished flange.
Interchangeable with other Evolution™ 6" line voltage trims.
2. Kick Reflector: 16 ga. Alzak aluminum. Specular kick reflector with
®
directional spread lens distributes light smoothly for vertical surface wall
washing.
3. Directional Spread Lens: High temperature, tempered glass. Precisely
contoured to fit onto cone; replaceable.
4. Socket Harness: Medium base porcelain socket with nickel plated
screw shell, No. 18 SF-1 leads to keyed plug-in quick connector for power
connection to junction box.
5. Frame-In Kit: Compatible Frame-In Kits are listed above. See separate
Frame-In Kit specification sheets for details.
Non-IC and Non-IC AirSeal - Insulation must be kept 3" away from
®
fixture sides and wiring compartments and must not be placed above
fixture in a manner which will entrap heat.
IC-AirSeal - Fixture may be in direct contact with insulation.
®

Options and Accessories

Reflector Finishes
1
Clear: CL
Comfort Clear Diffuse: CCD
Champagne Bronze: CCZ
Gold: GD
White: WH
Black: Consult factory
1Specify desired flange
W White, P Polished
Evolution Incandescent Lensed Wall Washer
C6120
Non-IC
9 1/2" DIA.
13"
7 3/4"
14 3/8" O.A.
1 3 2 4 5
C6P30LCLW / C6120 or
5 5/8" Dia.
C6P30LCLW / C6A120
7 3/16" Dia.
C6A120
10"
®
Non-IC AirSeal
13 3/4" TO 24"
8 1/2"
Adjustment
(Mounting Bars
IIncluded)
20 1/4" O.A.
9 1/4"max.
1/2" to 1" Max. Ceiling Thk.
1 1/4" Max. Ceiling Thk.
Frame-In Kit
Non-IC Non-IC AirSeal
C6120 C6A120
75W PAR30 75W PAR30
(Short Neck) (Short Neck)
Labels
UL listed (suitable for damp locations), I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • C0507
C6P30L
6" Aperture PAR30 Reflector Trim
C6AIC
14 1/4"
IC AirSeal ®
13 3/4" TO 24"
Adjustment
(Mounting Bars
IIncluded)
C6P30LCLW / C6AIC
IC-AirSeal
® ®
C6AIC
50W PAR30
(Short Neck)
Type:
www.lightolier.com
