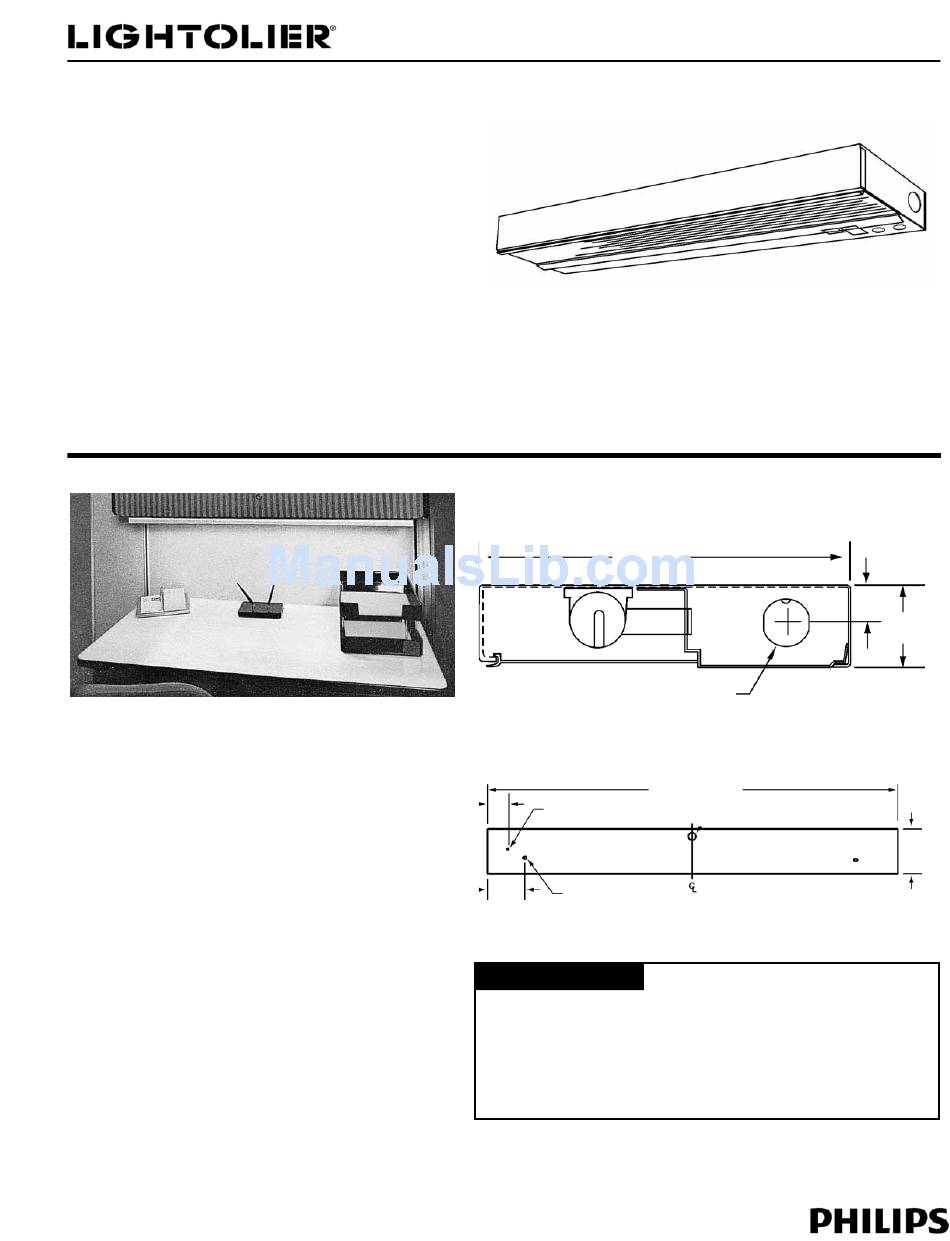

Lightolier TSF Series Specification

Page 1 of 2
Features
• 1-1/8" shallow depth.
• Three nominal lengths: 22", 34" and 46"
• Specification grade under shelf luminaire.
• Solid front design.
• Lens removable without tools for easy maintenance.
• 100% acrylic linear prismatic lens to obscure lamp image and
uniformly distribute light output
• Lamp T5, CRI=80, color temp 3500K , is standard and included.
• Paint after fabrication with white polyester paint finish.
• All electrical components mounted on an easily removable service tray.
• On/off rocker switch (included in supply pack) 120 volt use only.
• Universal voltage.
Features
Attractive, unobtrusive lighting
Lightolier is a Philips group brand
Task Lighting
Solid Front Under Shelf Fluorescent Luminaire
Dimensions
1-1/2"
.53" (5mm) Dia. K.O. (6)
(38mm)
3 Top/3 Back
2-3/8"
KEYHOLE K.O. (2)
(60mm)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
For Factory Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 a Philips Group
TSF Series
22", 34", 46" Length, 1 Lamp T5
5" (127mm)
5/8" (16mm) Dia. K.O.
22-3/4" (578mm)
34-1/2" (876mm)
46-1/4" (1175mm)
Type:
Section 3A/Folio H160-12
1/2"
(13mm)
1-1/8"
(29mm)
5"
(127mm)
07/08
