Summary of Contents for Lightolier CTS3_FLNG

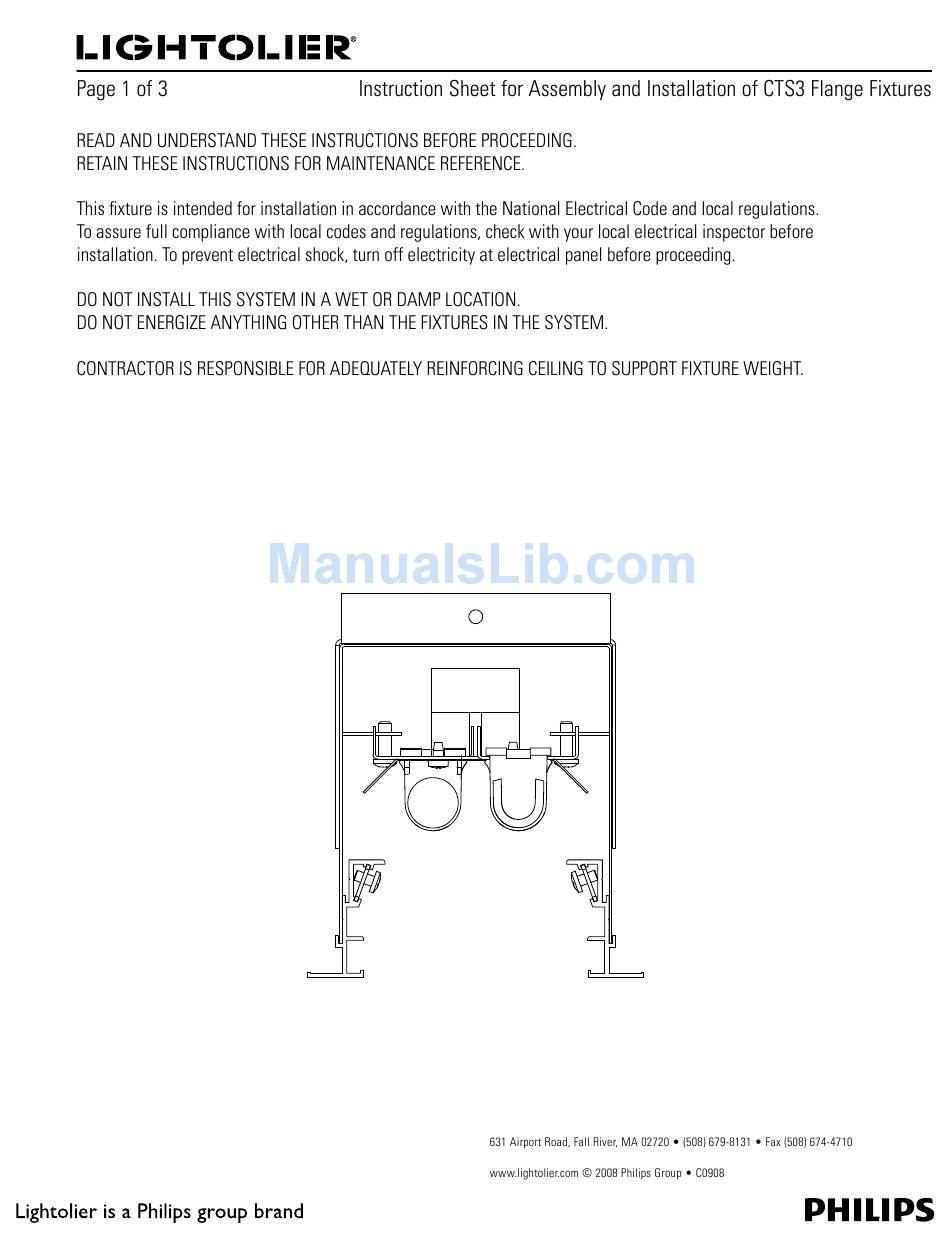

- Page 1 IS-CTS3_FLNG Lighting Systems NOTE: FIXTURES WERE DESIGNED TO BE INSTALLED PRIOR TO CEILING. We reserve the right to change details of design, materials and finish.
-
Page 2: Lighting Systems
IS-CTS3_FLNG Lighting Systems Step 1. Individual Installation Figure 1 Hang Fixture from Struc- ture Above. Make Sure Fixture is Leveled Length- wise and Widthwise. Figure 2 Figure 3 Provide Power to Fixture Install Diffuser Provide Through Access Plate and with Fixture. Lens or Test. -
Page 3: Lighting Systems
IS-CTS3_FLNG Lighting Systems Step 2. Row Installation End or Telescopic Access Plate Individual 1 or More Joiners Spline Aligner Starter Figure 4 Spline Aligner We reserve the right to change details of design, materials and finish.
