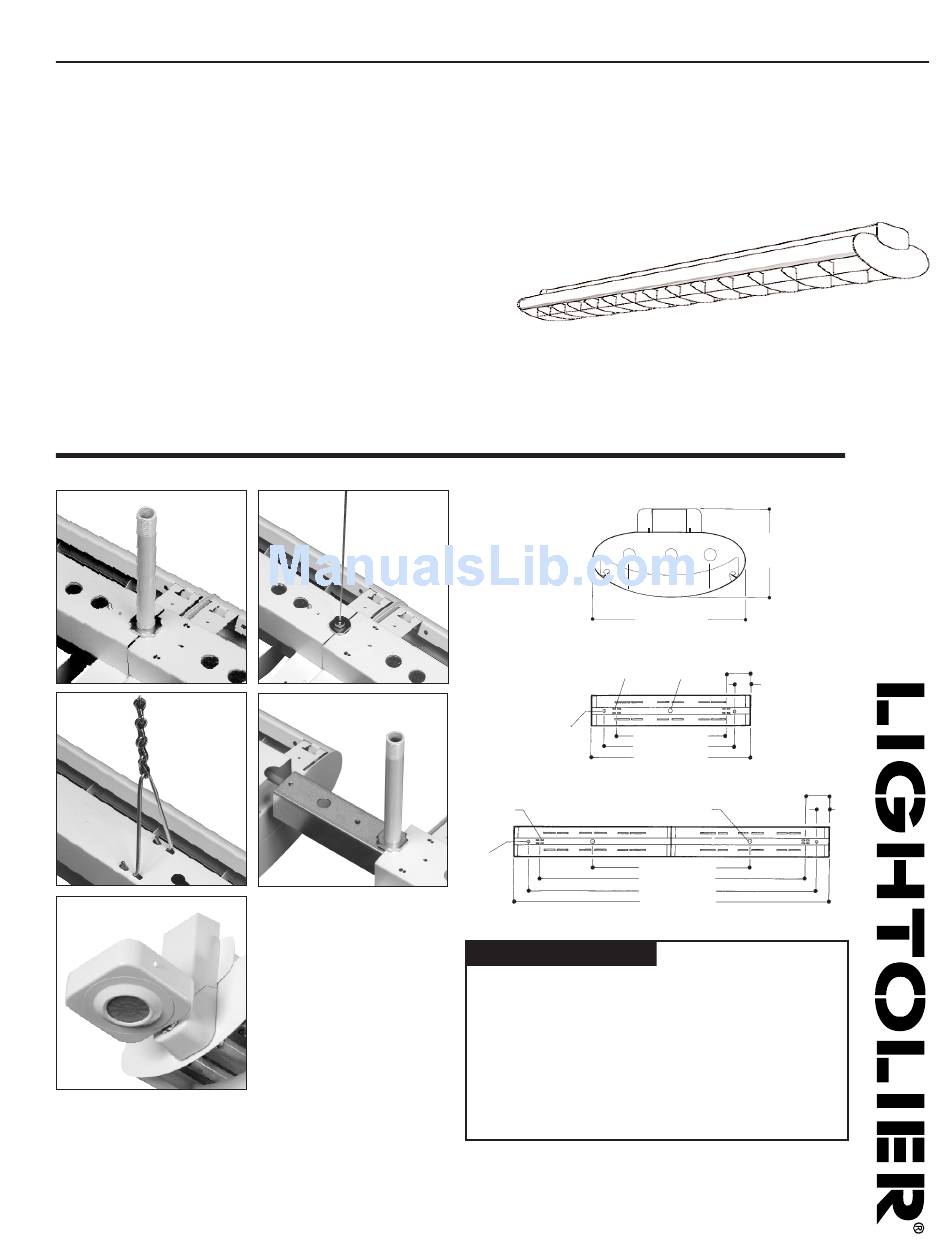

Lightolier Eye-QLB EYS442FX354 Specification

Page 1 of 2
Features
• Ideal for stores, schools, labs, warehouses.
• 55% downlight, 45% uplight.
• 80.0% efficient (3 lamp 54W T5). 80.2% efficient (3 lamp 32W T8).
• 1.5 spacing mounting ratio (3 lamp 54W T5).
• 1.4 spacing mounting ratio (3 lamp 32W T8).
• Can be pendant or surface mounted.
• 48" or 96" modular lengths.
• 20 gauge steel housing. 18 gauge steel ends.
• 22 gauge steel side reflectors.
• Flat white acrylic baked enamel, post painted.
• Louver can hinge from either side.
• Louver safety chain standard.
• Removeable upper end cap for thru wiring.
• Can be stem or cable mounted at fixture joints.
• K.O. in upper end cap for occupancy sensor.
• Heavy duty coupler available.
• Meets NYC Code requirements.
Mounting Methods
can be stem
mounted at
fixture joints
can be
suspended
with chain
hanger
sets
Catalog No.
AH5 CSP
optional
occupancy
sensor
see folio
OA60-10
1/06
48" Length 3 Lamp T5/T8, 96" Length 3 Lamp T5/T8 in Tandem
can be
cable
mounted
at fixture
joints
heavy duty coupler,
required for continuous
row mounting.
Catalog No.
EY COUPLER
Luminaire-Mounted Motion Sensor
360° coverage, up to 45 ft. mounting distance.
Field installed. Catalog Number: FHB360.
• Line voltage accepts 120 through 347 volt
applications.
• Uses passive infrared (PIR) technology
shielded by a fresnel lens; upon detection
of infrared energy levels, the sensor is
triggered and switches the light on.
• Light shuts off after a time delay unit that
is factory preset at 10 minutes, manually
adjustable from 30 sec. to 20 min. using
tool included.
• Mounts on either end using 7/8" knockouts
provided.
Eye-QLB
42 Cell Louver, 55% Downlight, 45% Uplight
Dimensions
S Hook
Slots (8)
11/16" Dia. K.O.
39-3/8" (999mm)
(2 Places)
41-3/4" (1059mm)
S Hook
Slots (8)
11/16" Dia.
K.O.
(2 Places)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
Lightolier
a Genlyte company
Technical Information: (978) 657-7600 • Fax (978) 658-0595
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 a Genlyte company
EYS442FX354
5-3/16"
(132mm)
8-15/16" (227mm)
4-3/8"
(111mm)
7/8" Dia. K.O.
3-1/8"
(81mm)
48" (1220mm)
4-3/8"
(111mm)
7/8" Dia. K.O.
(2 places)
48" (1220mm)
87-3/8" (2219mm)
89-3/4" (2279mm)
96" (2441mm)
Type:
www.lightolier.com
Section 5/Folio K60-35
3-1/8"
(81mm)
