Lightolier Lytespan 6320 Specification

Page 1 of 2
Ordering Information
Catalog No. Description of Lamps
6320 Housing Only = 75W R20; 75W-100W R30; 250W PAR38;
6322 150W PAR38 Cool Beam; 75W PAR16, 50W PAR20, 75W PAR30
Features
1. Lytespan Attachment Fitting: die-cast zinc alloy.
2. Pivot Mounting: tensioned with built-in stop, provides 90° vertical
adjustment.
3. Movable Brass Contact: extends for connection to 2nd circuit in Advent
Lytespan Track.
4. Lever: energizes unit.
5. Polarity Keyway
6. Thumbscrew: for lampholder adjustment.
Electrical
Porcelain socket, medium base, nickel plated screw shell.
No. 18 braided SF-1 leads.
Lightolier is a Philips group brand
Lytespan Track Lighting System
®
Finish
Matte White
Matte Black
Finish
All painted finishes baked enamel.
Labels
UL, I.B.E.W.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • C0408

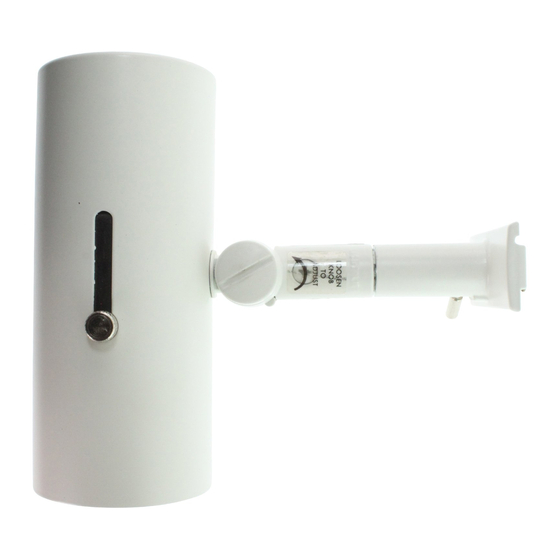

6320
Universal Lytespot
Mountings
All Lytespan Track Systems
Type:
®
