Lightolier Lytespan 22WW4 Specification

Page 1 of 2
7 7/16"
(189mm)
Ordering Information
Catalog No.
22WW4WH
22WW4BK
22WW4AL
Features
1. Track Attachment Fitting: Locking lever for mechanical/electrical
connection
2. Brass Contact: Extends for connection to second circuit
(Advent Lytespan track only)
3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation
4. Vertical Pivot: 0-90° vertical adjustment
5. Housing: Extruded aluminum
6. Lamp Cartridge: Allows easy side relamping without removal of
glass shield
7. Glass Shield: Tempered 1/8" glass. Meets or exceeds UL requirements
8. Socket: Nickel plated minican screw base
Finish
All Painted finishes are baked enamel.
Dimming
Fixture may be used on a track with a dimmer.
Consult dimmer manufacturer for correct dimmer selection.
Lightolier is a Philips group brand
Lytespan
1 1/16"
5"
(27mm)
(127mm)
(124mm)
5 3/8"
(136mm)
Finish Mounting
Matte White All Lytespan Track Systems.
Matte Black Does not mount on ProSpec Track.
Metallic Aluminum
Track Lighting System
®
1
4 7/8"
7
Lamps
120V Incandescent T4 mini can. (Clear Only)
150W Max.
CC-8 filament recommended
Accessories
Accessory Holder: None
Accessories: None
Lens:
None
Vizor: 22VZ4
Labels
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • 0208
22WW4

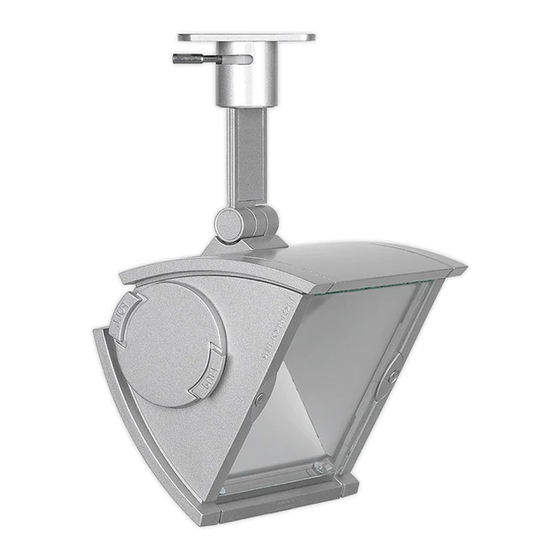

Alcyon™ T4 120V Wall Washer
2
3
4 5/16"
(109mm)
3 3/8"
(85mm)
3/16"
(4mm)
4
1 11/16"
(42mm)
5
6
Type:
