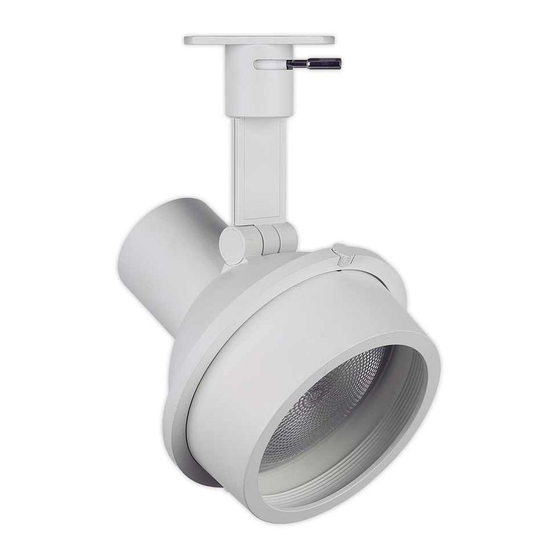

Lightolier Lytespan 22SS3 Specification

Page 1 of 2
Ordering Information
Catalog No. Finish
22SS3WH Matte White
22SS3BK Matte Black
22SS3AL Metallic Aluminum
Features
1. Track Attachment Fitting: Locking lever for mechanical/electrical
connection
2. Brass Contact: Extends for connection to second circuit
(Advent Lytespan track only)
3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation
4. Vertical Pivot: 0-90° vertical adjustment
5. Socket: Porcelain socket, medium base, nickel-plated screw shell
6. Housing: Die cast aluminum
7. Accessory Cartridge: Hinged and captive; retaining ring included.
Finish
All Painted finishes are baked enamel.
Dimming
Fixture may be used on a track with a dimmer.
Consult dimmer manufacturer for correct dimmer selection.
Lytespan
1 1/8"
(29mm)
1 5/8"
(41mm)
7 9/16"
(192mm)
4 15/16"
(125mm)
Mounting
All Lytespan Track Systems.
Does not mount on ProSpec Track.
® Track Lighting System
Alcyon
2 7/16"
(62mm)
1
3 1/6"
(78mm)
7
5 1/4"
(133mm)
Lamps
Short neck PAR30 75W Max.
Accessories
Accessory Holder: Integral
Accessories: Accepts two total
(1 lens + 1 louver or 2 lenses)
Lens: AF3, ADF3. Not compatible with AF3IR
Louver: AL3HC
Labels
UL, cUL
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • B0204
22SS3
™ Enclosed Step Spot PAR30
2
3
3/16"
(4mm)
4
2"
(51mm)
5
6
Type:
www.lightolier.com
