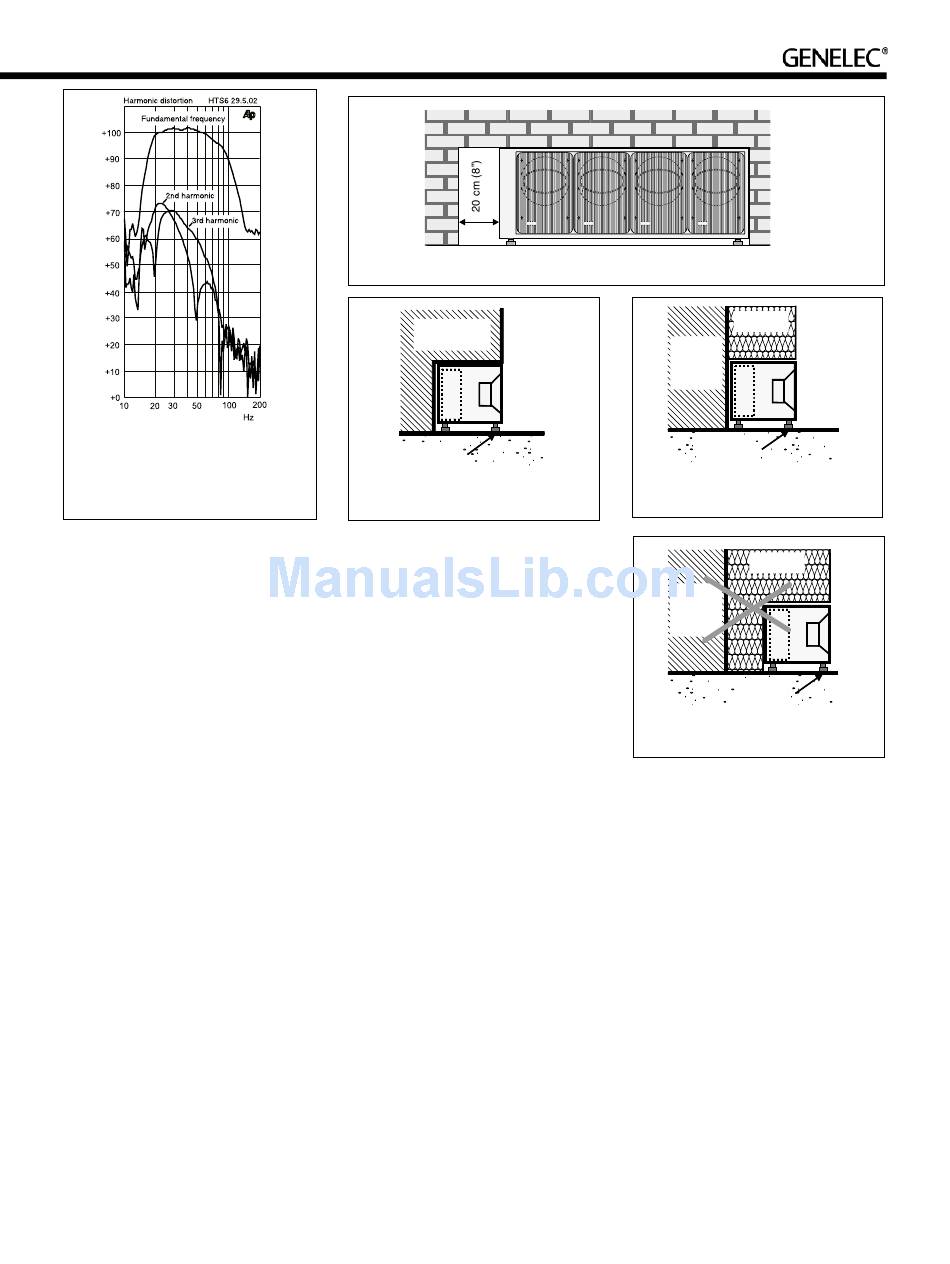

Figure 3. The curves above show the
harmonic distortion analysis of the HTS6
in free field. In half space the SPL will be 6
dB higher.
Automatic protection circuits
The HTS6 is equipped with protection circuits
against speaker driver thermal overload and
amplifier overheating. The protection system
resets automatically so the user only has to
turn the input level down to ensure that it
does not reactivate.

Safety considerations

The HTS6 subwoofer has been designed in
accordance with international safety stand-
ards. However, to ensure safe operation and
maintain the unit in safe operating condition,
the following warnings and cautions must be
observed:
•
Do not expose the subwoofer to water
or moisture. Do not place any objects
filled with liquid, such as vases on
the subwoofer or near it.
•
Servicing and adjustment must only
be performed by qualified
service personnel.
•
Opening the connector panel is
strictly prohibited except by
qualified service personnel.
GENELEC
Figure 4. Flush mounting the subwoofer. Note the clearance needed on the reflex port side.
HEAVY WOODEN
OR CONCRETE
WALL
VIBRATION
ISOLATORS
f ~ 2-8 Hz
Figure 5. Flush mounting the subwoofer in a
non-absorbing wall.
•
Always use a mains power connection
with protective earth. Failing to do
this may lead to personal injury.
•
Note that the amplifier is not completely
disconnected from the AC mains
service unless the mains power cord is
removed from the amplifier or the
mains outlet
Warning!
This equipment is capable of delivering sound
pressure levels in excess of 85 dB, which
may cause permanent hearing damage.

Maintenance

No user serviceable parts are inside the
amplifier unit. Any maintenance of the unit
must only be performed by qualified service
personnel.
Guarantee
This product is supplied with a two year guar-
antee against manufacturing faults or defects
that might affect the performance of the unit.
Refer to supplier for full sales and guarantee
terms.
GENELEC GENELEC GENELEC
ABSORBING
MATERIAL
HEAVY
WOODEN
OR
CONCRETE
WALL
VIBRATION
ISOLATORS
f ~ 2-8 Hz
Figure 6. Correct flush mounting in a semi-
absorbing wall.
ABSORBING
MATERIAL
HEAVY
WOODEN
OR
CONCRETE
WALL
VIBRATION
ISOLATORS
f ~ 2-8 Hz
Figure 7.Incorrect flush mounting in a semi-
absorbing wall.
