Genelec 5040A Quick Setup Manual

RCA
MINIJACK
PRE OUT
PREAMPLIFIER
LINE OUT
PRE OUT
PREAMPLIFIER
LINE OUT
STEP 1
ON
OFF
3 4
Connect a loudspeaker to
•
the 'CENTER' output
of the subwoofer and feed
an 85 Hz test signal to the
'CENTER' input.

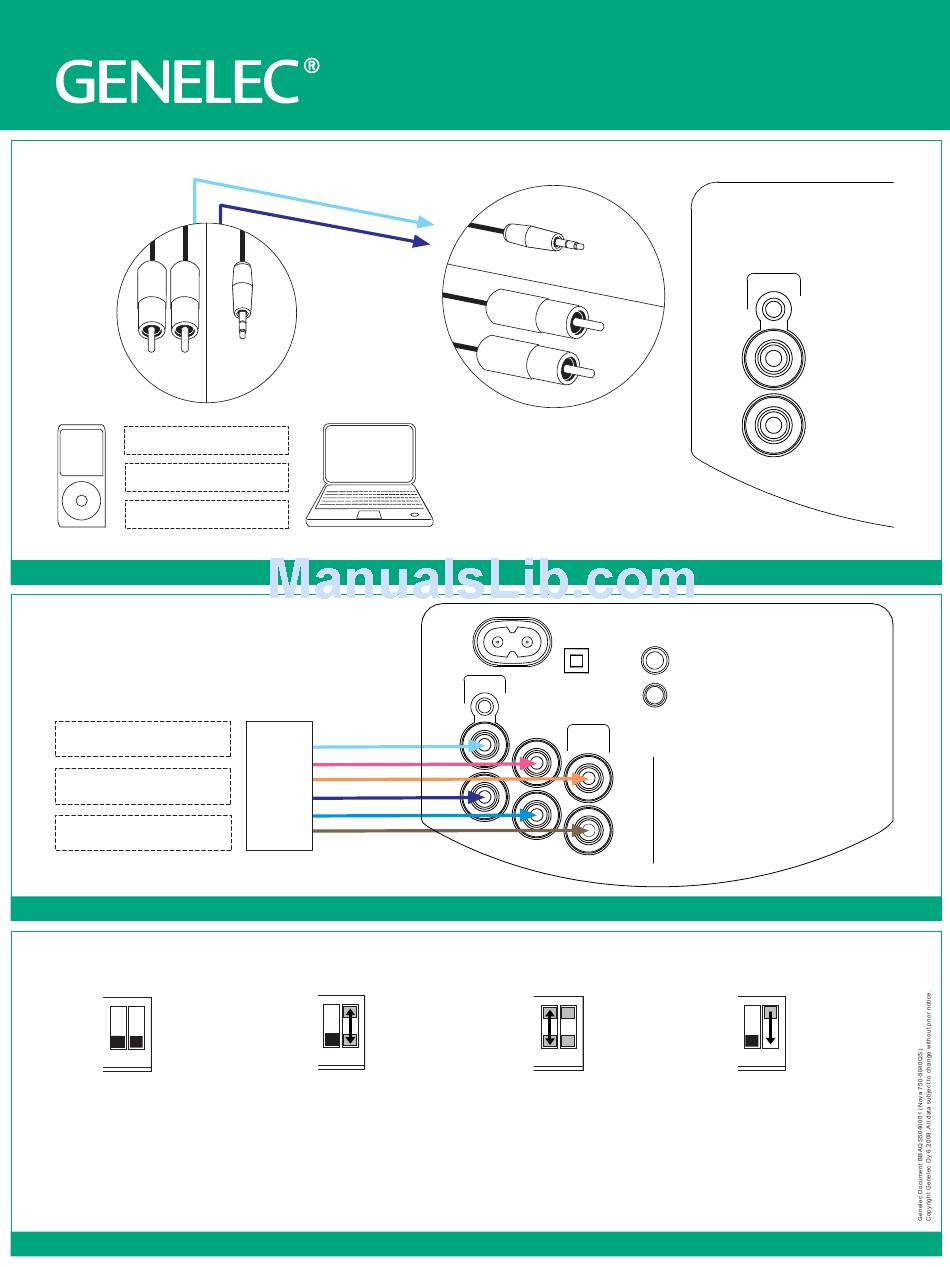

Stereo Inputs – Source Connection
L
LFE
RL
R
C
RR
Multichannel Inputs – Source Connection
STEP 2
ON
OFF
3 4
Toggle the -180° phase
•
switch 'ON' and 'OFF' and
set it to the position which
gives the lowest sound level
at the listening position.

Phase Adjustments

Quick setup guide
MINIJACK
RCA
MAINS INPUT
SYSTEM
50 / 60 Hz VOLUME
CONTROL
70 W 230 V~
FRONT
STEREO
IN
L
POWER
LFE
REAR
L
IN
R
CENTER
R
STEP 3
ON
OFF
3 4
Next toggle the -90° phase
•
switch 'ON' and 'OFF', and
again set it to the position
which gives the lowest
sound level.

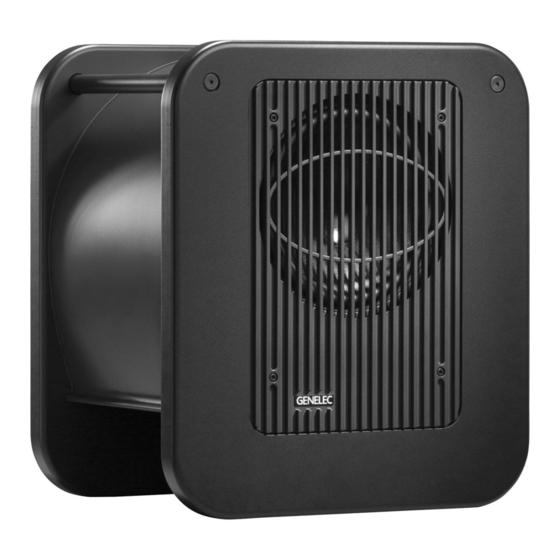

5040A
FRONT
STEREO
IN
L
R
STEP 4
ON
OFF
3 4
Finally, set the -180° phase
•
switch to the opposite
setting.
