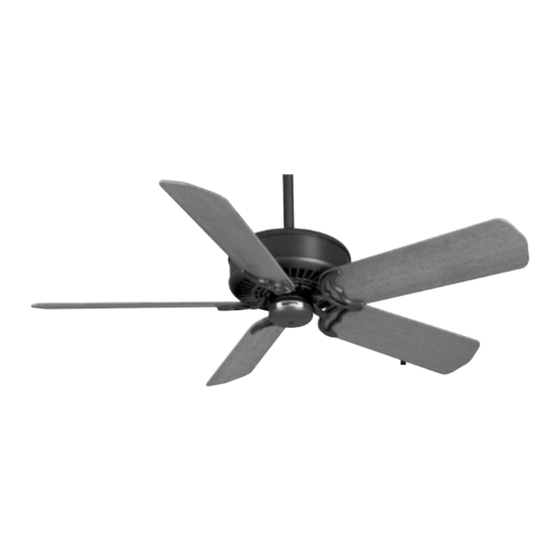

Casablanca Panama Halo Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
mOUNTINg RECOmmENDaTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
faN INSTaLLaTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CONTROL fEaTURES:
4 SpEED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TROUbLEShOOTINg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the product
and proper installation; therefore, before attempting to install and operate your Casablanca fan, read this
owner's manual completely and carefully. Retain this manual for future reference.
CAUTIon: To avoid possible electrical shock, make certain that electricity is turned
off at the circuit breaker or fuse box before attempting any installation procedure.
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for
ceiling fan installations, if it is not, a new box must be installed. Casablanca extension poles are available for
sloped or high ceiling installations.
• This ceiling fan requires a grounded electrical supply of 120 VAC, 60 Hz and a minimum 15 amp circuit. The
maximum current requirement for the fan with light fixture is 3.8 amps. The fan uses about 1 amp or 100 watts.
Maximum light current is 2.8 amps or 340 watts of lighting.
• Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy
hatch, make sure all wires are within the canopy and that no wires are being pinched.
For best performance and for your warranty to be valid,
use only genuine Casablanca blades, light fixtures, and accessories.
• The blades in each pack are matched for equal
weight to assure smooth fan operation. If
more than one fan is being installed, be careful
not to mix blades from different cartons.
• Inspect the contents of your carton for possible
shipping or handling damage and report any
such damage directly to your authorized
Casablanca dealer.
• It is always a good idea to have an assistant to
help with the installation.
• When cleaning, painting, or working near
your fan, be very careful of the fan and blades.
Always turn the power OFF to the ceiling fan
before servicing it, working on it, or replacing
light bulbs.
• Never insert anything into the path of the fan
blades while the fan is in operation.
• Never install a fan over a pool or spa.
• Never operate a fan that has been damaged in
any way. Contact Casablanca Fan Company
by calling toll free 1-888-227-2178, or contact
your local authorized Casablanca dealer for
assistance in obtaining service.
CONTENTS
READ AND SAVE THESE INSTRUCTIONS

SAFETY FIRST

BEFORE YOU START
SAFE USE
fUSE BoX
(REmovE fUSE foR ThE
CIRCUIT yoU wIll BE
woRKIng on)
CIRCUIT BREAKER
(TRIp BREAKER foR ThE
CIRCUIT yoU wIll BE
woRKIng on)
pN 6643040
18"
aT1108
70"
84"
1

Advertisement

loading

Related Manuals for Casablanca Panama Halo

Summary of Contents for Casablanca Panama Halo

  • Page 1: Safety First

    • Never install a fan over a pool or spa. • Never operate a fan that has been damaged in any way. Contact Casablanca Fan Company by calling toll free 1-888-227-2178, or contact your local authorized Casablanca dealer for assistance in obtaining service.
  • Page 2 MOUNTING RECOMMENDATIONS Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air circulation, and fan size are all important factors to consider before installation. Location Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mounting recommendations as you decide where to install your Casablanca fan.

  • Page 3: Important Safety Information

    ® anama INSTALLATION INSTRUCTIONS Unpacking: Before assembling and installing your ceiling fan, remove all parts from the shipping cartons and check them against the parts listed here. Before discarding packaging material, be certain that all parts have been removed. GETTING STARTED Carton Contents The fan carton contains the fan body, warranty card, owner’s manual, and all the parts neccessary ( except blades) to assemble and install your Casablanca ceiling fan. These parts are shown at the start of each installation section. before you start, go through thie Owner’s manulas...
  • Page 4 crossbar mounting bracket installation JOIST note: After removing the old fixture, check the outlet box to insure that it is supported by a joist or beam across its upper surface. If not, a 2” x 4” stud must be installed. Step 1.
  • Page 5 ® anama hANGING ThE FAN Step 4. To hang the fan body in the canopy, hold the fan body firmly and insert the ball into the canopy opening. Check that no wires were pinched. Rotate the fan body until the slot in the nylon ball fits into the pin opposite the canopy opening. BALL noTE: Independent control of the light fixture using a W-81 re- quires an additional power wire SLOT run from the wall switch to the...
  • Page 6 BLADE hOLDER & BLADE Step 8. BLADE HOLDER SCREW BLADE SCREW (2 pER BLADE HOLDER) Attach the blades to the blade holders (3 pER BLADE) with the three blade screws and felt washers provided for each blade. Hand tighten securely. FELT WASHER (3 pER BLADE) Install the assembled blade and blade holder to the flywheel (round holes)
  • Page 7 4-SPEED 4 - SPEED OPERATION Pull-chain switches on the fan control the fan and lights. Using the fan control pull-chain switch: Fan off OpTIONAL LIGHT pULL FAN & SpEED CONTROL at start. CHAIN SWITCH pULL CHAIN SWITCH First pull: fan ON, High speed Second pull: Medium speed Third pull: Medium Low speed Fourth pull: Low speed Fifth pull: Fan OFF The sequence of Light pull chain as follows: Light off at Start First pull: Up Light...
  • Page 8 4 - SPEED OPTIONAL WALL CONTROL W-81 The W-81 wall control provides separate control of fan and light with two separate knobs from a convenient wall location. The W-81 is designed to replace a standard wall switch and wall boxes with a depth of 2” or greater. Requires two hot leads from wall box to ceiling wiring box. To install a W-81 wall control in place of an existing wall switch, follow the instructions on the W-81 package.
  • Page 9 ® anama TROUBLEShOOTING BeFOre reqUeSTING ServICe: Please follow this troubleshooting guide before contacting your dealer for assistance. Caring for Finishes: For cleaning, a soft brush or lint-free Never Lubricate this Fan! cloth should be used to prevent scratching the finish. A vacuum The precision motor at the heart of your Airflow fan features cleaner brush nozzle can remove heavier dust. Surface smudges sealed bearings that are lubricated for life. Do not attempt to or an accumulation of dirt and dust can easily be removed by oil the motor. using a mild detergent and slightly dampened soft cloth. An antistatic agent may be used, but never use abrasive cleaning Changing Light Bulbs agents. These will damage the finish. Painted and high-gloss...
  • Page 10 Product SPecificationS XTR200 ® x 20mm Model Name: Panama® Halo Motor: Model Number: 66HXXF Blade Span: 42" or 50" Blade Iron Pitch: 20° No. of Blades: Dimensions: A = 10.75" Technology: 4-Speed B = 12.46" C = 3" NOTE: Dimension B Airflow*: 6,480 cfm includes light fixture...
